Diagram 0140-7d

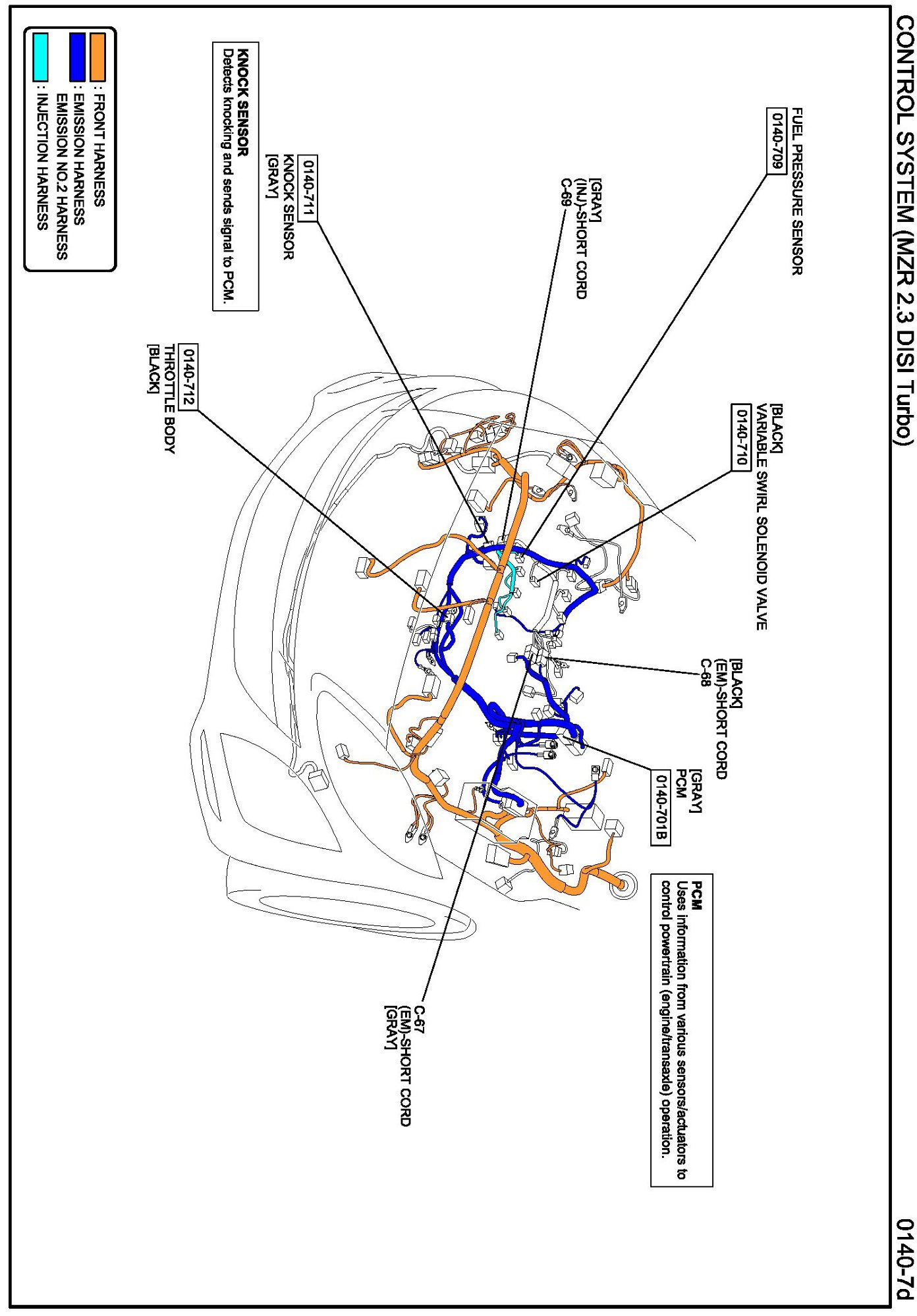

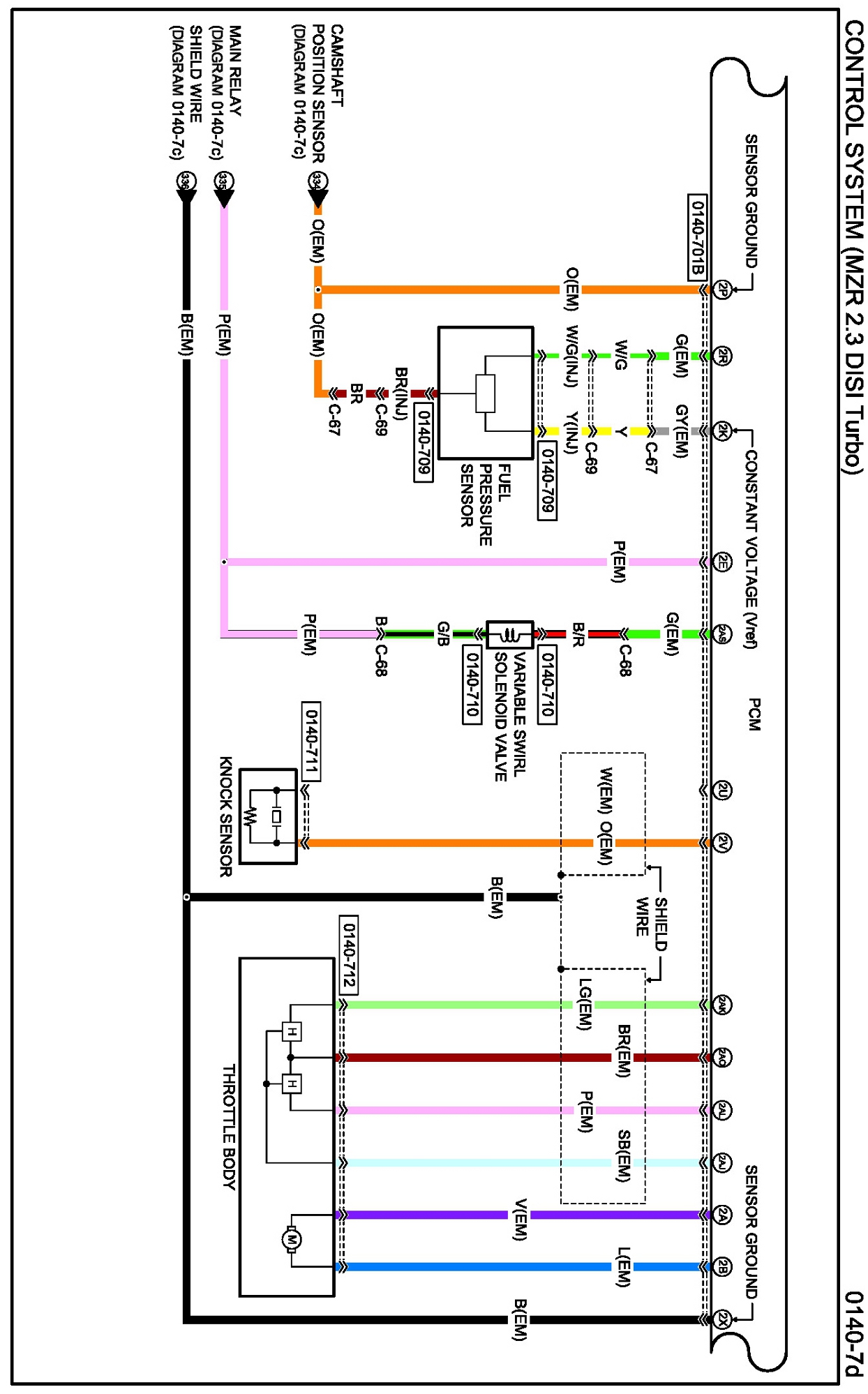

Diagram 0140-7d:

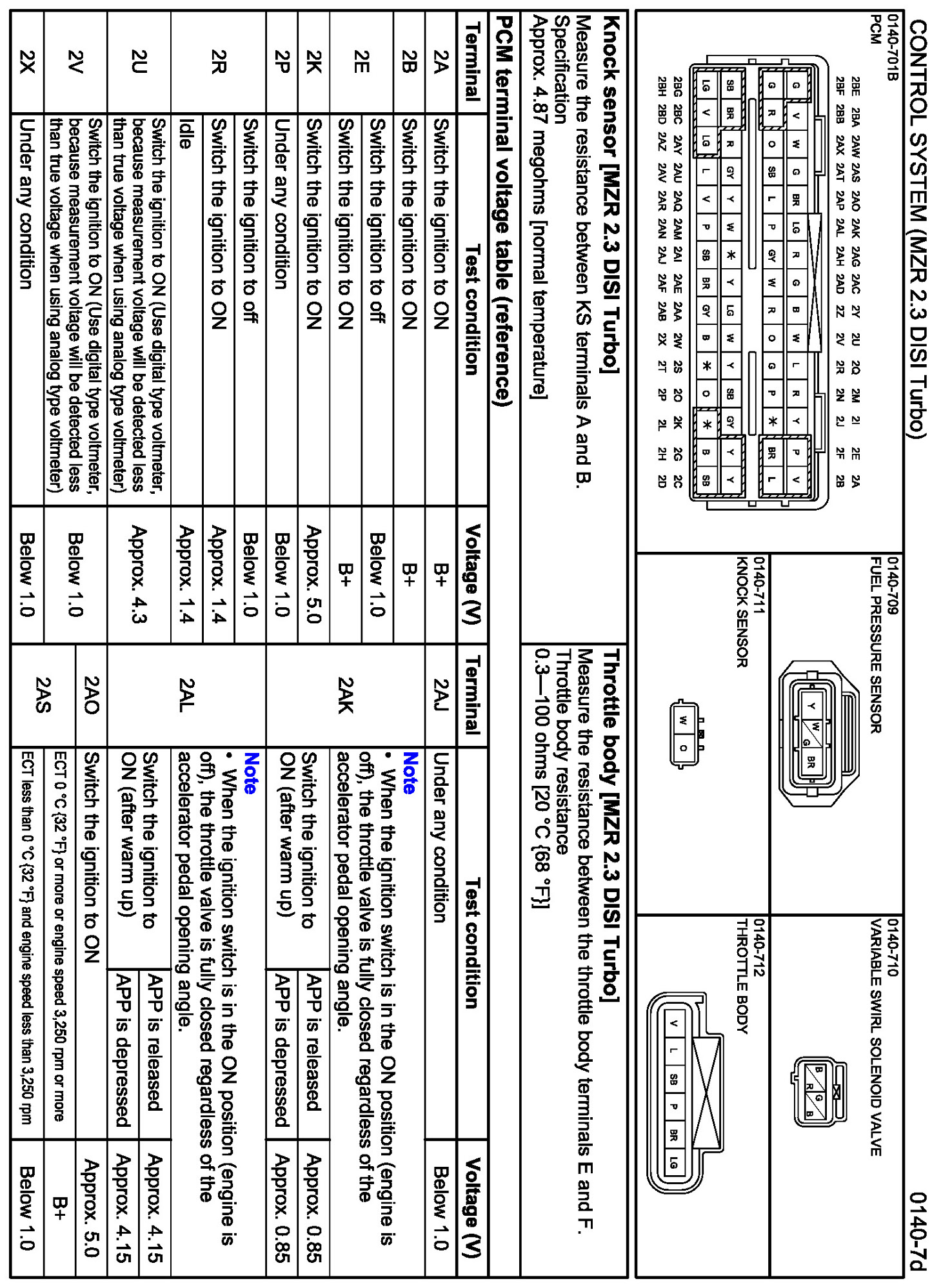

Connectors 0140-7d:

Routing View 0140-7d:

Next Diagram Diagram 0140-7e

Previous Diagram Diagram 0140-7c


Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
