Symptom Troubleshooting Chart
Symptom Troubleshooting Chart

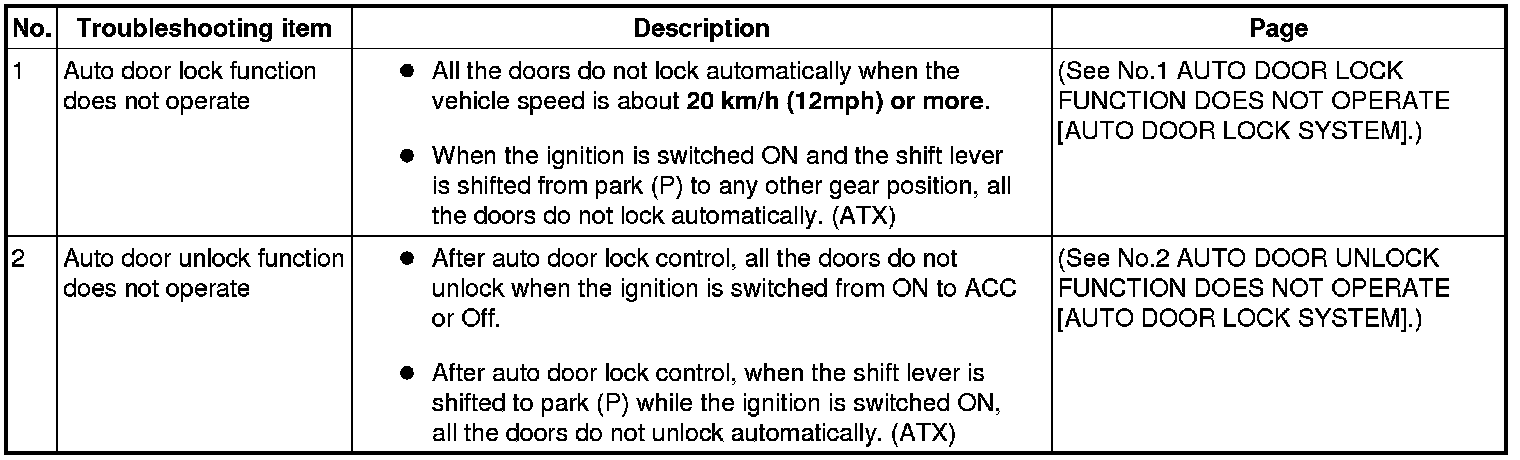

SYMPTOM TROUBLESHOOTING CHART [AUTO DOOR LOCK SYSTEM]
