Front Door Limiter: Service and Repair

FRONT DOOR CHECKER REMOVAL/INSTALLATION

1. Fully close the front door glass.

2. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

3. Remove the inner garnish. Inner Garnish Removal/Installation

4. Remove the front door trim. Front Door Trim Removal/Installation

5. Remove the front door speaker. Front Door Speaker Removal/Installation

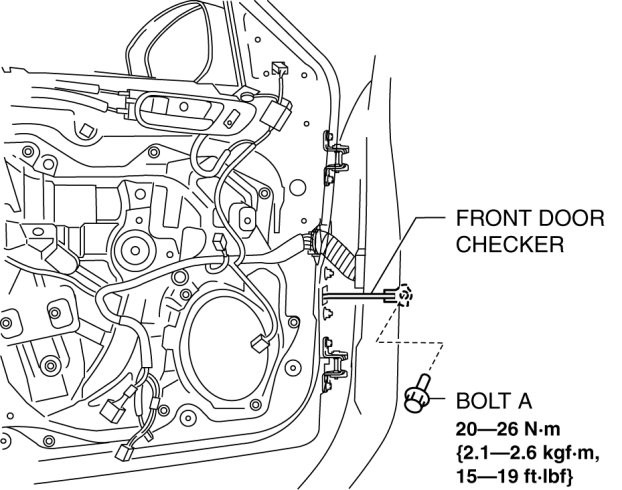

6. Remove the bolt A.

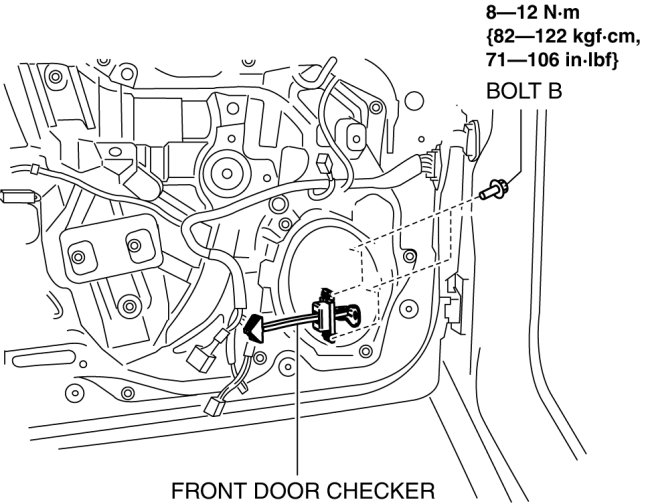

7. Remove the bolts B.






8. Pull out the front door checker from the front speaker installation hole.

9. Install in the reverse order of removal.
