Windshield Washer Nozzle Removal/Installation

WINDSHIELD WASHER NOZZLE REMOVAL/INSTALLATION

1. Remove the following parts:
a. Windshield wiper arm and blade Windshield Wiper Arm And Blade Removal/Installation

b. Front fender molding Cowl Grille Removal/Installation

c. Cowl grille Cowl Grille Removal/Installation

2. Remove the windshield washer hose from the windshield washer nozzle.

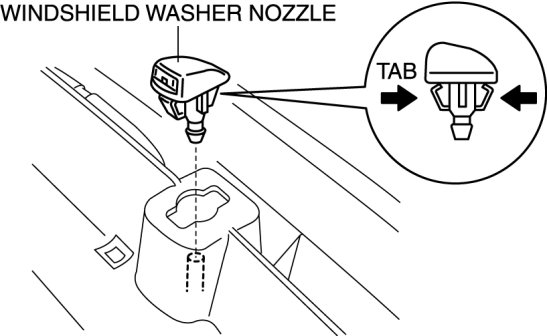

3. Squeeze the tabs of the windshield washer nozzle.

4. Pull the windshield washer nozzle out to remove it.






5. Install in the reverse order of removal.
