Rear Door Quarter Glass Removal/Installation

REAR DOOR QUARTER GLASS REMOVAL/INSTALLATION

1. Fully lower the rear door glass.

2. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

3. Remove the rear door trim. Rear Door Trim Removal/Installation

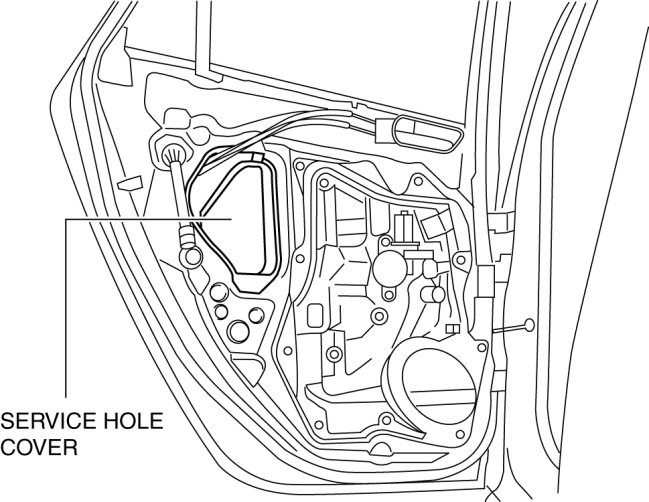

4. Remove the service hole cover.

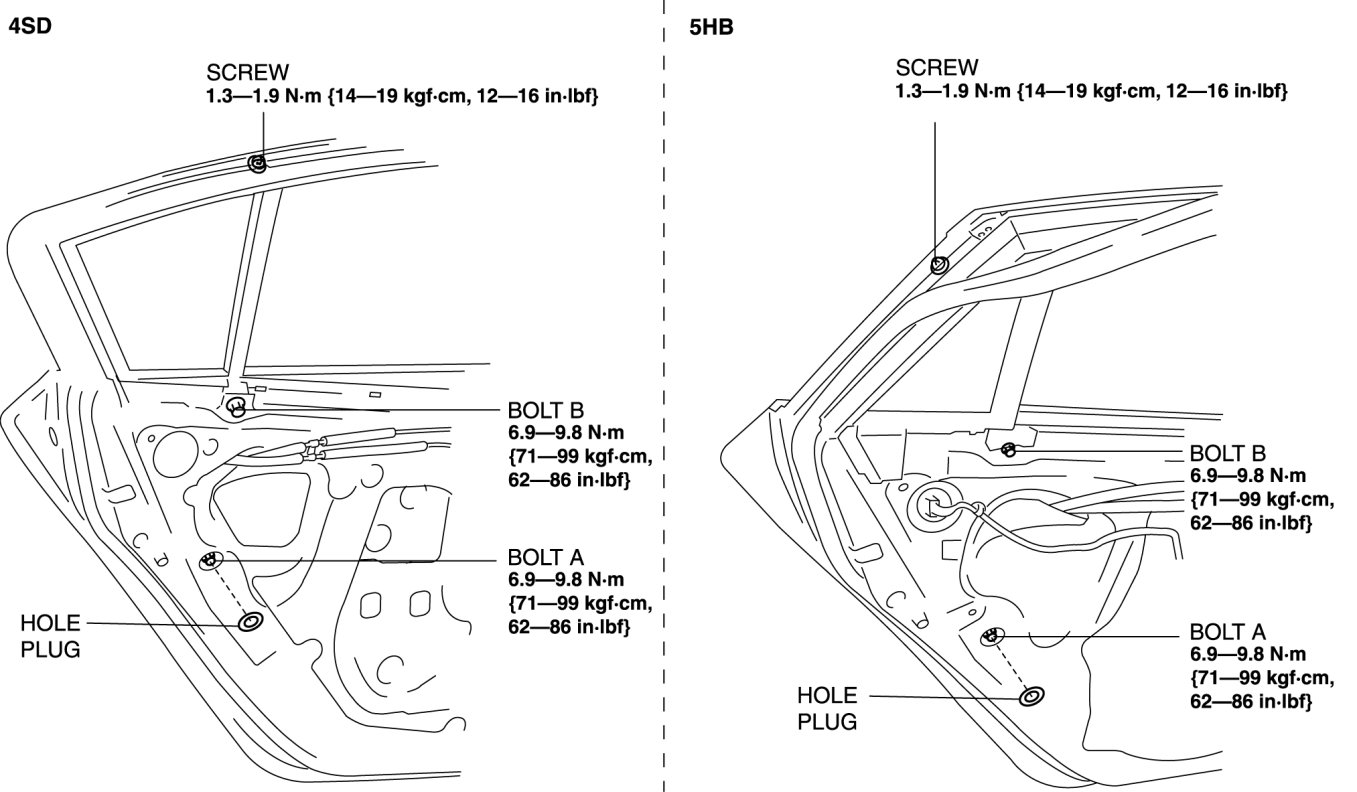

5. Remove the hole plug.






6. Remove the screw.

7. Remove the bolt A and B.

8. Remove the rear door glass guide.

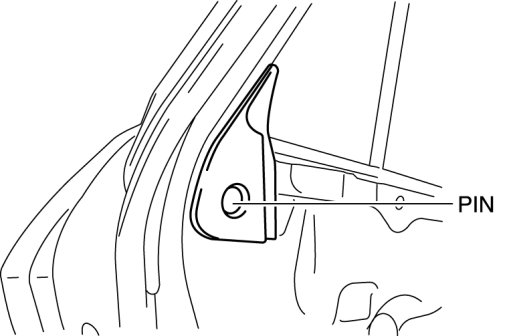

9. Remove the pin. (5HB)

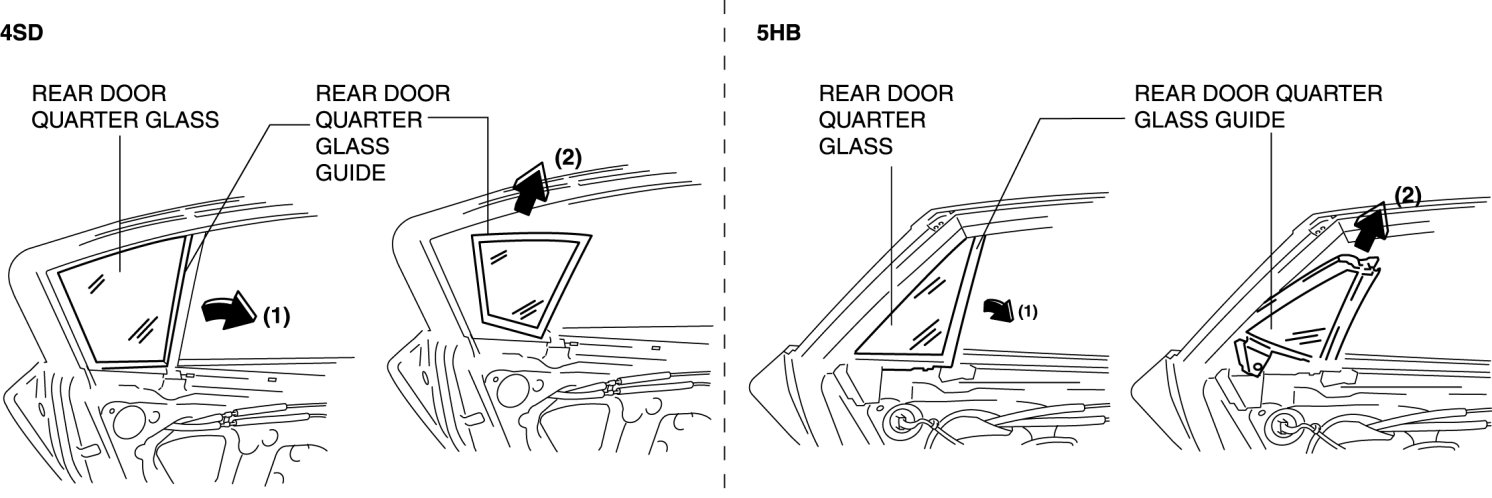

10. Slide the rear door quarter glass in the direction of the arrow (1) shown in the figure.






11. Remove the rear door quarter glass and rear door quarter glass guide as a single unit in the direction of the arrow (2) shown in the figure.

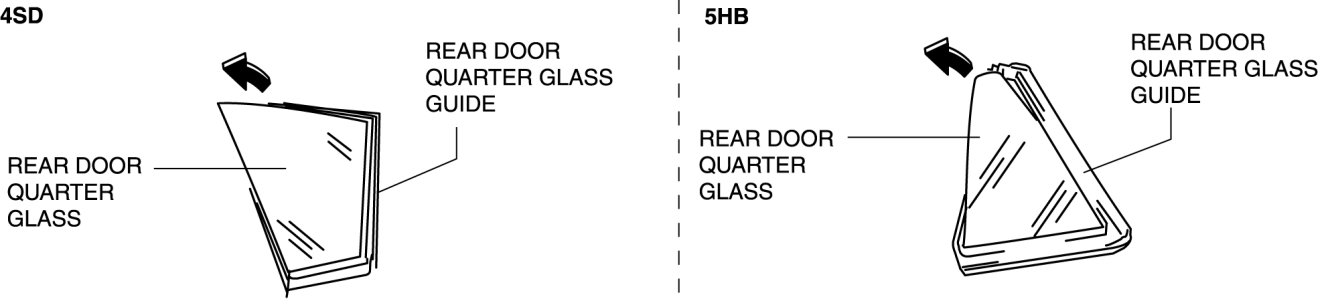

12. Remove the rear door quarter glass from the rear door quarter glass guide.






13. Install in the reverse order of removal.
