No. 6 Door Glass Reverses Even Though The Glass Does Not Encounter A Foreign Object While It Is Moving Up In Automatic Mode

No.6 DOOR GLASS REVERSES EVEN THOUGH THE GLASS DOES NOT ENCOUNTER A FOREIGN OBJECT WHILE IT IS MOVING UP IN AUTOMATIC MODE [POWER WINDOW SYSTEM]

NOTE:
- Perform the following inspection for the power window system component parts of windows where the door glass reverses even though the glass does not encounter a foreign object while it is moving up in automatic mode.

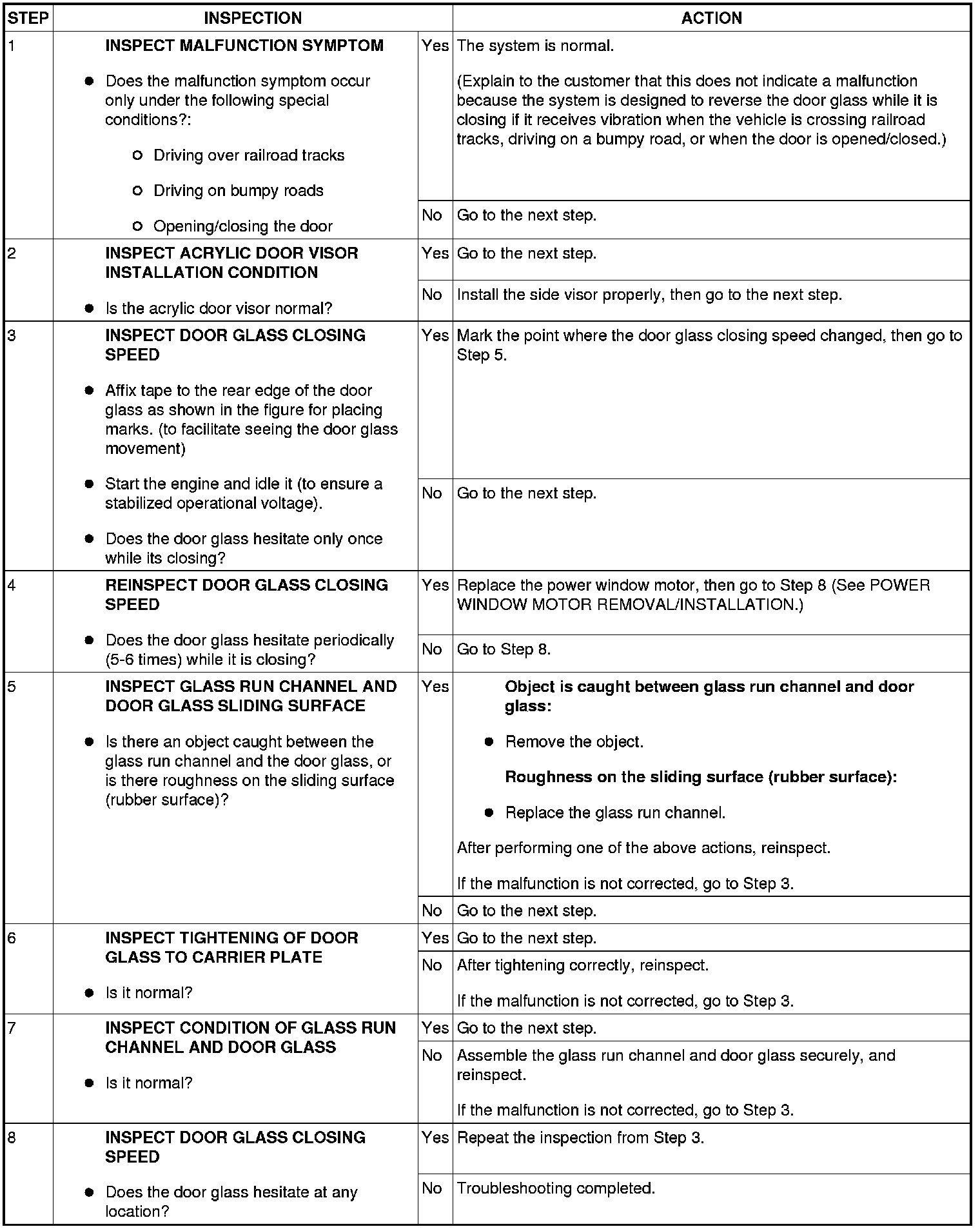

Diagnostic procedure
