No. 5 All Power Windows Are Inoperative
No. 5 All Power Windows Are Inoperative

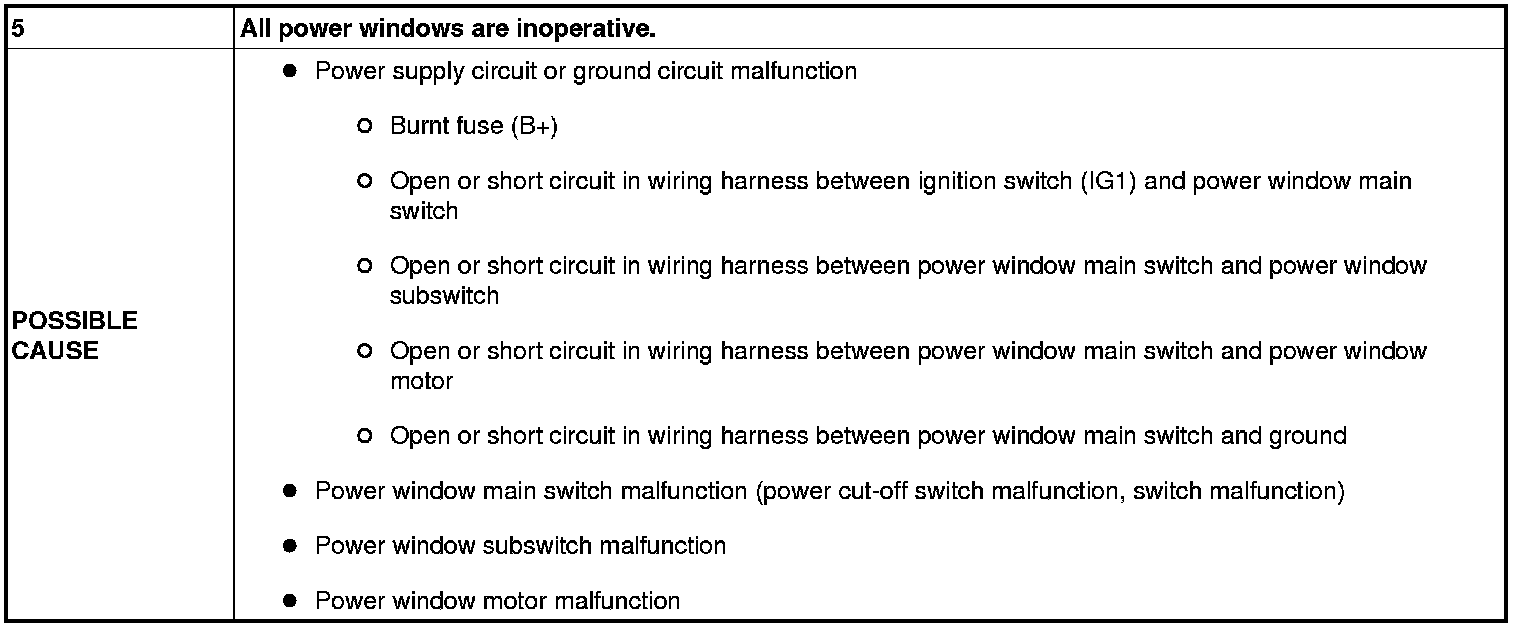

No.5 ALL POWER WINDOWS ARE INOPERATIVE [POWER WINDOW SYSTEM]

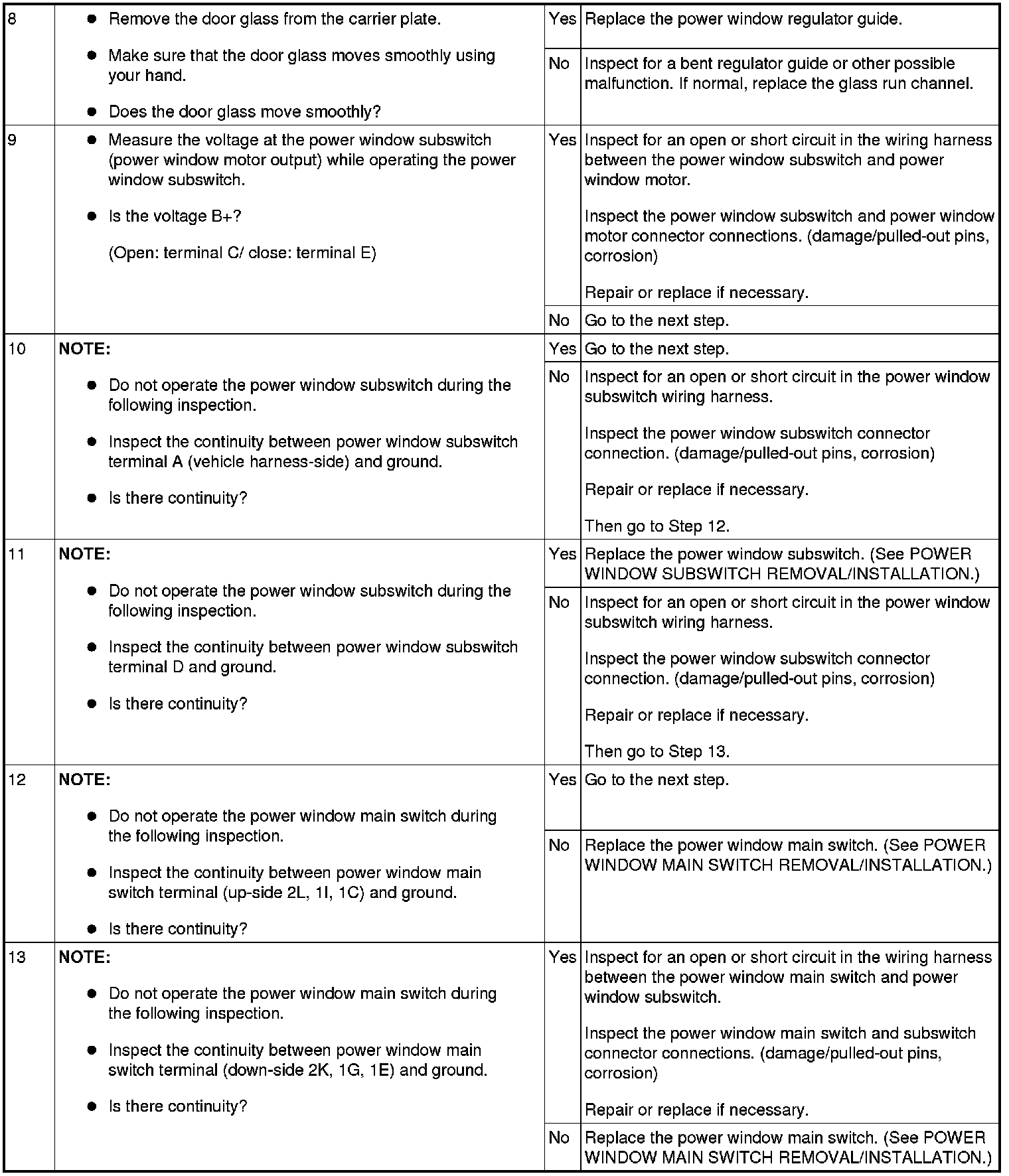

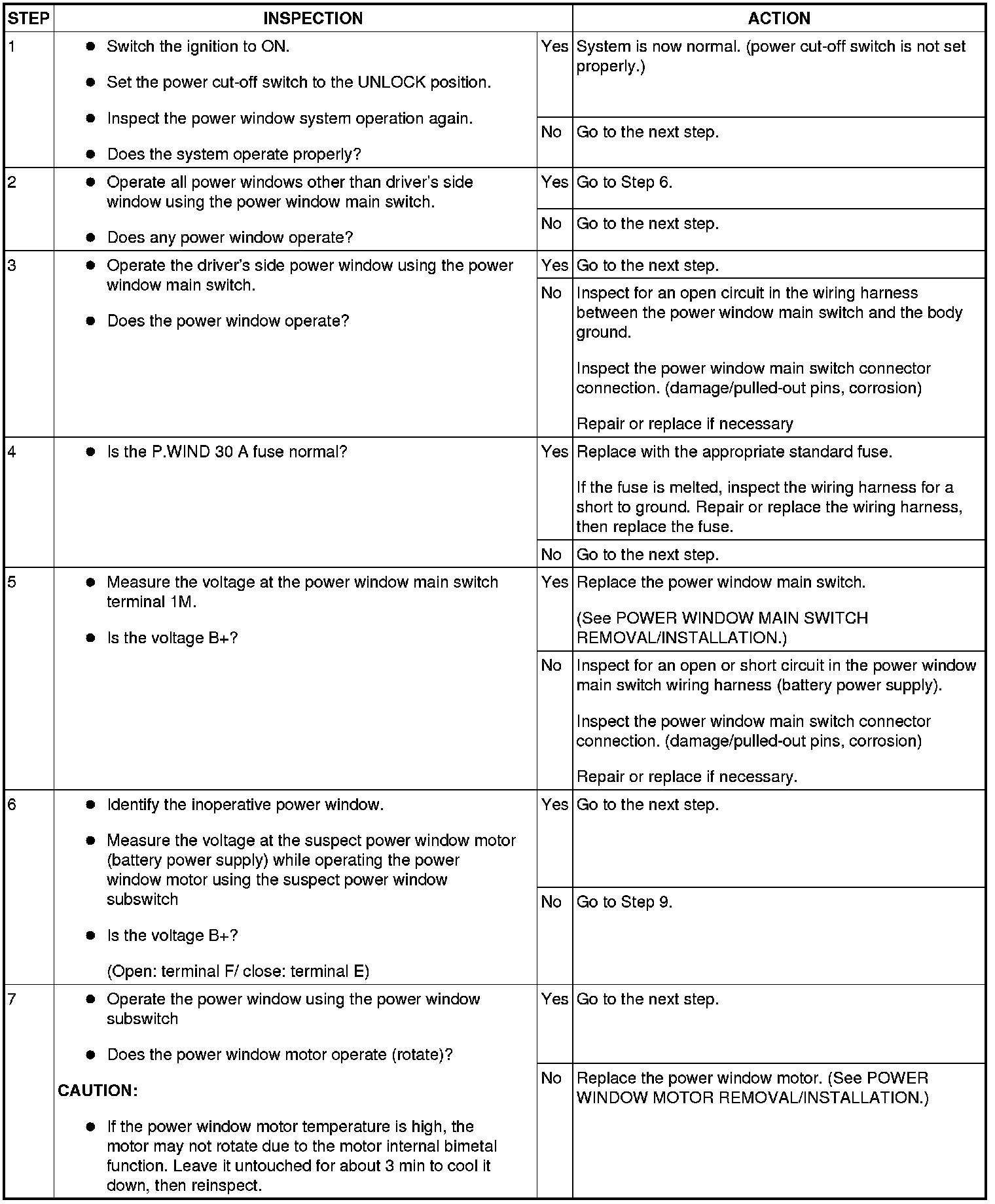

Diagnostic procedure
