Home >> Mazda >> 2012 >> 3 L4-2.0L (MZR) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No. 4 All Power Windows Other Than Driver's Side Do Not Operate Using The Power Window Main Switch

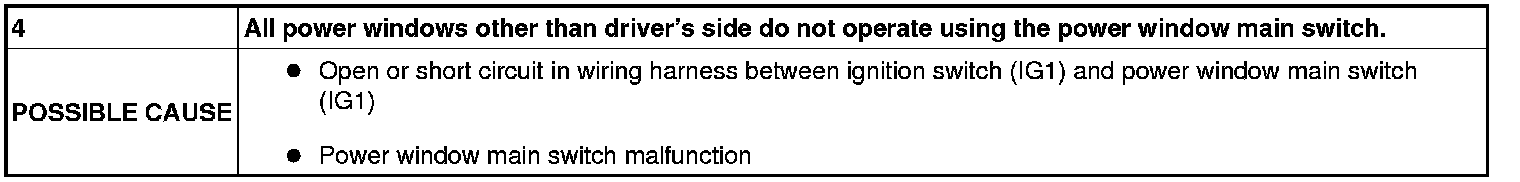

No. 4 All Power Windows Other Than Driver's Side Do Not Operate Using The Power Window Main Switch





No.4 ALL POWER WINDOWS OTHER THAN DRIVER'S SIDE DO NOT OPERATE USING THE POWER WINDOW MAIN SWITCH [POWER WINDOW SYSTEM]

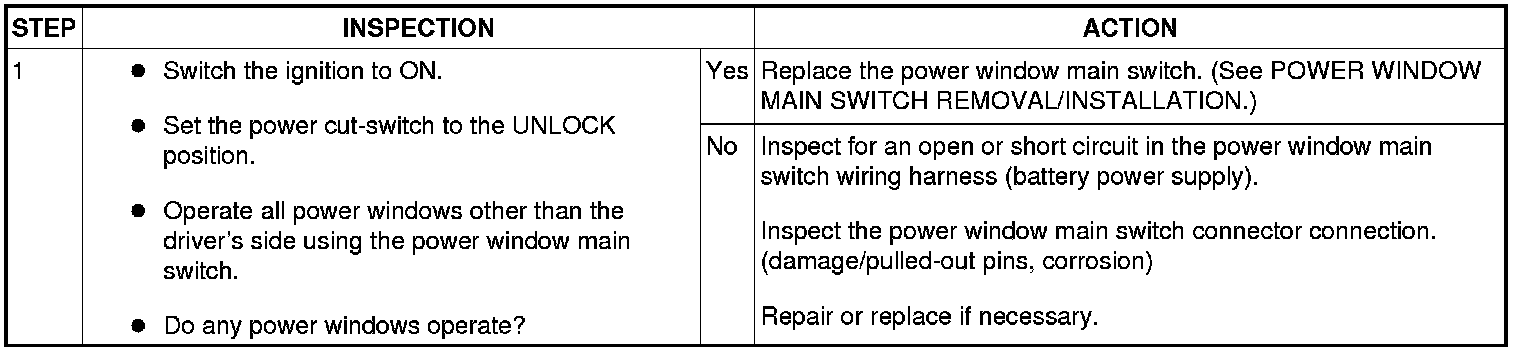

Diagnostic procedure
