Manual Transaxle Shift Mechanism Removal/Installation [G66M-R]

MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G66M-R]

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the battery component. (ex: battery, battery tray and PCM component) Removal and Replacement

4. Remove the air cleaner component. Service and Repair

5. Remove the aerodynamic under cover NO.2. Aerodynamic Under Cover No. 2 Removal/Installation

6. Remove the tunnel member (rear). Testing and Inspection

7. Remove the upper panel. Upper Panel Removal/Installation

8. Remove the shift lever knob.






9. Remove the shift panel. Shift Panel Removal/Installation

10. Remove the side wall. Side Wall Removal/Installation

11. Remove the console. Console Removal/Installation

12. Detach the clip as shown in the figure.






13. Disconnect the drain hose connected to A/C unit. Removal and Replacement






14. Remove the cap and fastener securing the insulator (front) and set the insulator (front) aside.

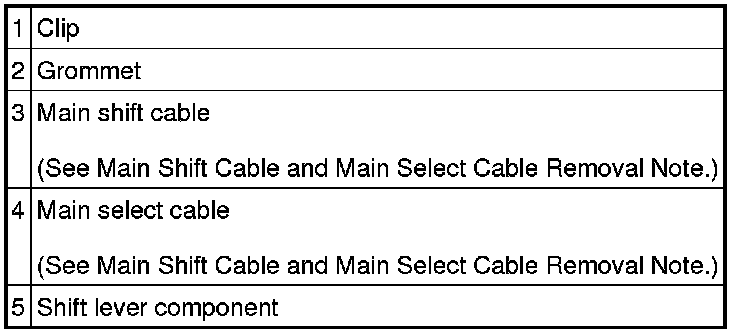

15. Remove in the order indicated in the table.

16. Install in the reverse order of removal.

17. After installation, verify that the shift lever can be shifted smoothly into each position.









Main Shift Cable and Main Select Cable Removal Note

1. Remove the both shift cable end and select cable end using a fastener remover.
