G35M-R

OIL SEAL (DIFFERENTIAL) REPLACEMENT [G35M-R]

1. On level ground, jack up the vehicle and support it evenly on safety stands.

2. Remove the aerodynamic under cover No.2. Aerodynamic Under Cover No. 2 Removal/Installation

3. Drain the oil from the transaxle. G35M-R

4. Remove the front splash shield. Splash Shield Removal/Installation

5. Separate the drive shaft and joint shaft from the transaxle. Drive Shaft Removal/Installation Joint Shaft Removal/Installation

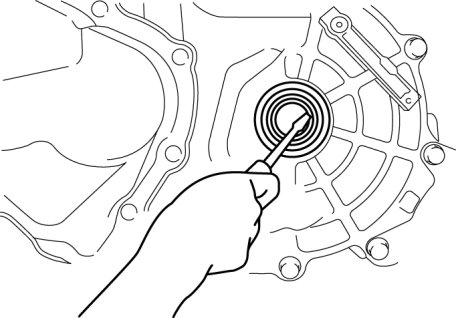

6. Remove the oil seals using a screwdriver.

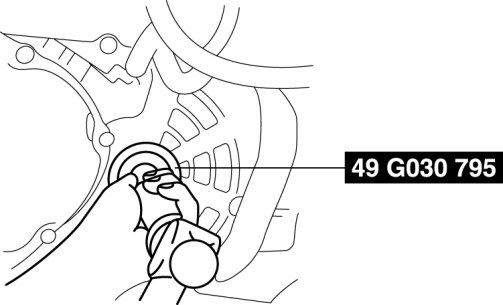

7. Using the SST and a hammer, tap each new oil seal in evenly until the SST contacts the transaxle case.






8. Coat the lip of each oil seal with transaxle oil.

9. Insert the drive shaft and joint shaft to the transaxle. Drive Shaft Removal/Installation Joint Shaft Removal/Installation

10. Install the front splash shield. Splash Shield Removal/Installation

11. Add the specified amount and type of oil. G35M-R

12. Install the aerodynamic under cover No.2. Aerodynamic Under Cover No. 2 Removal/Installation
