Joint Shaft Assembly

JOINT SHAFT ASSEMBLY [MZR 2.0, MZR 2.5 (MTX)]

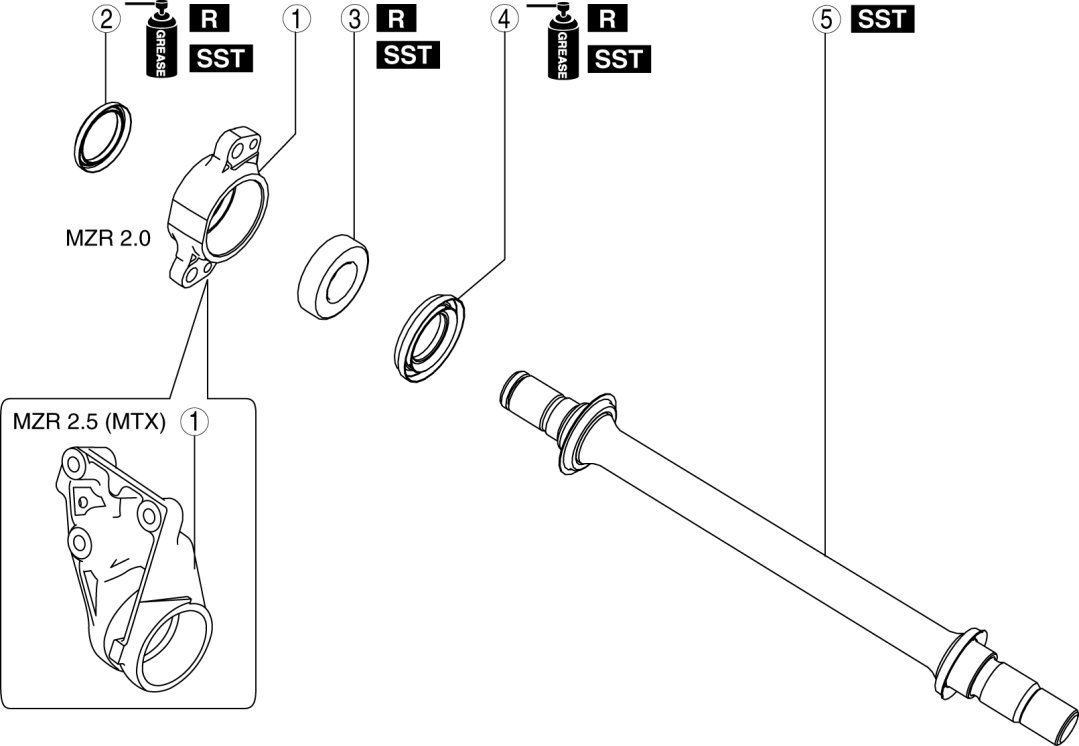

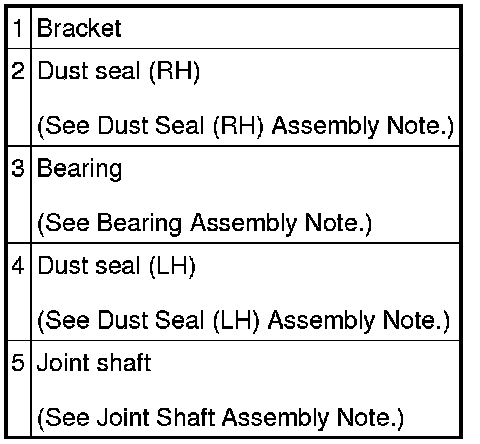

1. Assemble in the order indicated in the table.









Dust Seal (RH) Assembly Note

1. Apply grease to a new dust seal lip.

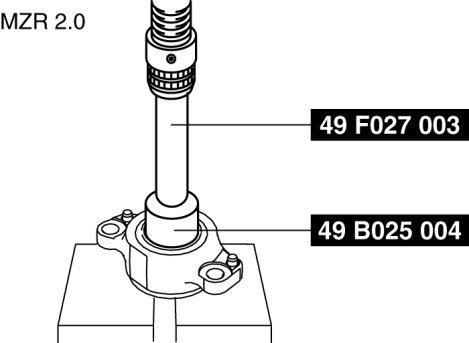

2. Install the dust seal (RH) using the SSTs.











Bearing Assembly Note

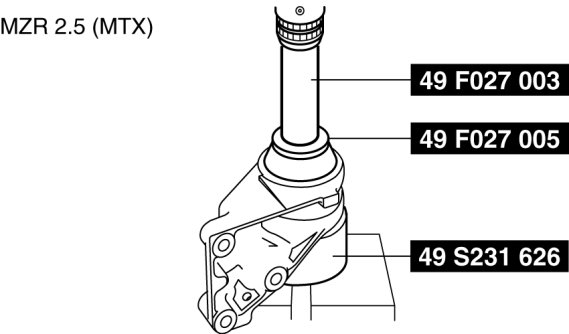

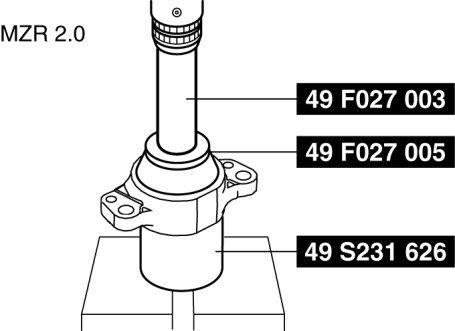

1. Install a new bearing using the SSTs.











Dust Seal (LH) Assembly Note

1. Apply grease to a new dust seal lip.

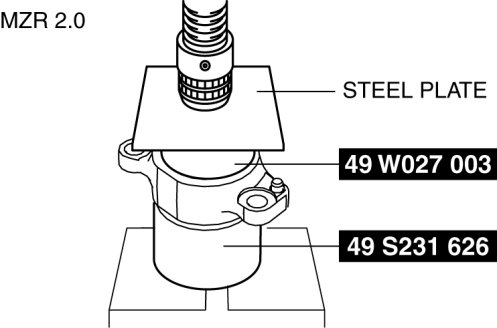

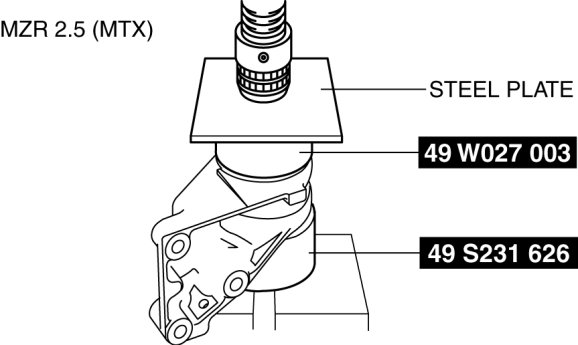

2. Install a new dust seal (LH) using the steel plate and the SSTs.











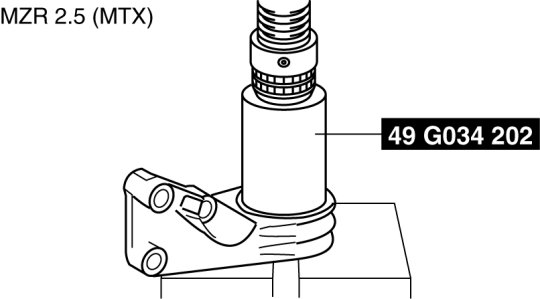

Joint Shaft Assembly Note

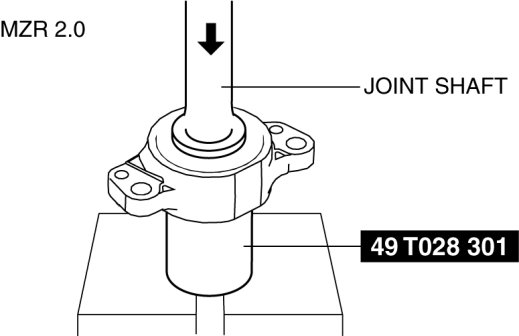

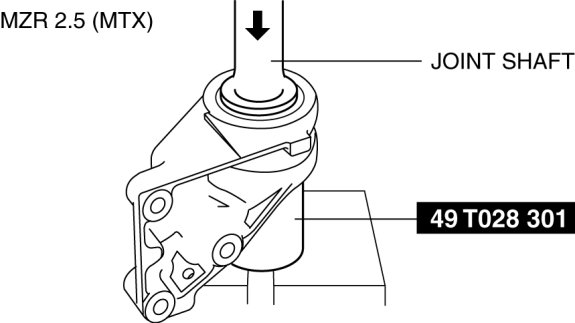

1. Press fit the joint shaft using the SST and a press.
