Symptom Troubleshooting Item Table

SYMPTOM TROUBLESHOOTING ITEM TABLE [FS5A-EL]

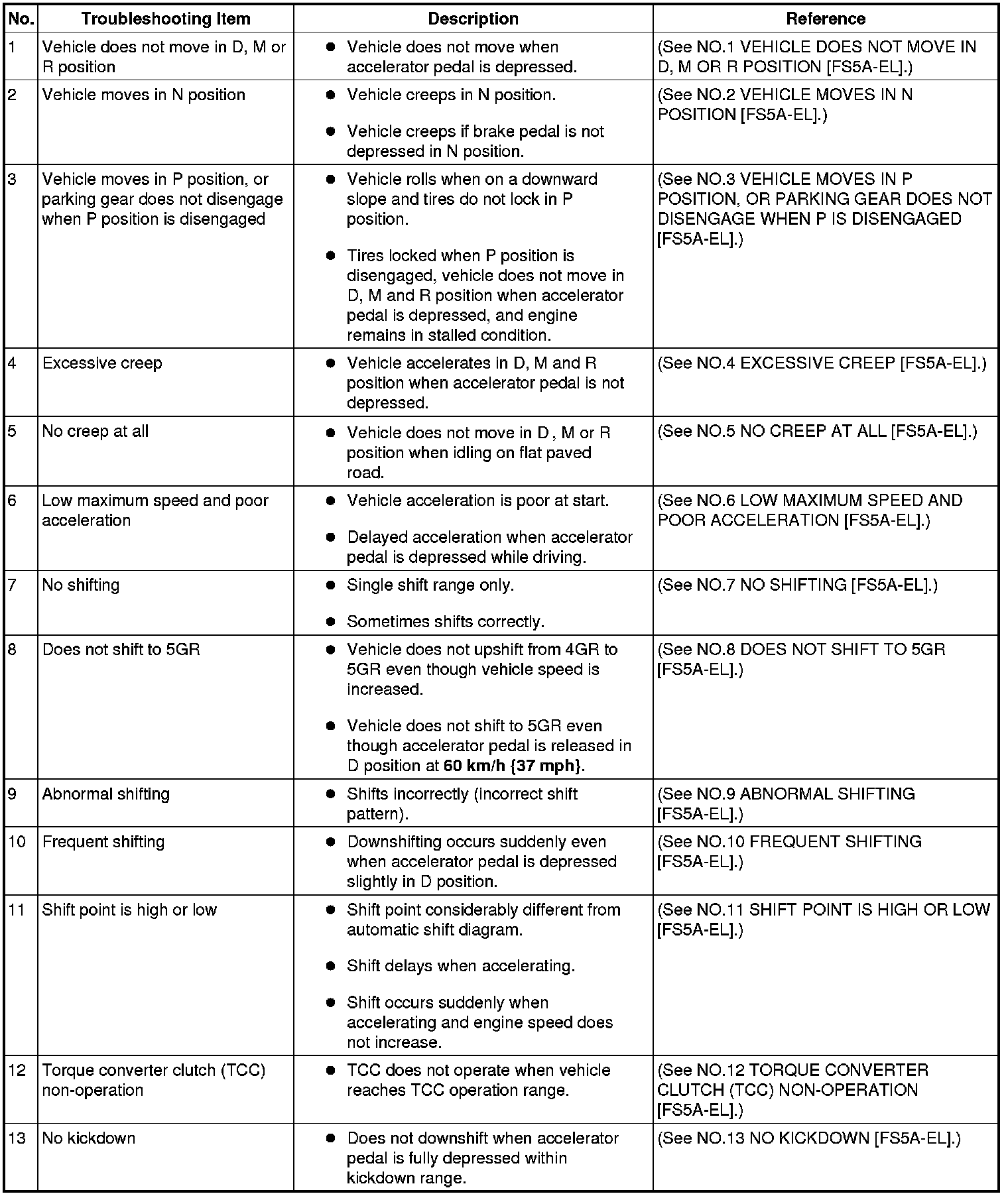

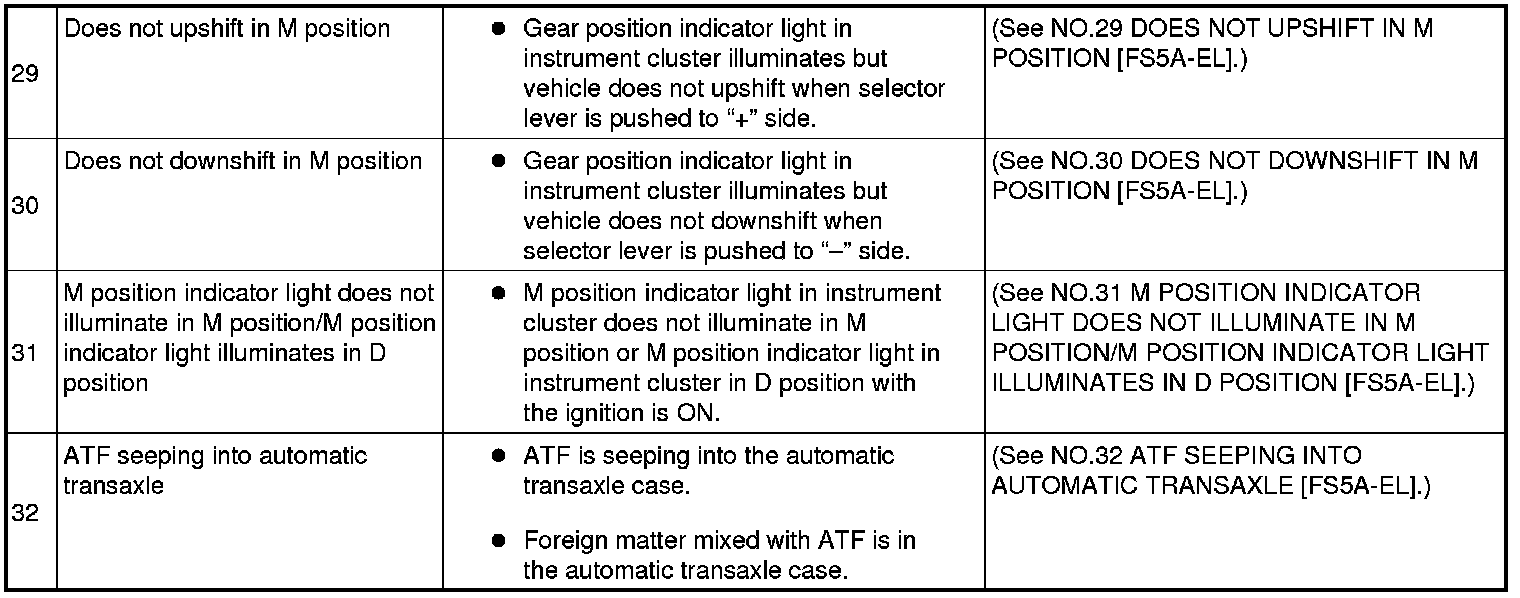

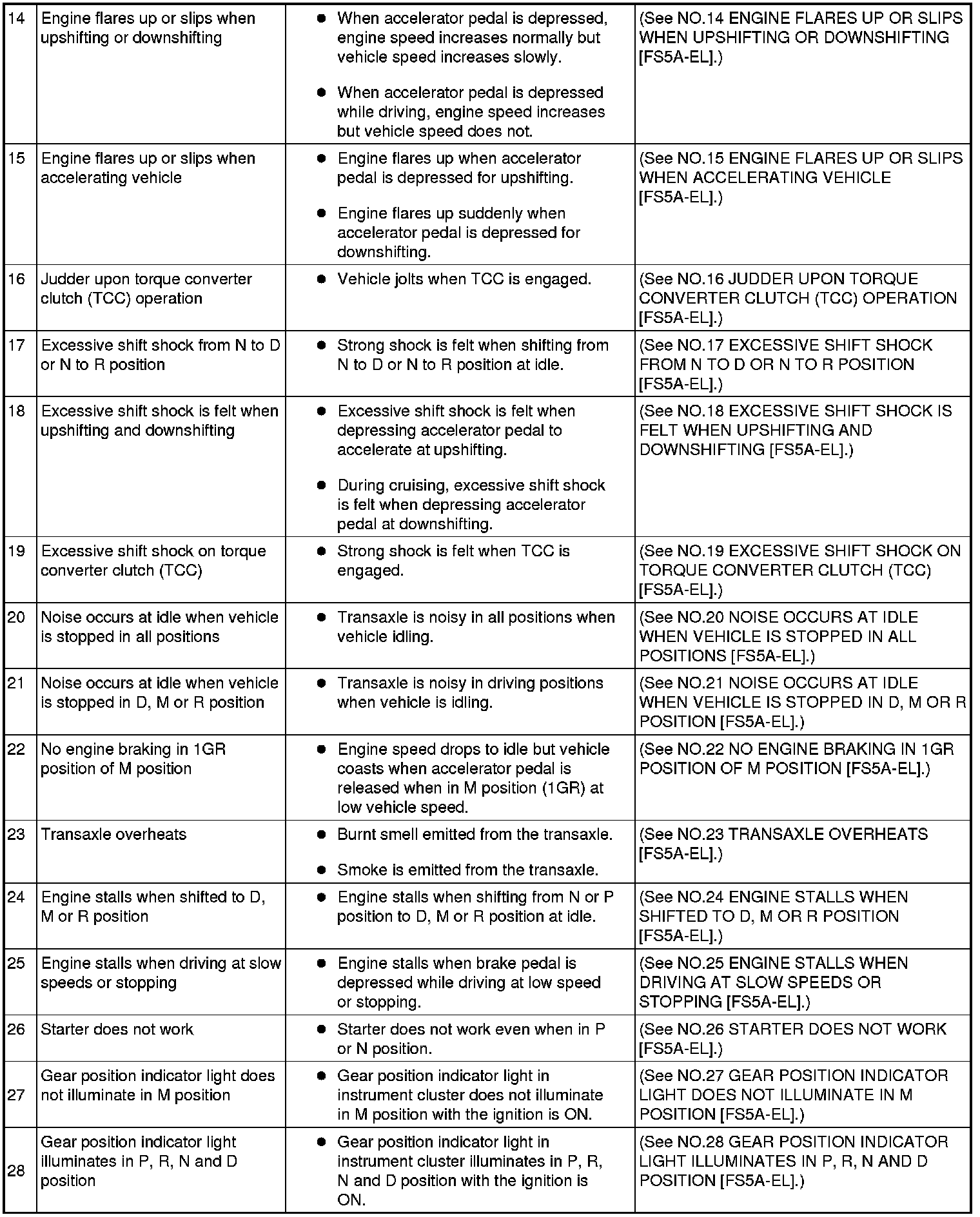

- Use the chart below to verify the symptoms of the trouble in order to diagnose the appropriate area.
