No. 31 M Position Indicator Light Does Not Illuminate In M Position/M Position Indicator Light Illuminates In D Position [FS5A-





NO.31 M POSITION INDICATOR LIGHT DOES NOT ILLUMINATE IN M POSITION/M POSITION INDICATOR LIGHT ILLUMINATES IN D POSITION [FS5A-EL]

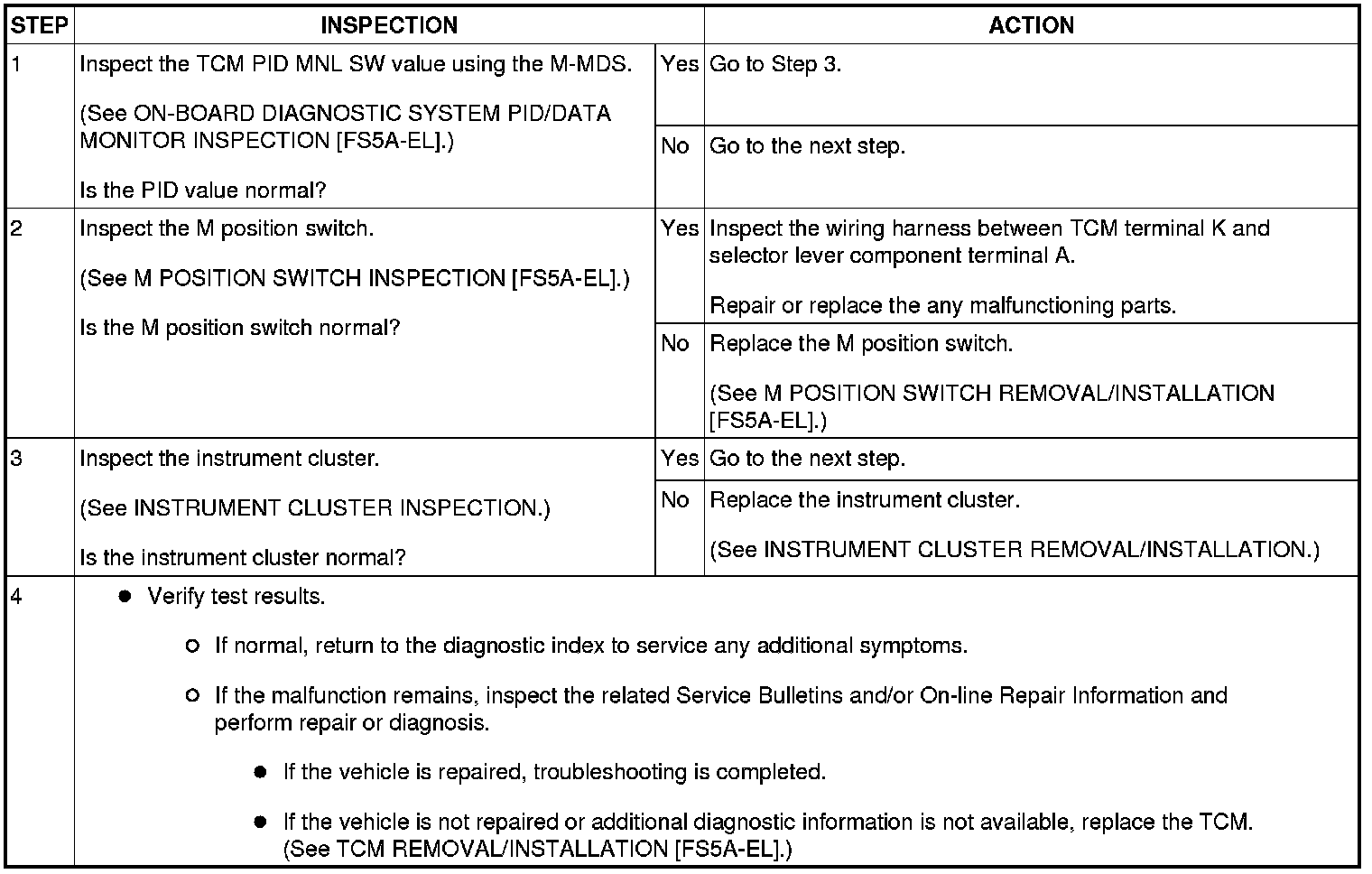

Diagnostic procedure
