No. 29 Does Not Upshift In M Position [FS5A-EL]
No. 29 Does Not Upshift In M Position [FS5A-EL]

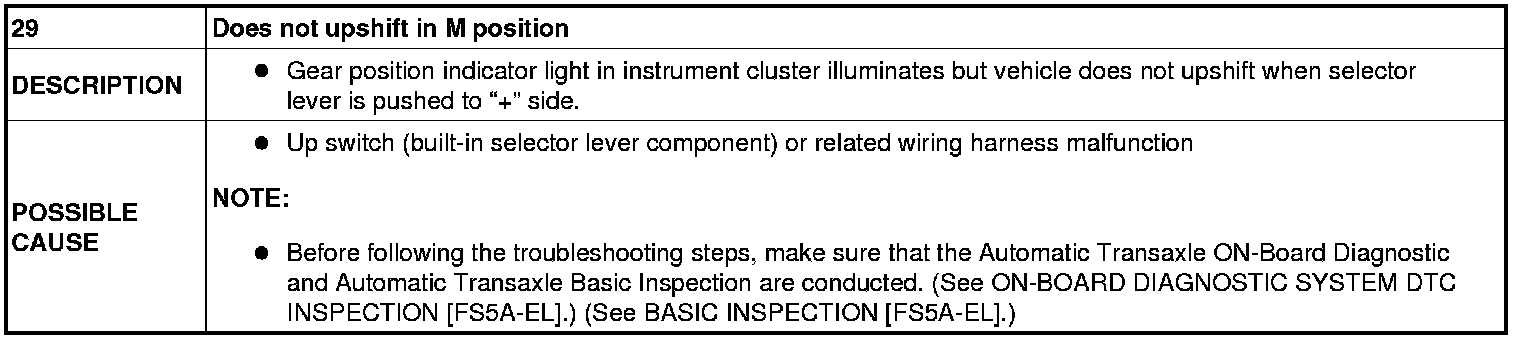

NO.29 DOES NOT UPSHIFT IN M POSITION [FS5A-EL]

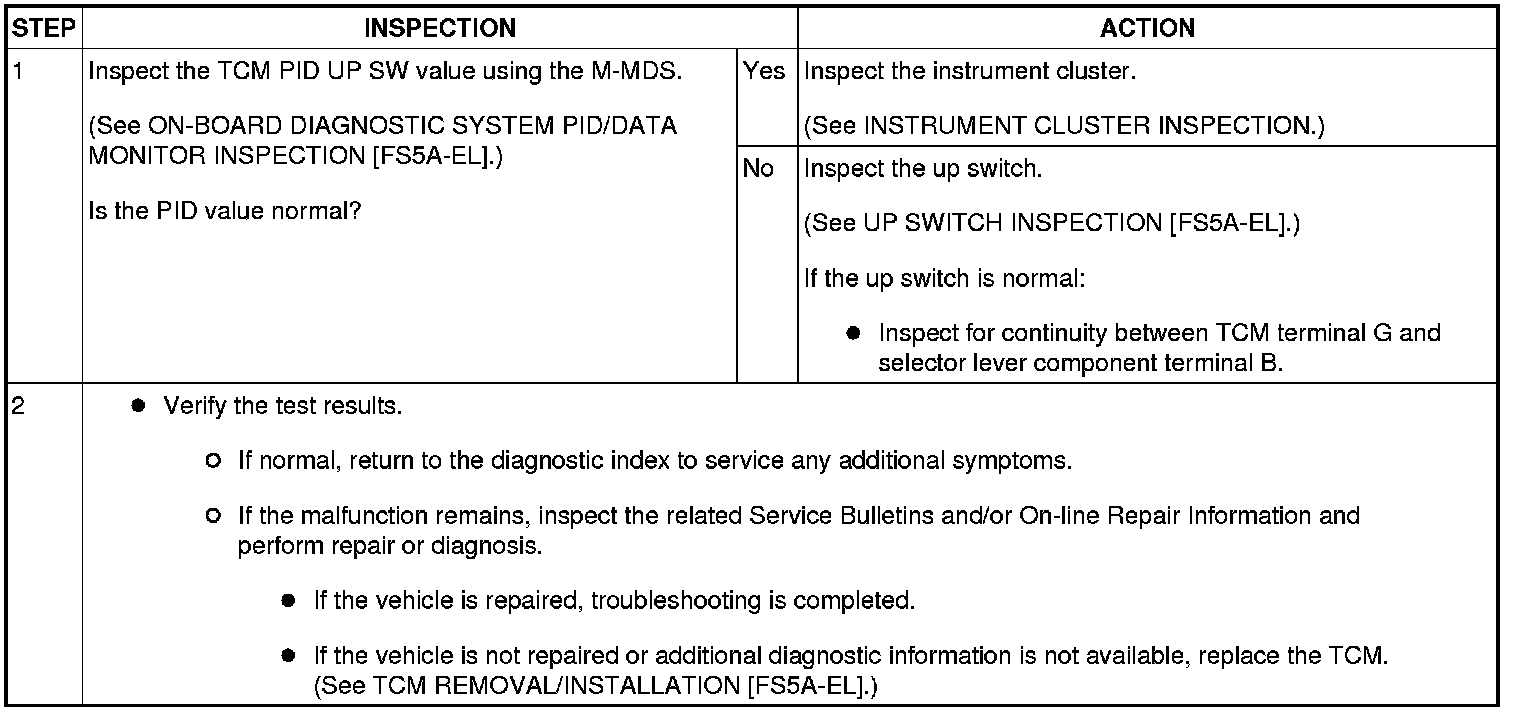

Diagnostic procedure
