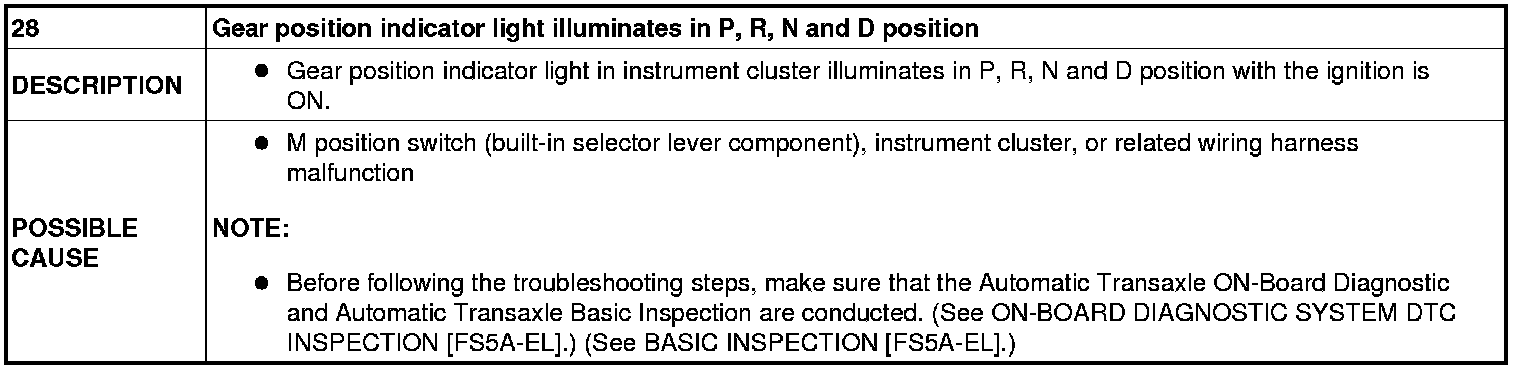

No. 28 Gear Position Indicator Light Illuminates In P, R, N And D Position [FS5A-EL]

NO.28 GEAR POSITION INDICATOR LIGHT ILLUMINATES IN P, R, N AND D POSITION [FS5A-EL]

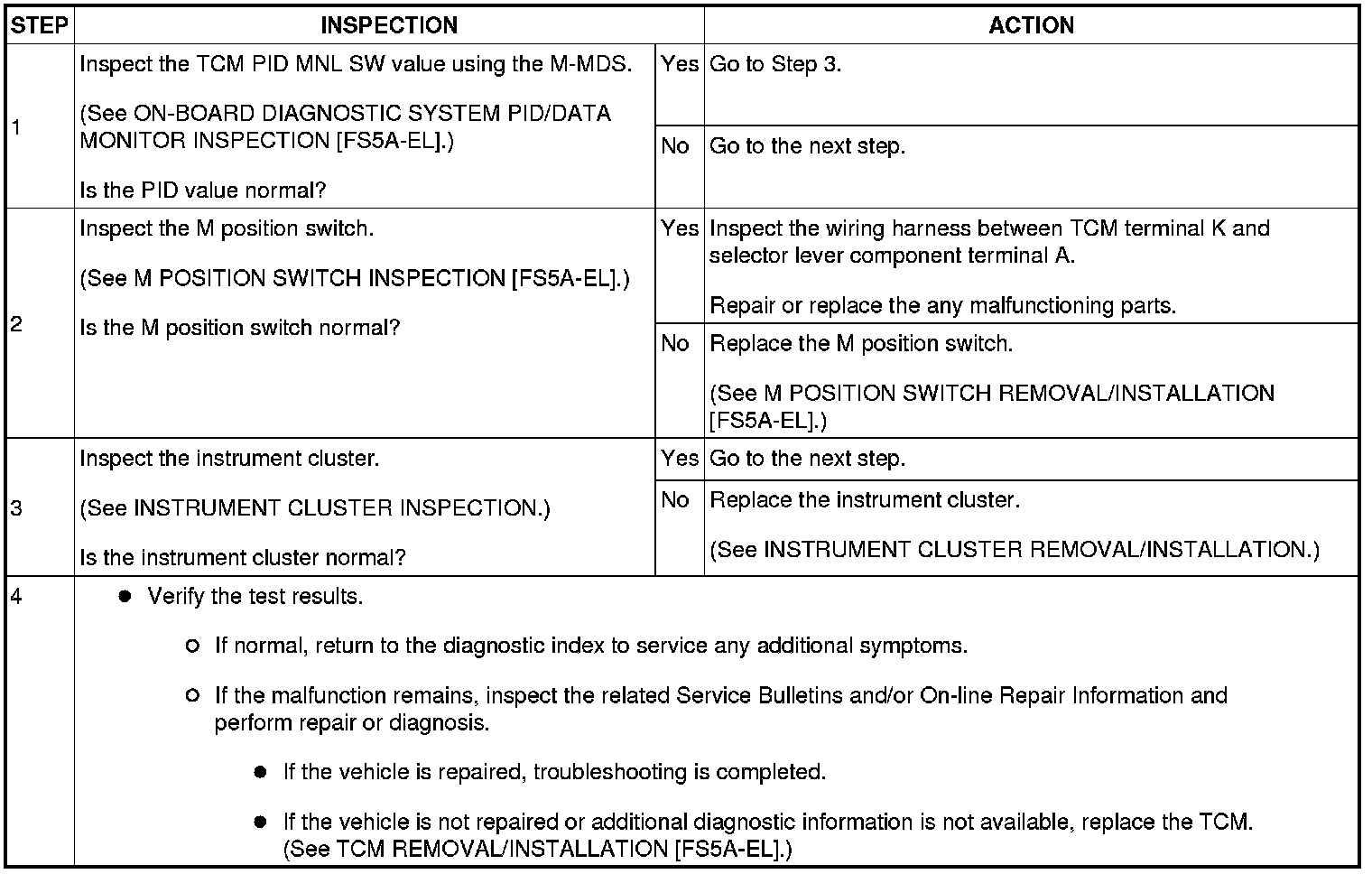

Diagnostic procedure
