No. 24 Engine Stalls When Shifted To D, M Or R Position [FS5A-EL]
No. 24 Engine Stalls When Shifted To D, M Or R Position [FS5A-EL]

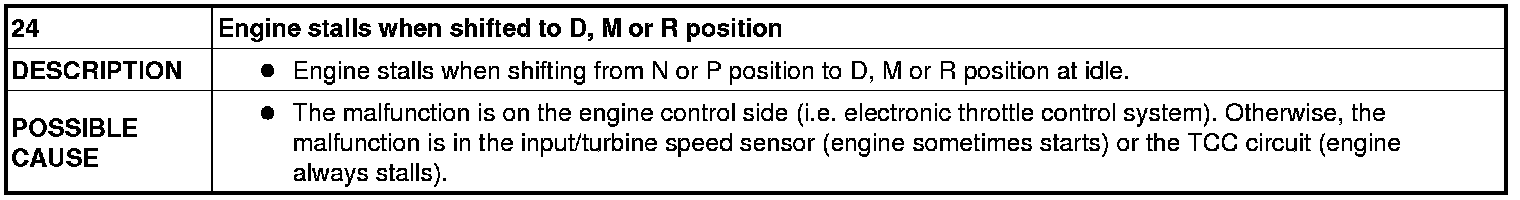

NO.24 ENGINE STALLS WHEN SHIFTED TO D, M OR R POSITION [FS5A-EL]

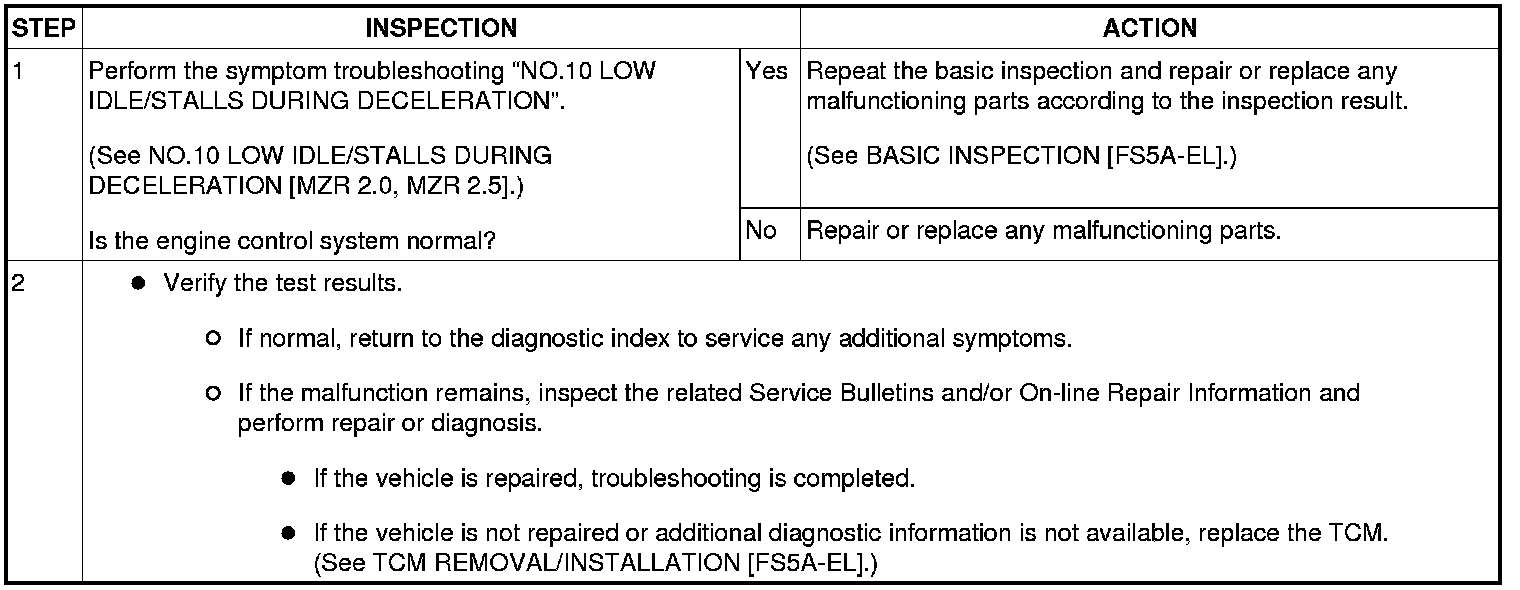

Diagnostic procedure
