Home >> Mazda >> 2012 >> 3 L4-2.0L (MZR) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No. 20 Noise Occurs At Idle When Vehicle Is Stopped In All Positions [FS5A-EL]

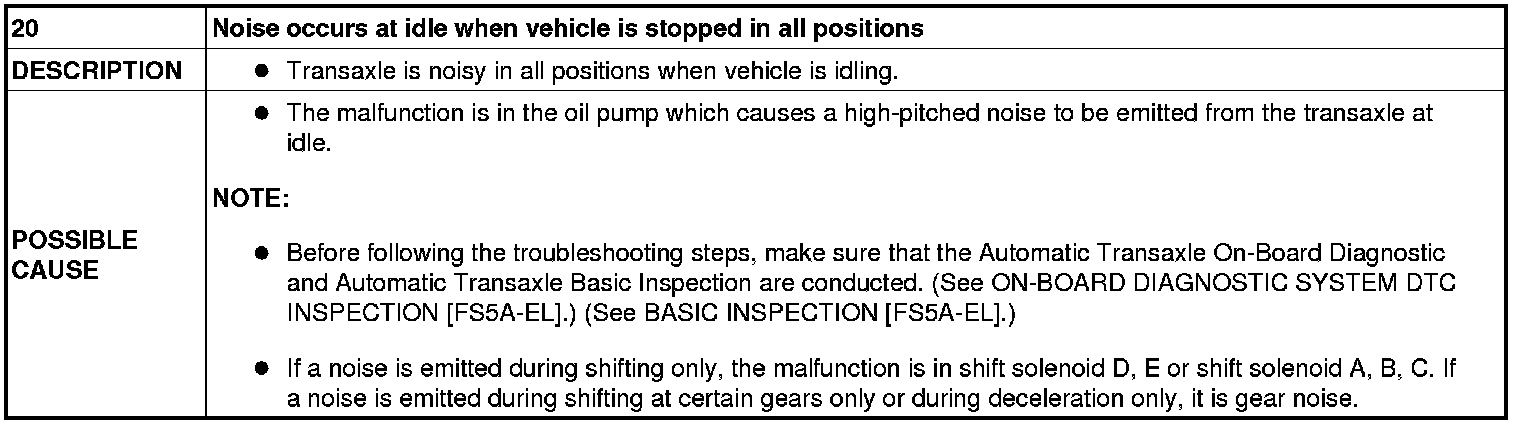

No. 20 Noise Occurs At Idle When Vehicle Is Stopped In All Positions [FS5A-EL]





NO.20 NOISE OCCURS AT IDLE WHEN VEHICLE IS STOPPED IN ALL POSITIONS [FS5A-EL]

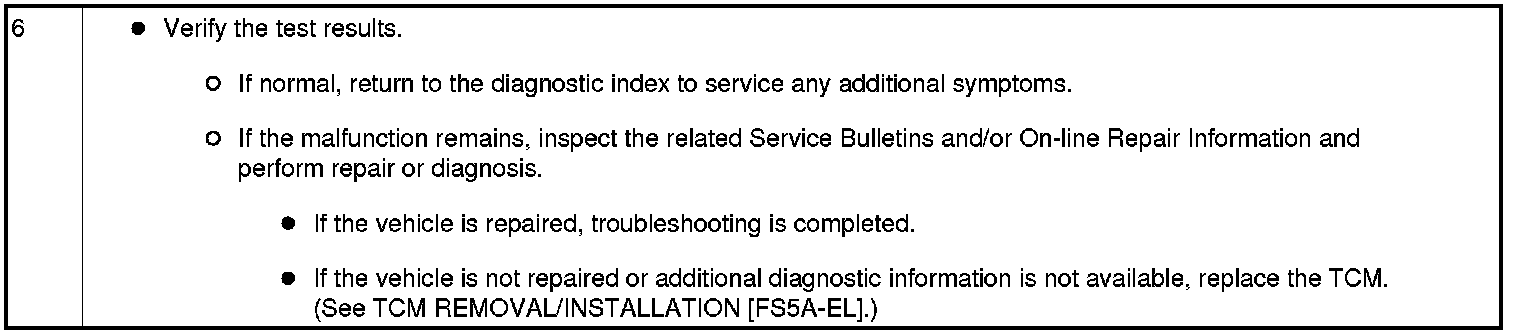

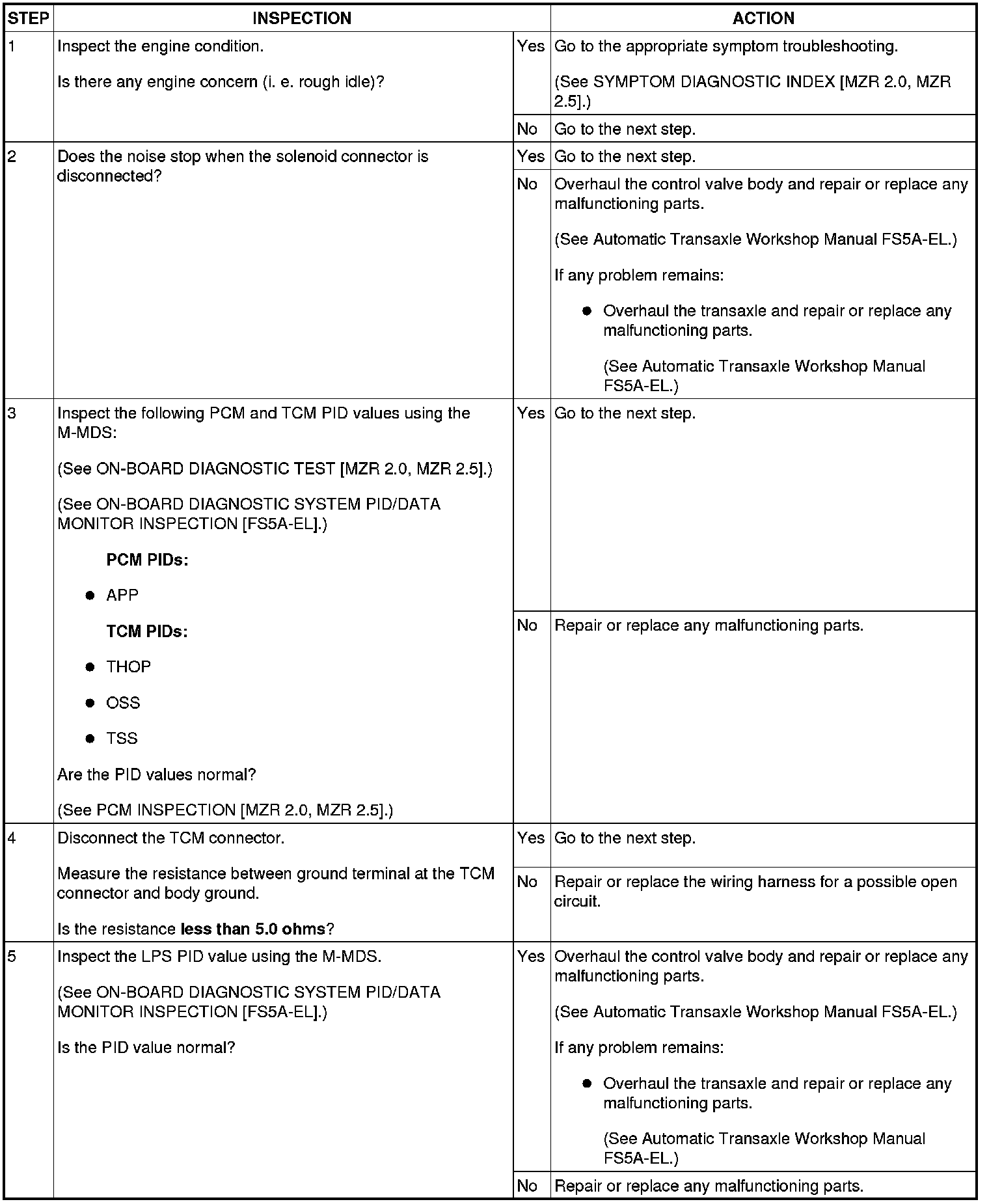

Diagnostic procedure
