No. 17 Excessive Shift Shock From N To D Or N To R Position [FS5A-EL]
No. 17 Excessive Shift Shock From N To D Or N To R Position [FS5A-EL]

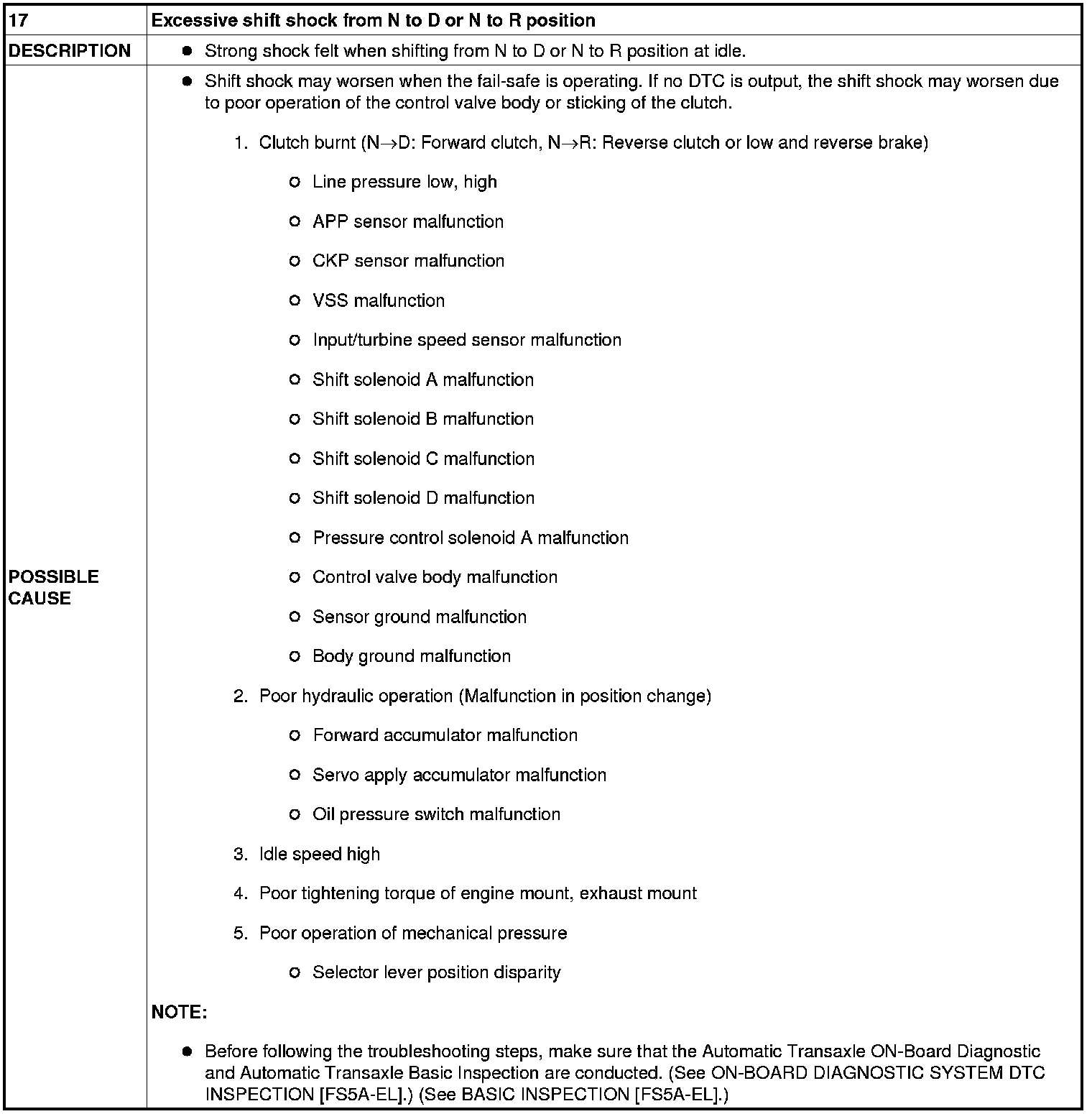

NO.17 EXCESSIVE SHIFT SHOCK FROM N TO D OR N TO R POSITION [FS5A-EL]

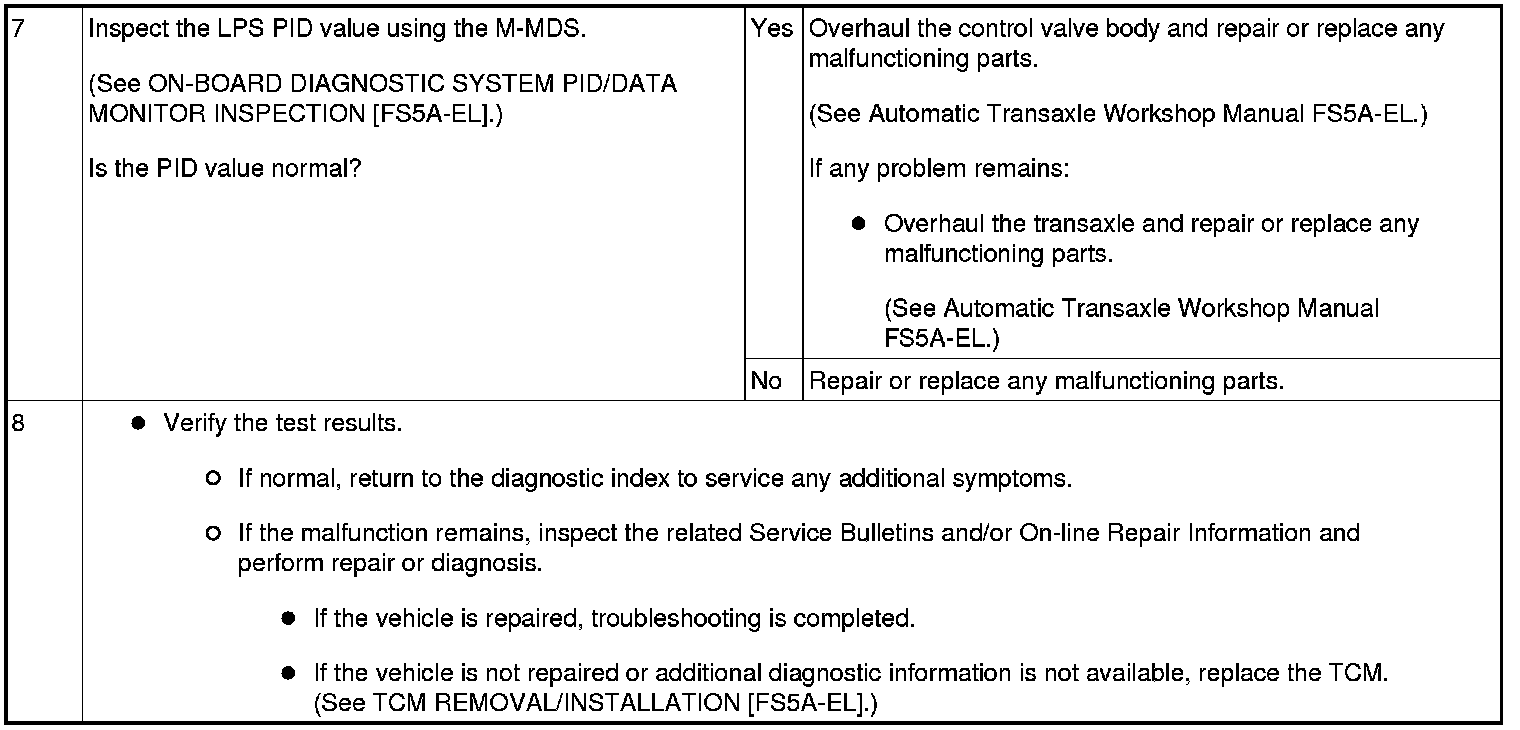

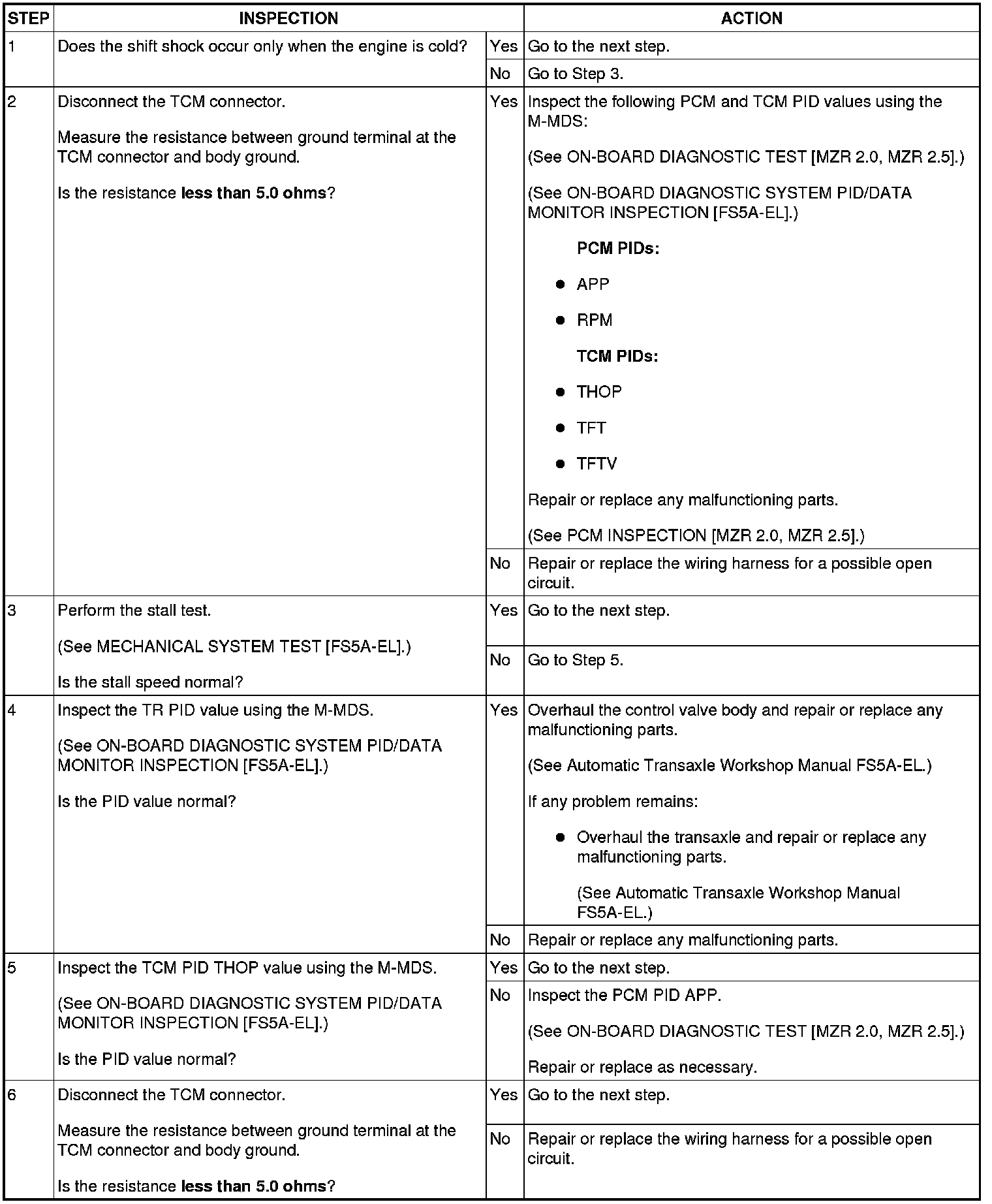

Diagnostic procedure
