FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mazda
>>
2012
>>
3 L4-2.0L (MZR)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
No. 12 Torque Converter Clutch (TCC) Non-Operation
No. 12 Torque Converter Clutch (TCC) Non-Operation

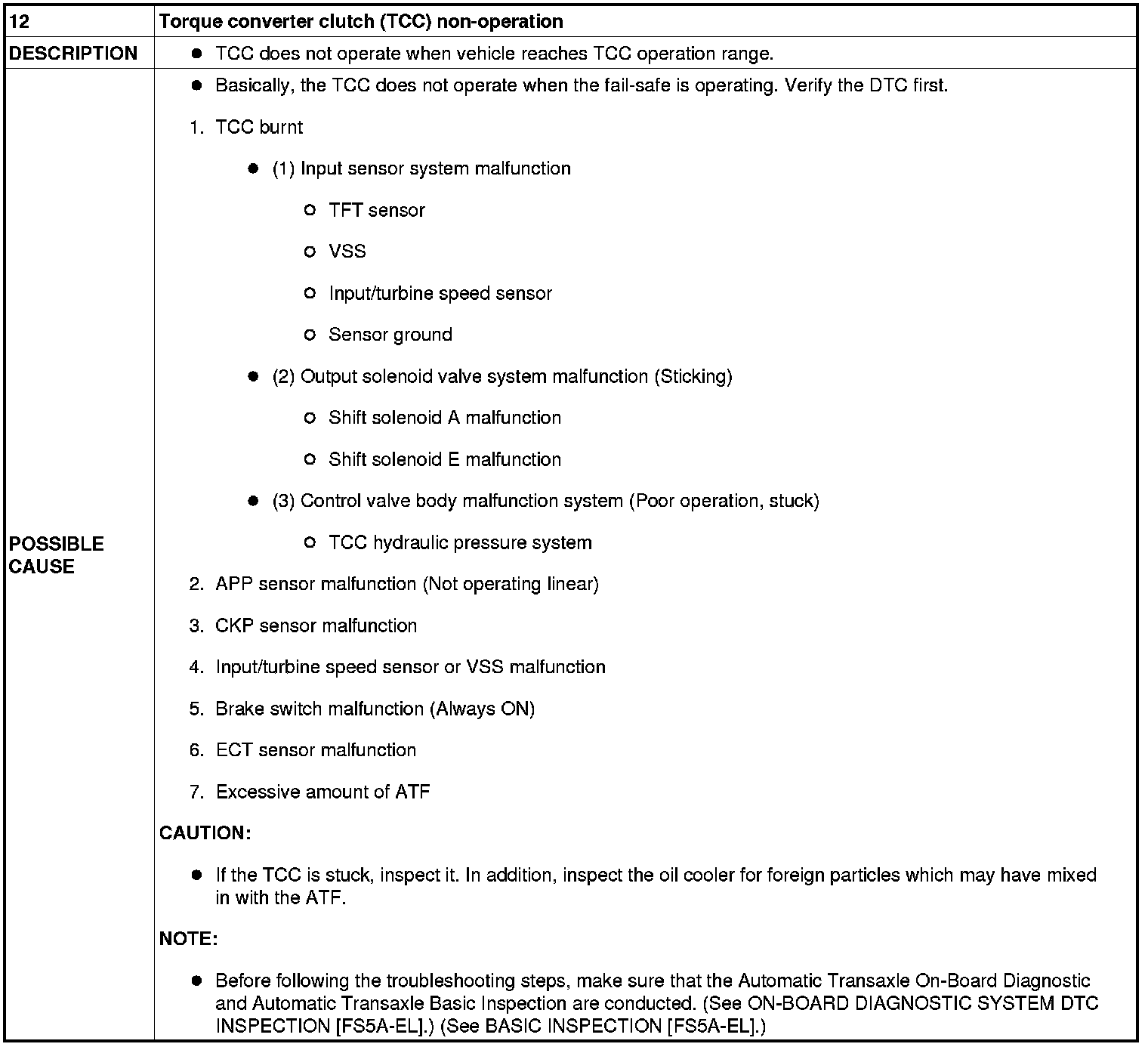

NO.12 TORQUE CONVERTER CLUTCH (TCC) NON-OPERATION [FS5A-EL]

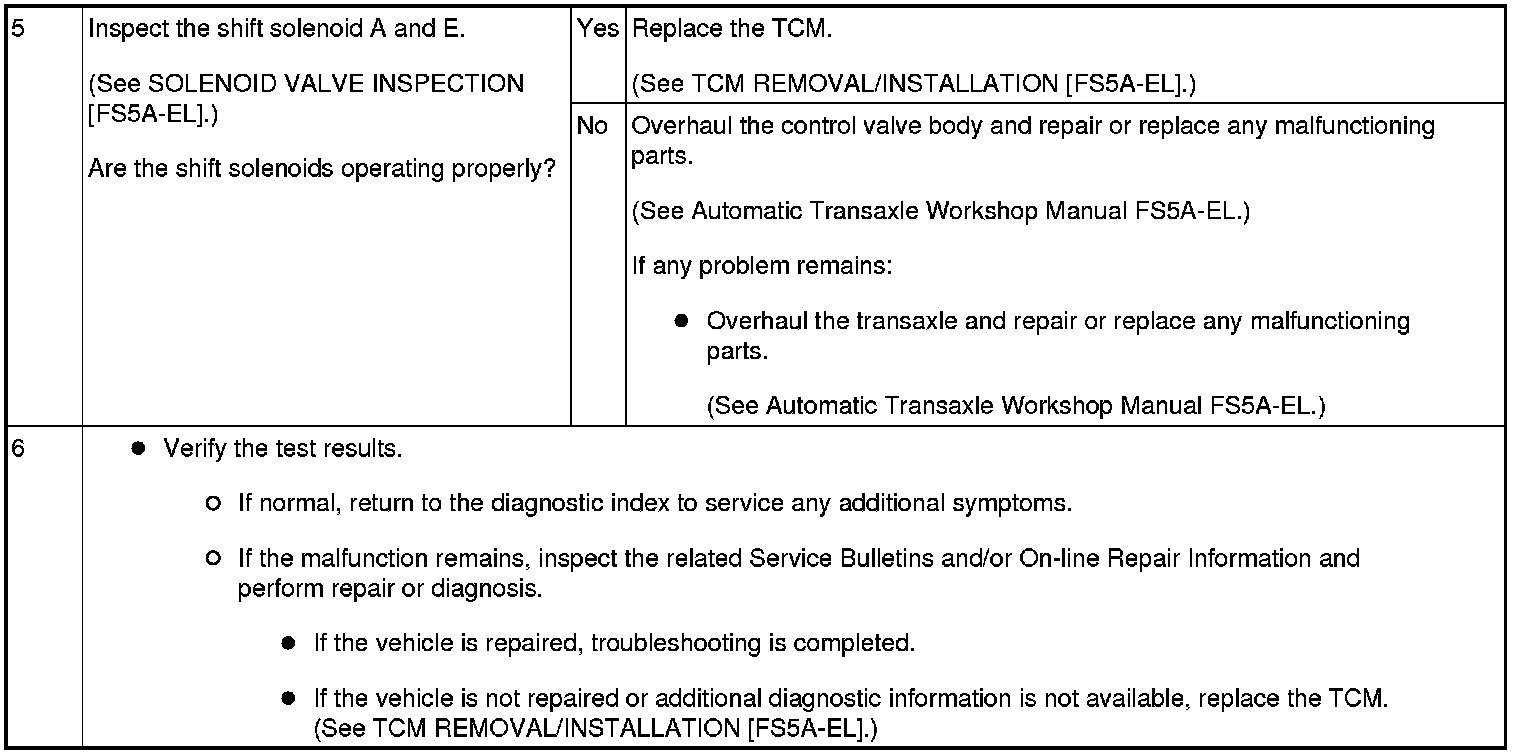

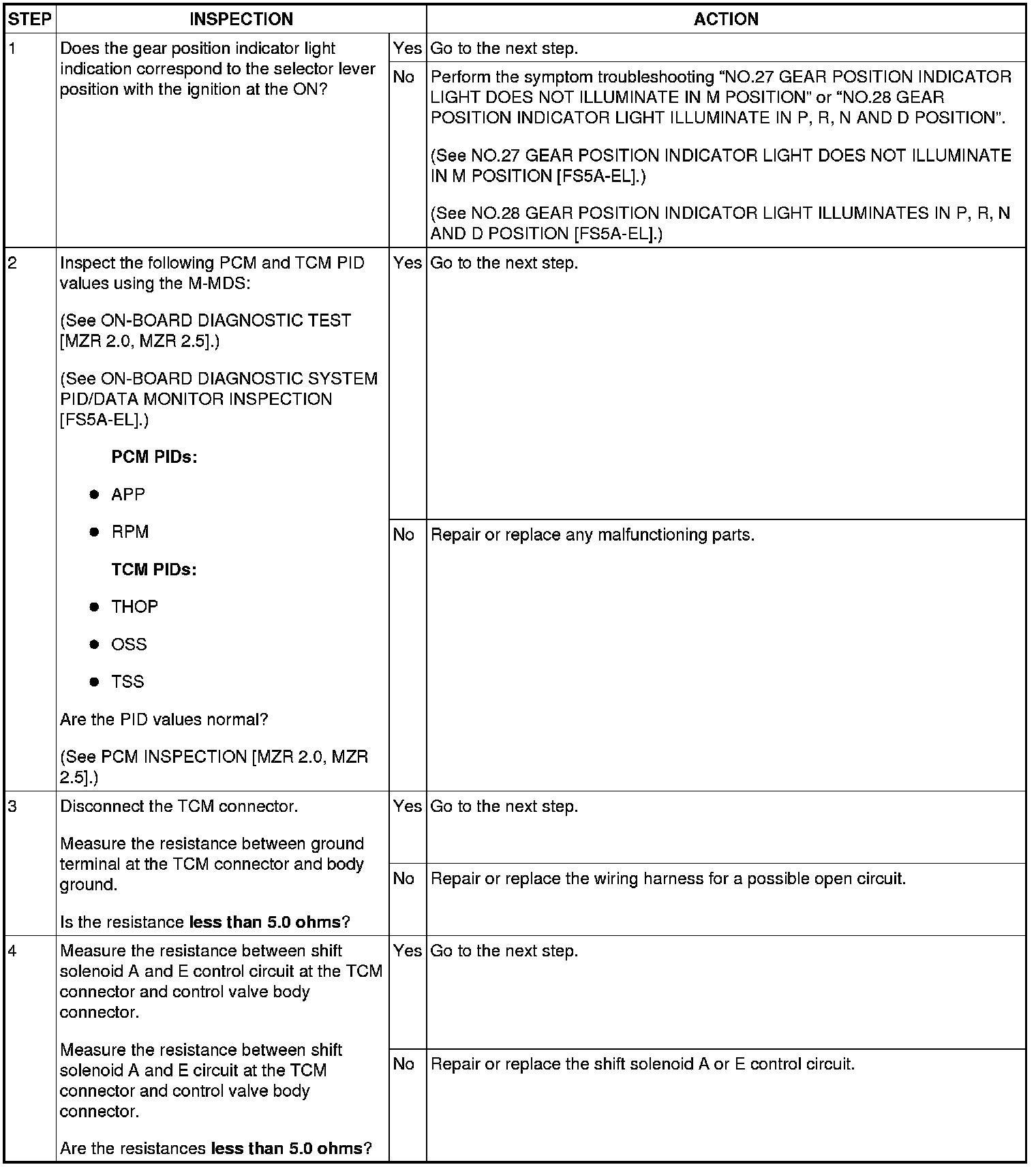

Diagnostic procedure
