No. 1 Vehicle Does Not Move In D, M Or R Position [FS5A-EL]
No. 1 Vehicle Does Not Move In D, M Or R Position [FS5A-EL]

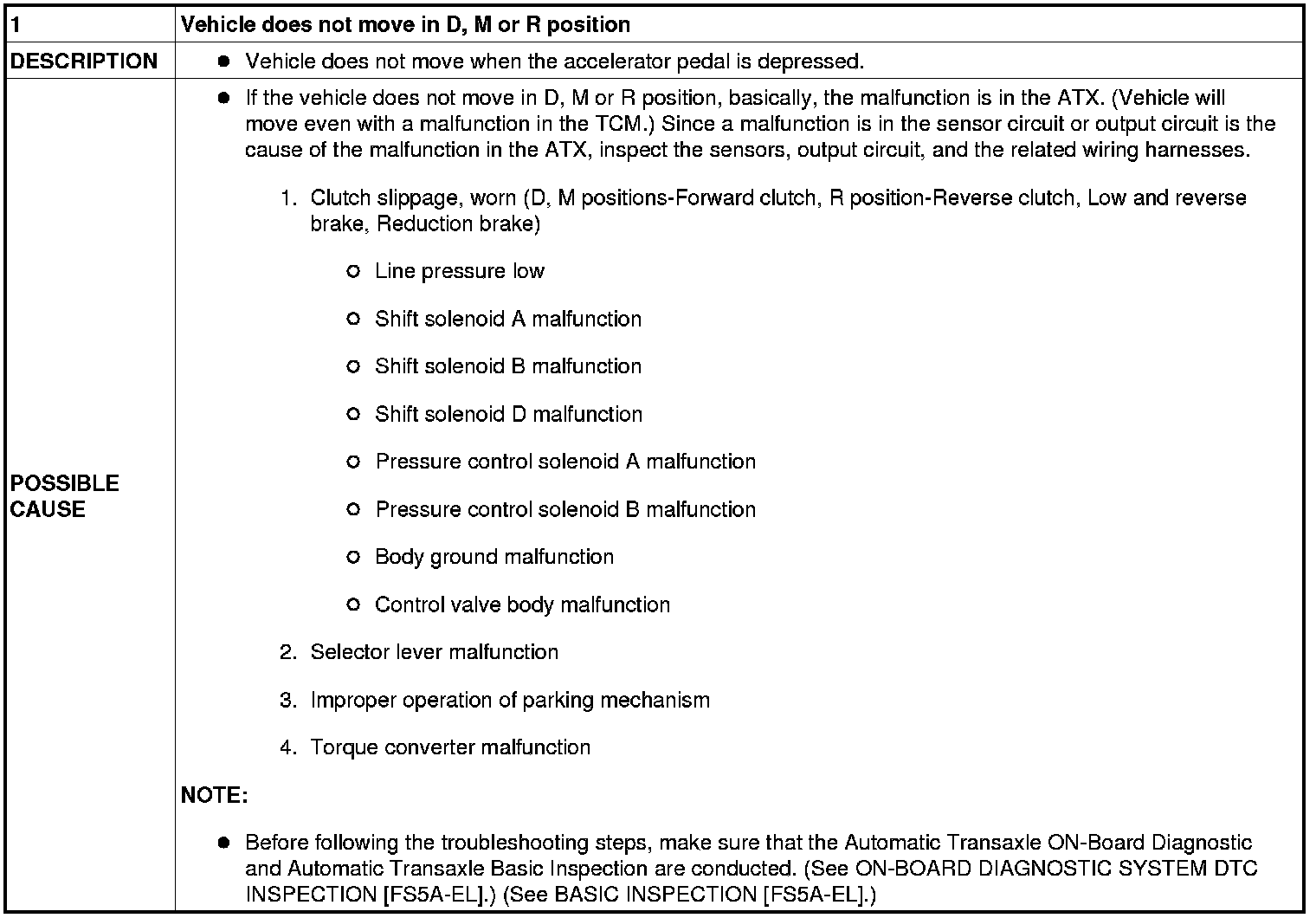

NO.1 VEHICLE DOES NOT MOVE IN D, M OR R POSITION [FS5A-EL]

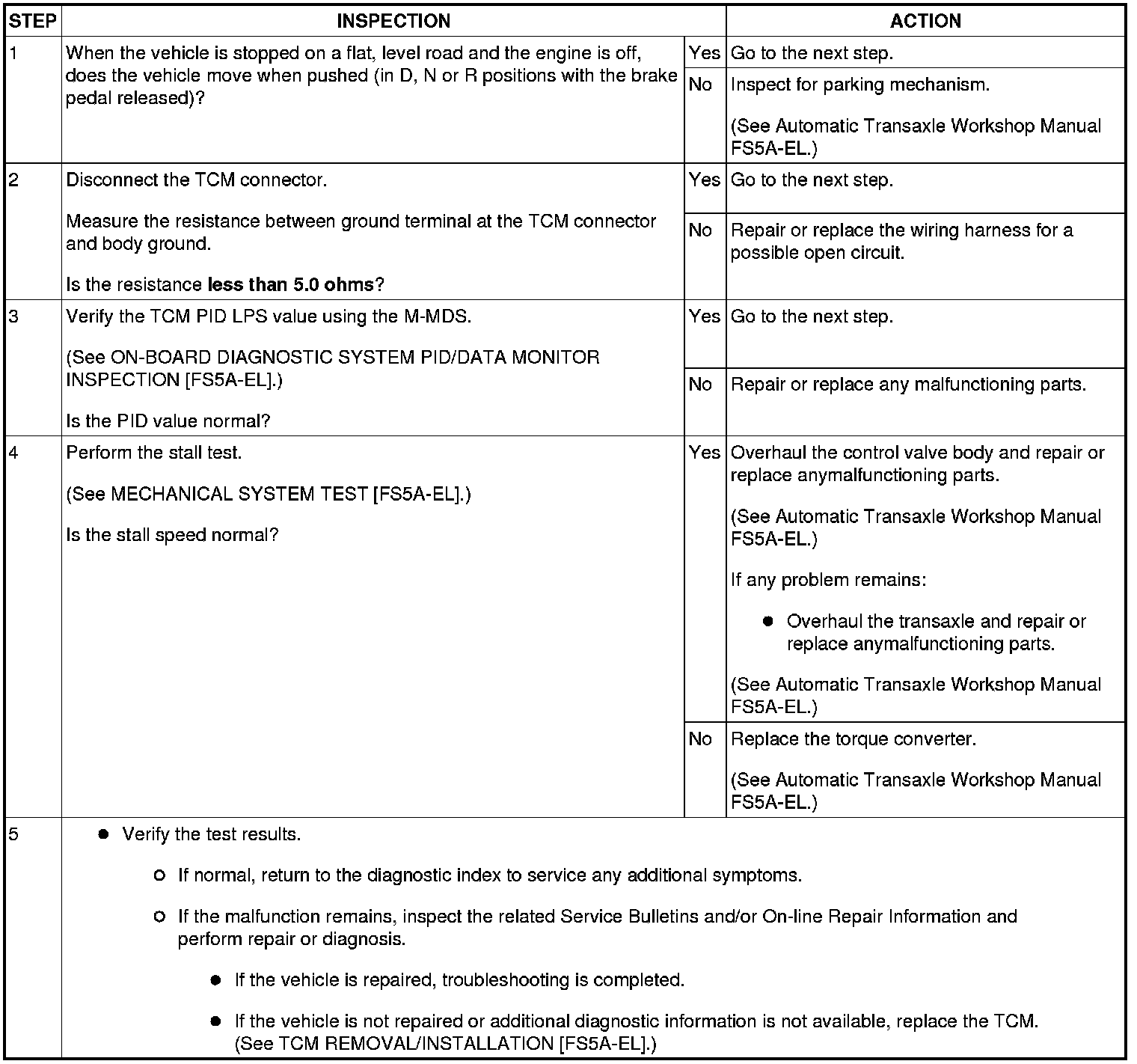

Diagnostic procedure
