Up Switch Inspection

UP SWITCH INSPECTION [FS5A-EL]

1. Perform the following procedures.
a. Remove the battery cover. Removal and Replacement

b. Disconnect the negative battery cable.

c. Remove the console. Console Removal/Installation

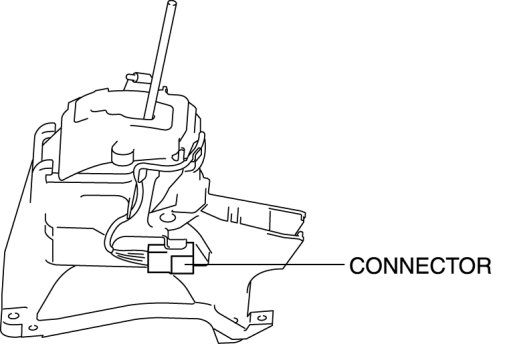

d. Disconnect the selector lever component connector.

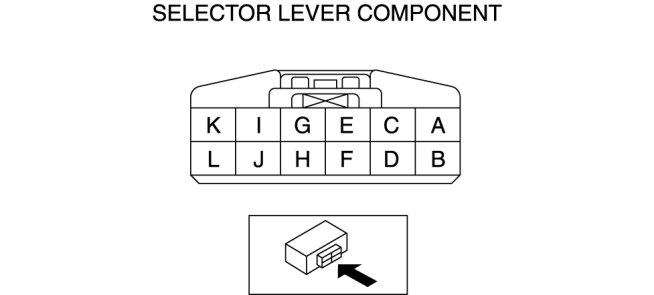

2. Inspect the continuity between the selector lever component terminals B and H.






- If there is any malfunction, replace the selector lever component. Automatic Transaxle Shift Mechanism Removal/Installation

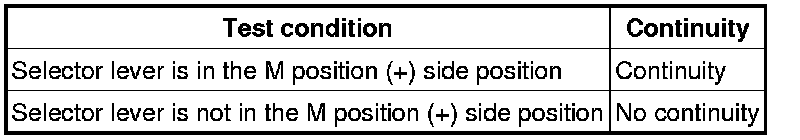

Up switch specification
