Automatic Transaxle Shift Mechanism Removal/Installation
AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION
Selector Lever Removal/Installation
1. Remove the battery cover. Removal and Replacement Removal and Replacement
2. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement

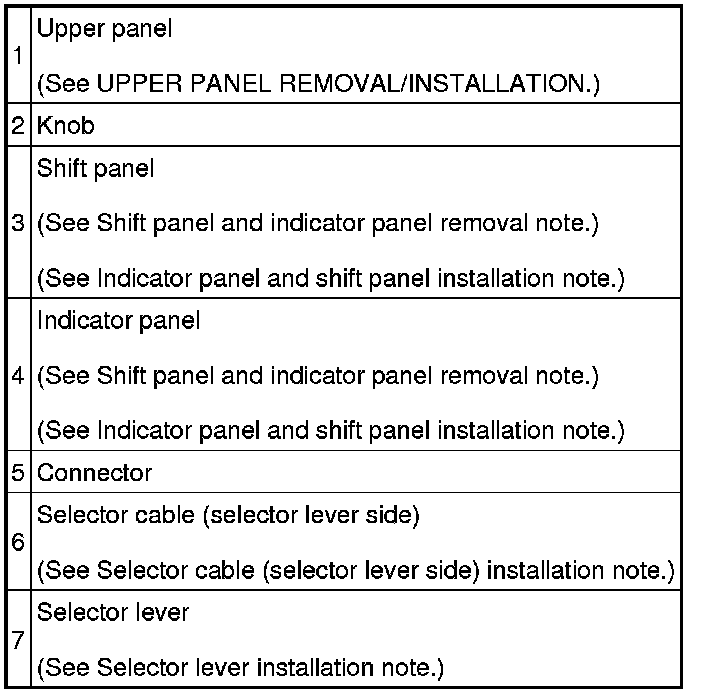

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
Shift panel and indicator panel removal note
1. Remove the shift panel and indicator panel as a single unit.
a. Release the hooks securing the shift panel and console, and then release the hooks securing the shift panel and ashtray panel. Shift Panel Removal/Installation

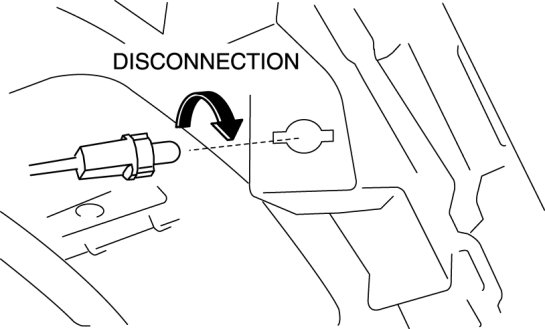

b. Lift up the shift panel and indicator panel and disconnect the bulb socket from the indicator panel.
c. Remove the shift panel and indicator panel from the selector lever as a single unit.

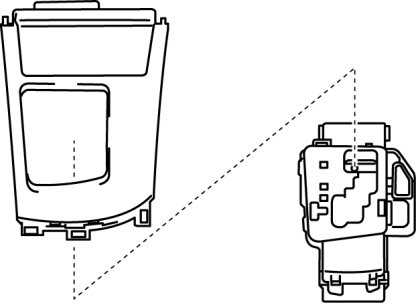

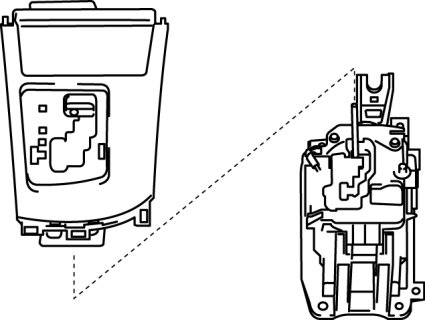

2. Detach the hooks as shown in the figure and remove the indicator panel from the shift panel.
Selector lever installation note

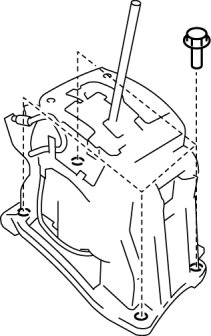

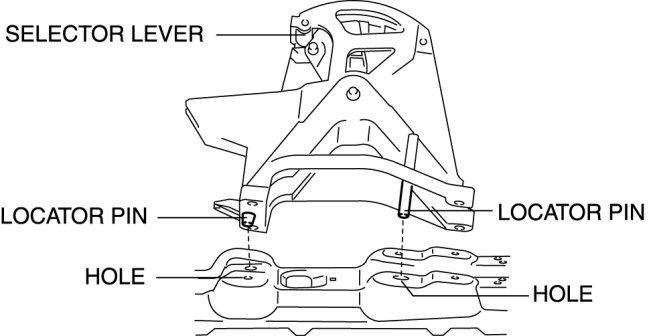

1. Align the locator pin with the hole in the floor as shown in the figure and install the selector lever.
2. Tighten the selector lever installation bolts.
Tightening torque
- 8-10 Nm {82-101 kgf-cm, 71-88 in-lbf}
Selector cable (selector lever side) installation note
1. Install the selector cable end (selector lever side) as shown in the figure.
2. Install the cable outer end (selector lever side) to the selector cable bracket as shown in the figure.
3. Adjust the selector cable. (See Selector Cable Adjustment.)
Indicator panel and shift panel installation note
1. Install the shift panel to the indicator panel.
2. Install the shift panel and indicator panel to the selector lever as a single unit.

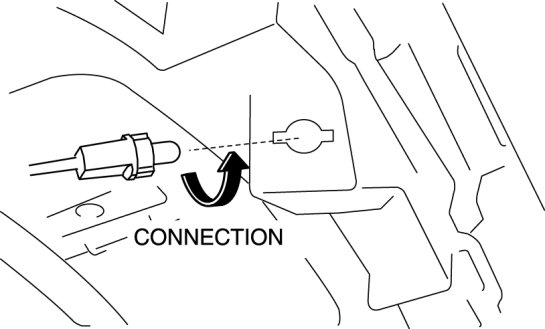

3. Connect the bulb socket to the indicator panel.
4. Install the shift panel and indicator panel to the console and ashtray panel as a single unit. (See Shift Panel Removal/Installation)
Selector Cable Removal/Installation
1. Remove the battery cover. Removal and Replacement Removal and Replacement
2. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement
3. Remove the battery component (ex: battery, battery tray and PCM component). Removal and Replacement Removal and Replacement
4. Remove the air cleaner component. Service and Repair Service and Repair
5. Remove the aerodynamic under cover NO.2. Aerodynamic Under Cover No. 2 Removal/Installation
6. Remove the tunnel member (rear). (MZR 2.0, MZR 2.5) Service and Repair
7. Remove the brace bar. (SKYACTIV-G 2.0) Service and Repair
8. Remove the insulator (front) installation nuts and set the insulator (front) aside. Service and Repair Service and Repair
9. Remove the upper panel. Upper Panel Removal/Installation
10. Remove the knob. (See Selector Lever Removal/Installation.)
11. Remove the shift panel and indicator panel as a single unit.
a. Release the hooks securing the shift panel and console, and then release the hooks securing the shift panel and ashtray panel. Shift Panel Removal/Installation
b. Lift up the shift panel and indicator panel and disconnect the bulb socket from the indicator panel.
c. Remove the shift panel and indicator panel from the selector lever as a single unit.
12. Remove the console. Console Removal/Installation
13. Disconnect the drain hose connected to A/C unit. Removal and Replacement

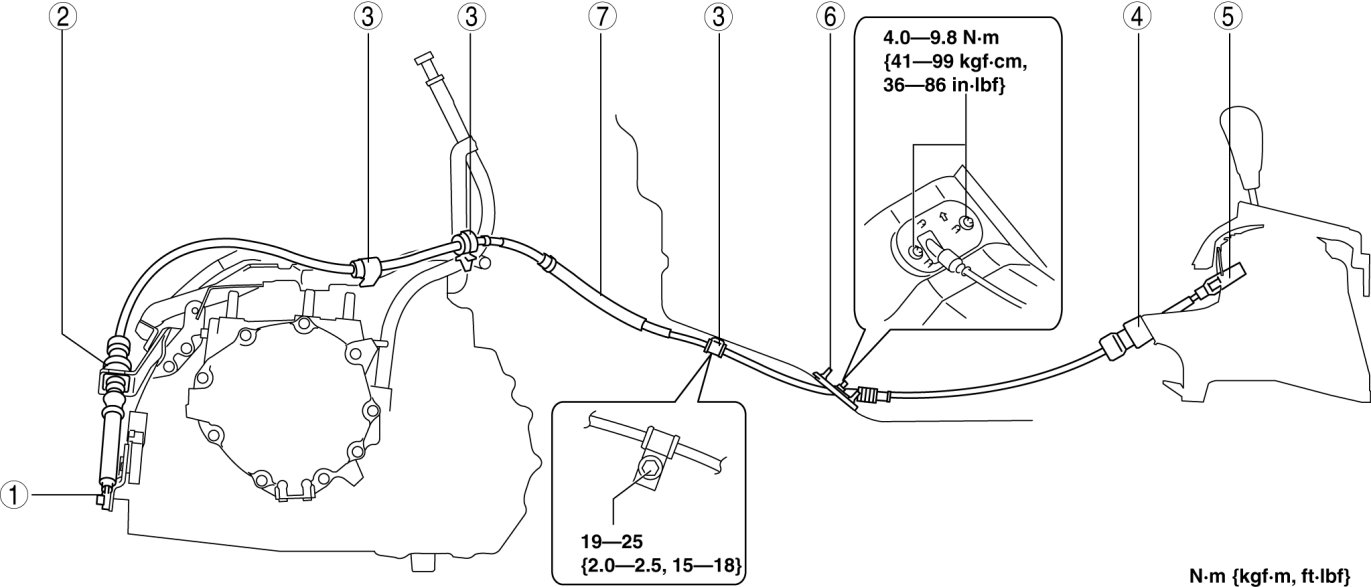

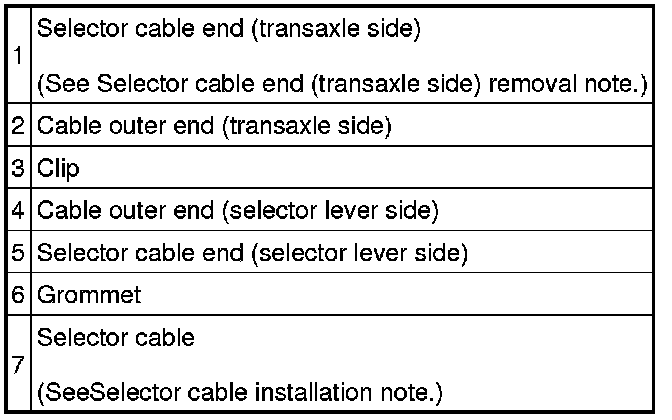

14. Remove in the order indicated in the table.
15. Install in reverse of removal.
FS5A-EL
FW6A-EL
Selector cable end (transaxle side) removal note

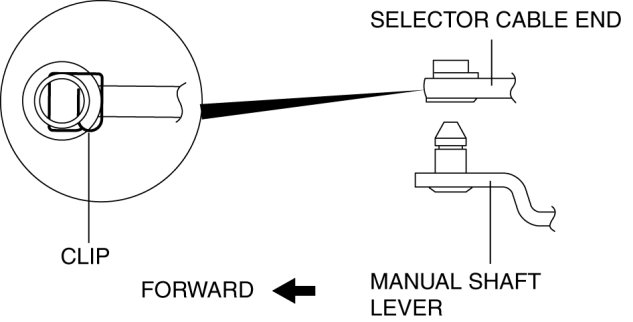

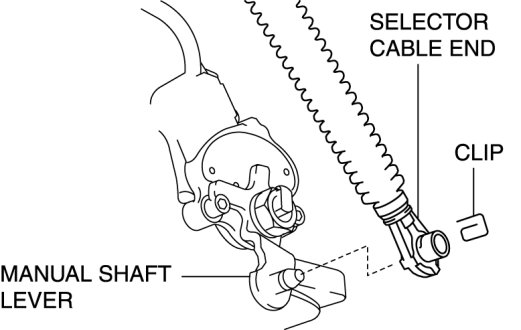

1. Remove the clip, and then disconnect the selector cable end from the manual shaft lever.
FS5A-EL
FW6A-EL
Selector cable installation note

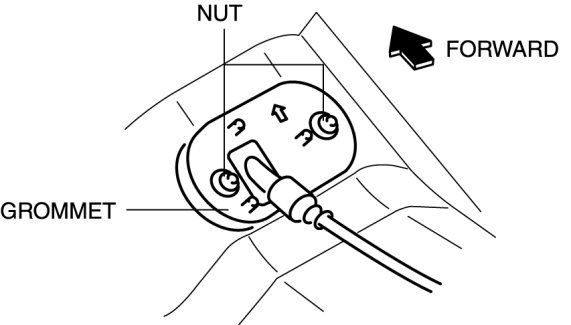

1. Install the grommet as shown in the figure.
Tightening torque
- 4.0-9.8 Nm {41-99 kgf-cm, 36-86 in-lbf}
2. Install the selector cable end (selector lever side) as shown in the figure.
3. Install the cable outer end (selector lever side) to the selector cable bracket as shown in the figure.

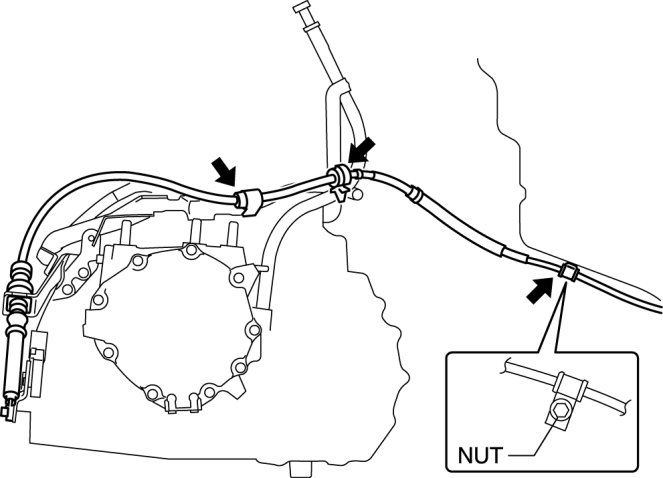

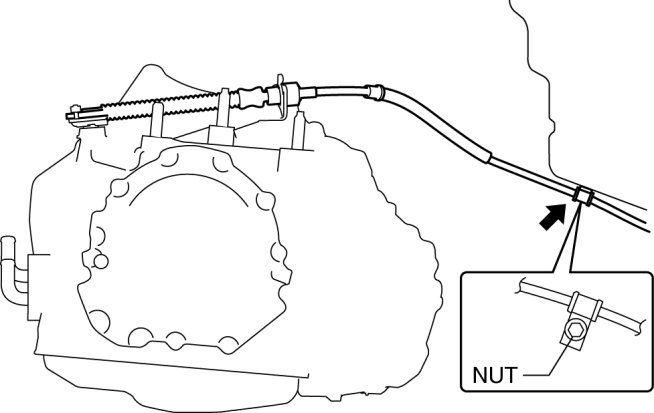

4. Install the clip as shown in the figure and tighten the nut.
FS5A-EL
FW6A-EL
Tightening torque
- 19-25 Nm {2.0-2.5 kgf-m, 15-18 ft-lbf}
5. Install the selector cable end (transaxle side) and the cable outer end (transaxle side).
CAUTION:
- When installing selector cable, make sure the boot is not twisted.

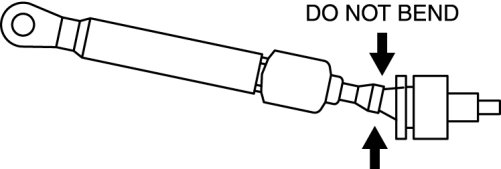

- Bending the selector cable in the manner shown in the figure will damage the cable and it may become loose when shifted. When installing the selector cable, hold it straight.

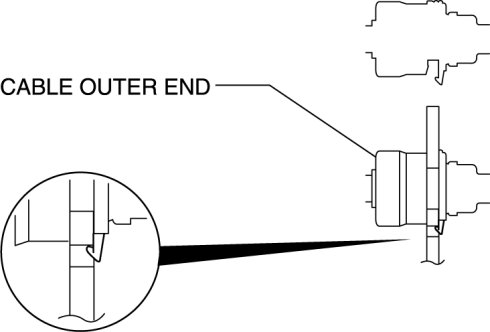

a. Install the cable outer end (transaxle side) to the selector cable bracket as shown in the figure.
b. Install the clip to the selector cable end (transaxle side) as shown in the figure.

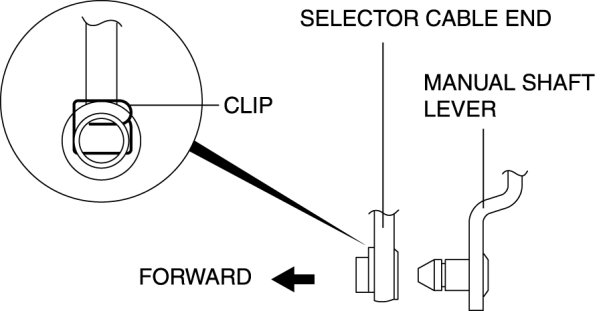

c. Install the selector cable end (transaxle side) to the manual shaft lever as shown in the figure.
FS5A-EL
FW6A-EL
6. Verify that the selector cable is securely installed.
7. Adjust the selector cable. (See Selector Cable Adjustment.)
Bulb Removal/Installation
1. Remove the battery cover. Removal and Replacement Removal and Replacement
2. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement
3. Remove the upper panel. Upper Panel Removal/Installation
4. Remove the knob. (See Selector Lever Removal/Installation.)
5. Remove the shift panel and indicator panel as a single unit.
a. Release the hooks securing the shift panel and console, and then release the hooks securing the shift panel and ashtray panel. (See Shift Panel Removal/Installation)
b. Lift up the shift panel and indicator panel and disconnect the bulb socket from the indicator panel.
c. Remove the shift panel and indicator pane from the selector lever as a single unit.

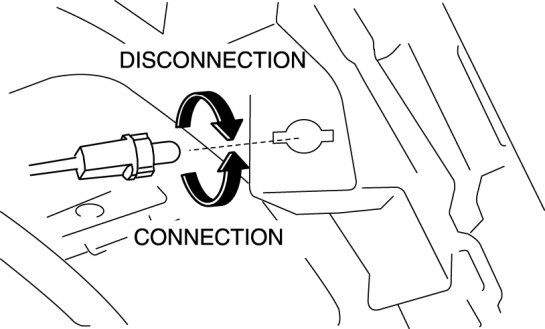

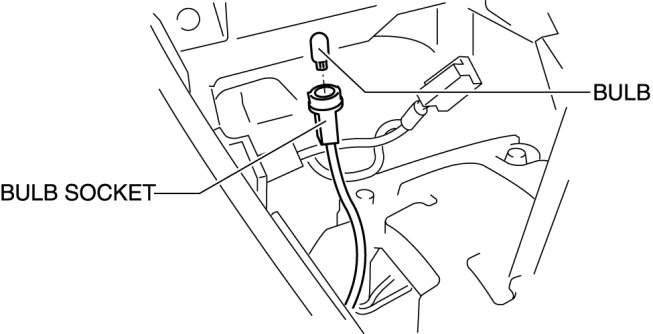

6. Remove the bulb from the bulb socket.
7. Install in the reverse order of removal.
Selector Cable Adjustment
1. Remove the battery cover. Removal and Replacement Removal and Replacement
2. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement
3. Remove the upper panel. Upper Panel Removal/Installation
4. Remove the knob. (See Selector Lever Removal/Installation.)
5. Remove the shift panel and indicator panel as a single unit.
a. Release the hooks securing the shift panel and console, and then release the hooks securing the shift panel and ashtray panel. Shift Panel Removal/Installation
b. Lift up the shift panel and indicator panel and disconnect the bulb socket from the indicator panel.
c. Remove the shift panel and indicator panel from the selector lever as a single unit.
6. Shift the selector lever to the P position.

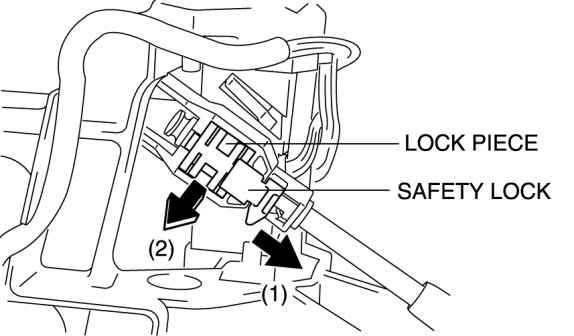

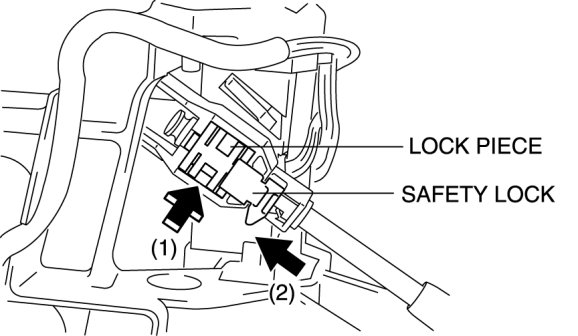

7. Unlock the lock piece of the selector cable end (selector lever side) in the order as shown in the figure.
8. Verify that the manual shaft is in the P position.
9. Lock the lock piece and safety lock of the selector cable end (selector lever side) in the order as shown in the figure.
