Input/Turbine Speed Sensor Inspection

INPUT/TURBINE SPEED SENSOR INSPECTION [FS5A-EL]

CAUTION:
- Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.

On-Vehicle Inspection

1. Perform the following procedures.
a. Remove the battery cover. Removal and Replacement

b. Disconnect the negative battery cable.

c. Remove the air cleaner component. Service and Repair

d. Disconnect the input/turbine speed sensor connector.

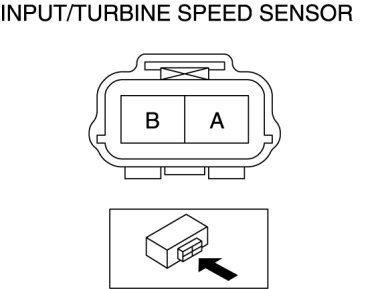

2. Measure the resistance between the input/turbine speed sensor terminals A and B.






- If there is any malfunction, replace the input/turbine speed sensor. Input/Turbine Speed Sensor Removal/Installation

Input/turbine speed sensor specification
- 250-600 ohms

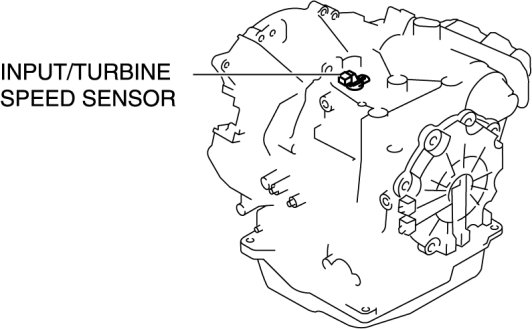

Off-Vehicle Inspection

1. Measure the resistance between the input/turbine speed sensor terminals A and B.






- If there is any malfunction, replace the input/turbine speed sensor. Input/Turbine Speed Sensor Removal/Installation

Input/turbine speed sensor specification
- 250-600 ohms
