Rear Suspension - Shock Absorber Removal/Installation

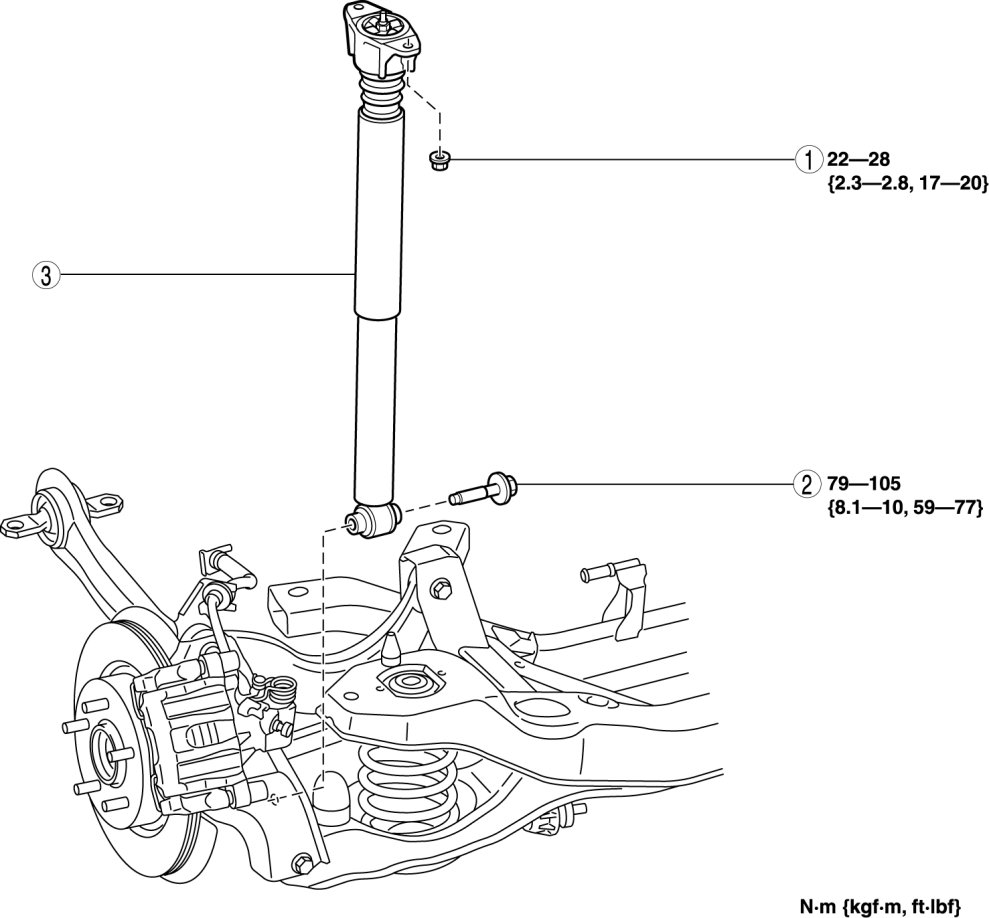

REAR SHOCK ABSORBER REMOVAL/INSTALLATION

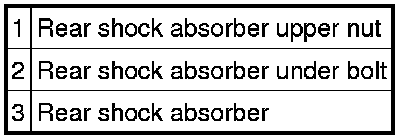

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.
