Rear Suspension - Stabilizer Control Link Inspection

REAR STABILIZER CONTROL LINK INSPECTION

1. Remove the rear stabilizer control link from the vehicle. Rear Suspension - Stabilizer Removal/Installation

2. Inspect for bending or damage. If there is any malfunction, replace the rear stabilizer control link.

3. Rotate the ball joint stud 10 times and shake it side to side 10 times.

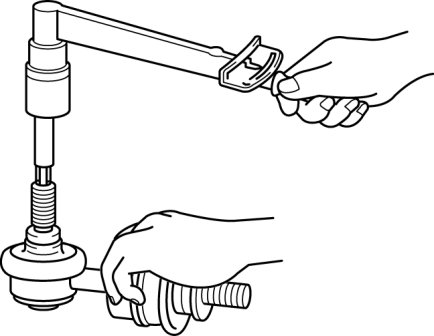

4. Measure the ball joint rotational torque using an Allen wrench and a torque wrench.






Rear stabilizer control link ball joint rotational torque
- 0.5-2.0 Nm {6-20 kgf-cm, 5-17 in-lbf}

- If not within the specification, replace the rear stabilizer control link.
