Lateral Stabilizer Rod: Service and Repair

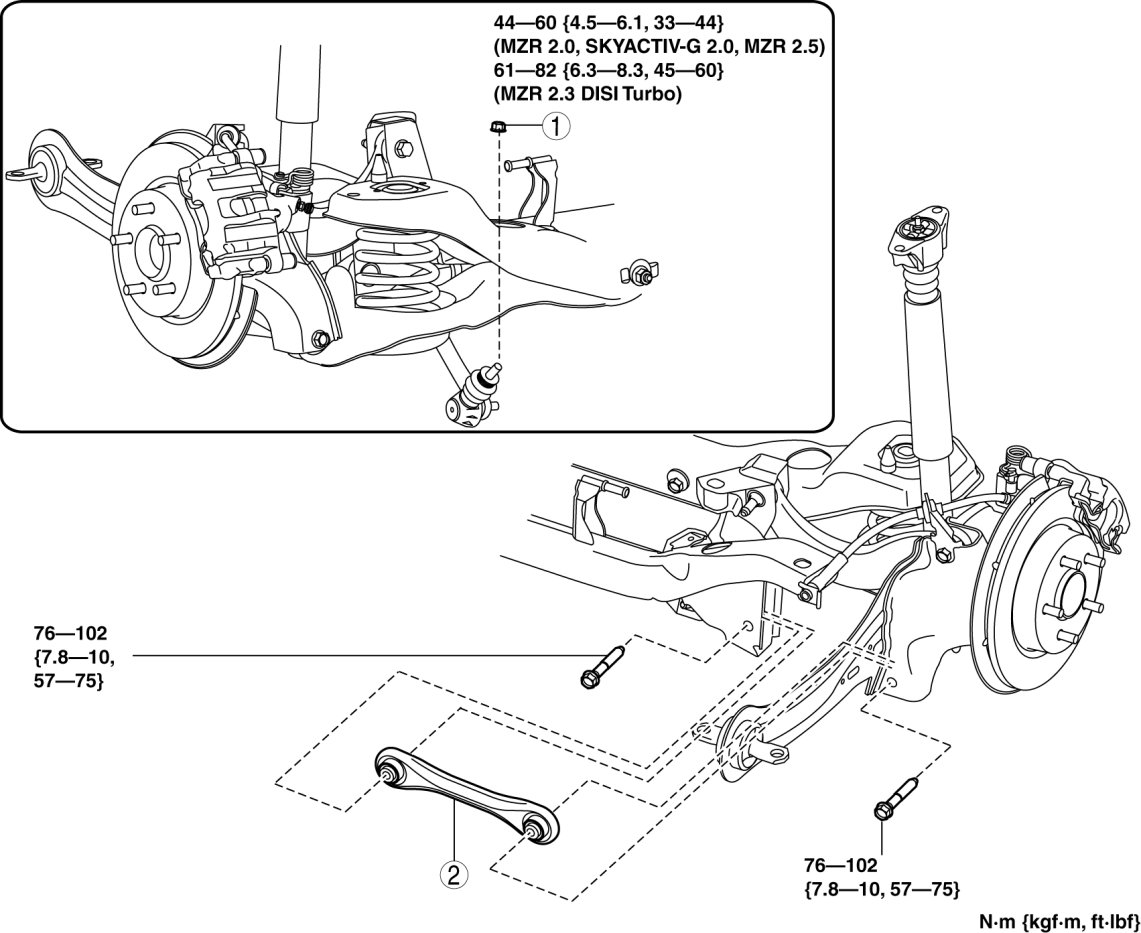

REAR LATERAL LINK REMOVAL/INSTALLATION

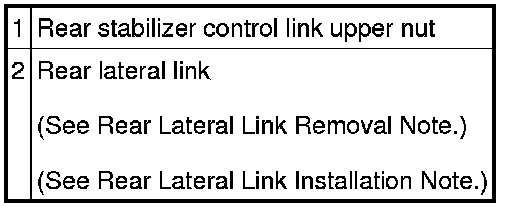

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.

3. Inspect the wheel alignment and adjust it if necessary. Rear Wheel Alignment









Rear Lateral Link Removal Note

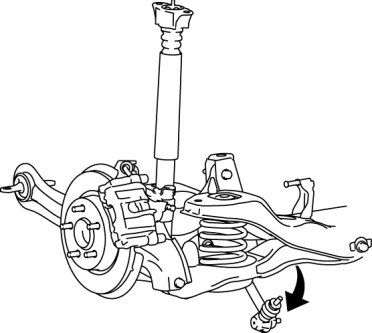

1. Rotate the rear stabilizer component downwards as shown in the figure.

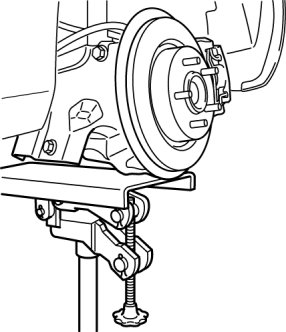

2. Jack up the vehicle to the unloaded condition, and support the trailing link using a jack.






3. Remove the rear lateral link.

Rear Lateral Link Installation Note

1. Jack up the vehicle to the unloaded condition, and support the trailing link using a jack.

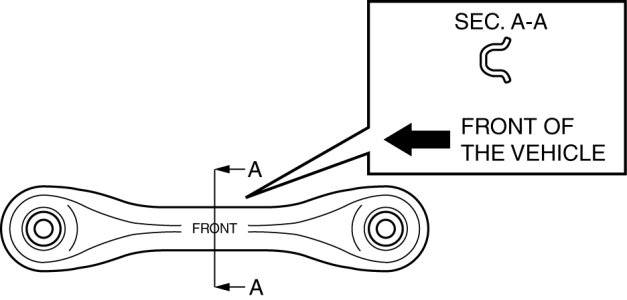

2. Install the rear lateral link so that the rib is facing toward the front of the vehicle.
