Steering Wheel And Column Removal/Installation - Without Advanced Keyless Entry And Push Button Start System

STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

WARNING:
- Handling the air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings before handling the air bag module. Air Bag System Service Warnings Air Bag System Service Cautions

1. Remove the driver-side front scuff plate. Front Scuff Plate Removal/Installation

2. Remove the driver-side front side trim. Front Side Trim Removal/Installation

3. Remove the hood release lever. Service and Repair

4. Remove the upper panel. Upper Panel Removal/Installation

5. Remove the shift knob (MTX). Manual Transaxle Shift Mechanism Removal/Installation [G35M-R] Manual Transaxle Shift Mechanism Removal/Installation [G66M-R]

6. Remove the selector lever knob (ATX). Automatic Transaxle Shift Mechanism Removal/Installation

7. Remove the shift panel. Shift Panel Removal/Installation

8. Remove the side wall. Side Wall Removal/Installation

9. Remove the console. Console Removal/Installation

10. Remove the lower panel. Lower Panel Removal/Installation

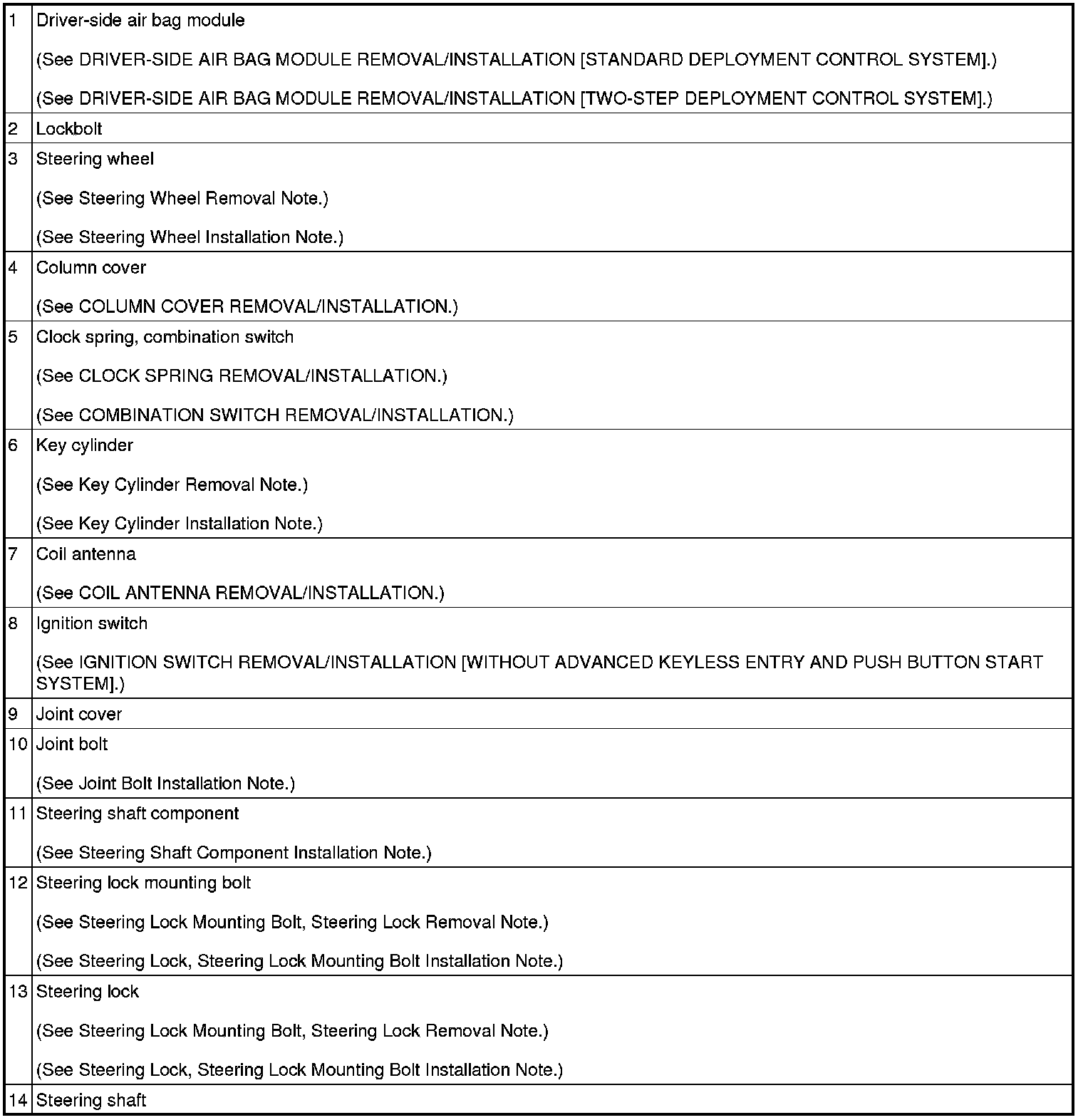

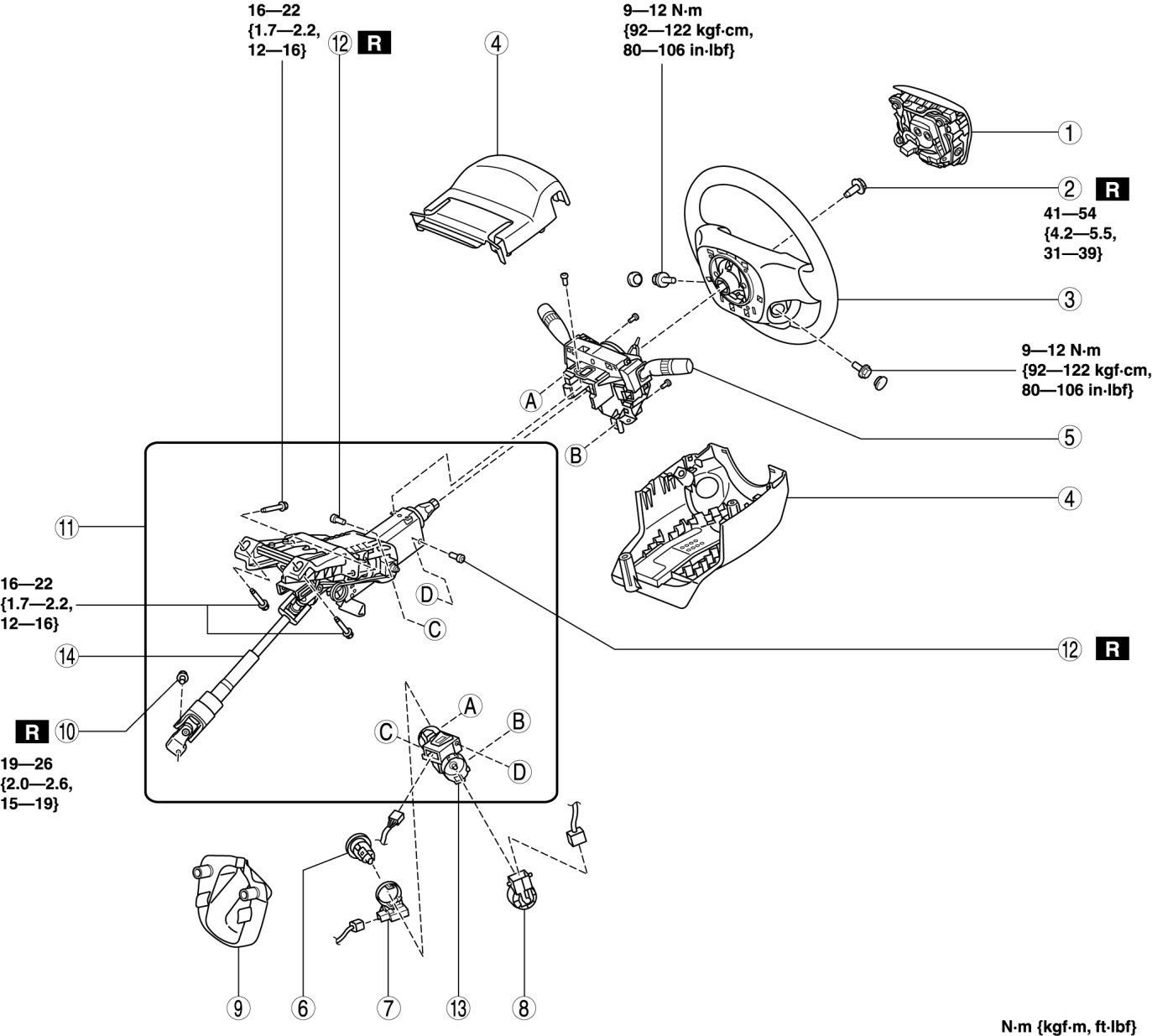

11. Remove in the order indicated in the table.

12. Install in the reverse order of removal.









Steering Wheel Removal Note

CAUTION:
- Do not try to remove the steering wheel by hitting the shaft with a hammer. The column will be damaged.

1. Set the wheels in the straight-ahead position.

2. Remove the steering wheel using any commercially available puller.

Key Cylinder Removal Note

1. Insert the key into the key cylinder and turn it to the ACC position.

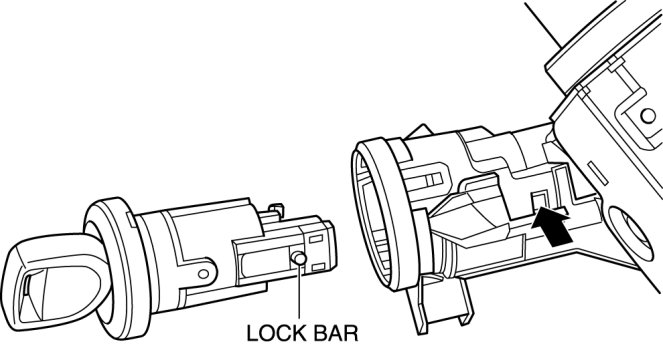

2. Insert a pin from the position indicated by the arrow in the figure, and while pressing the lock bar with the pin, remove the key cylinder from the steering lock component.






Steering Lock Mounting Bolt, Steering Lock Removal Note

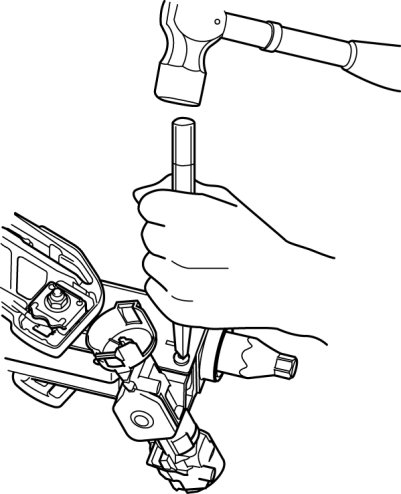

1. Make a groove in the heads of the steering lock mounting bolts using a chisel and hammer.






2. Remove the steering lock.

Steering Lock, Steering Lock Mounting Bolt Installation Note

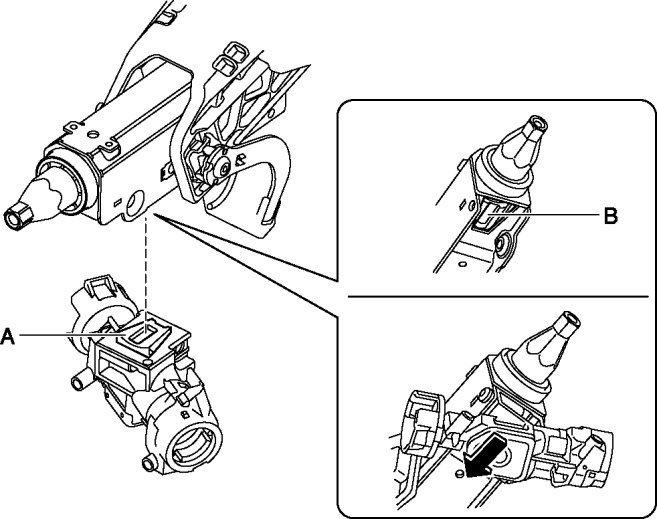

1. Assemble area A of the steering lock to area B of the steering shaft, and press the steering lock in the direction of the arrow in the figure until it contacts the steering shaft.






2. Temporarily install the steering lock to the steering shaft using a new steering lock mounting bolt.

3. Tighten the steering lock mounting bolts in the order shown in the figure until the heads break off.






Steering Shaft Component Installation Note

1. Verify that the adjusting lever is in the LOCK position.

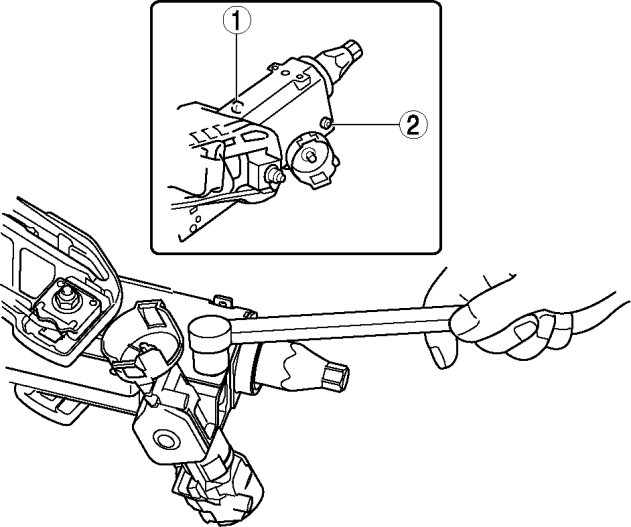

2. Tighten the bolts in alphabetical order.






Joint Bolt Installation Note

1. Install the steering shaft component to the steering gear.

2. After temporarily install the joint bolt to the intermediate shaft joint, verify that the joint bolt is installed to the groove of the steering gear.






3. Tighten the joint bolt to the specified torque.

Key Cylinder Installation Note

1. Insert the key into the key cylinder and turn it to the ACC position.

2. Install the key cylinder to the steering lock.

Steering Wheel Installation Note

1. Set the wheels in the straight-ahead position and install the steering wheel.
