Programming and Relearning

ELECTRO HYDRAULIC POWER ASSIST STEERING (EHPAS) CONTROL MODULE CONFIGURATION

CAUTION:
- If the EHPAS CM configuration is not completed, the EHPAS will not operate properly. If the EHPAS CM is replaced, always carry out the EHPAS CM configuration so that the EHPAS operates properly.

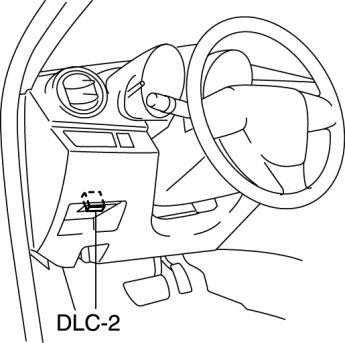

1. Connect the M-MDS (IDS) to the DLC-2.






2. After the vehicle is identified, select the following items from the initialization screen of the IDS.

- Select the "Module Programming".

3. Then, select items from the screen menu in the following order.
1 Select "Programmable Module Installation".
2 Select "EPS".

4. Perform the configuration according to the directions on the screen.

5. Retrieve DTCs by the IDS, then verify that there is no DTC present.

- If a DTC (s) is detected, perform the applicable DTC inspection. Electro Hydraulic Power Assist Steering (EHPAS) On-Board Diagnosis
