Start / Stop Switch: Testing and Inspection

PUSH BUTTON START INSPECTION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the following parts:
a. Front scuff plate (Driver side) Front Scuff Plate Removal/Installation

b. Front side trim (Driver side) Front Side Trim Removal/Installation

c. Upper panel Upper Panel Removal/Installation

d. Shift knob (MTX) Manual Transaxle Shift Mechanism Removal/Installation [G66M-R]

e. Selector lever knob (ATX) Automatic Transaxle Shift Mechanism Removal/Installation

f. Shift panel Shift Panel Removal/Installation

g. Side wall Side Wall Removal/Installation

h. Console Console Removal/Installation

3. Set the hood release lever out of the way. Service and Repair

4. Partially peel back the seaming welt.

5. Remove the lower panel. Lower Panel Removal/Installation

6. Remove the push button start. Service and Repair

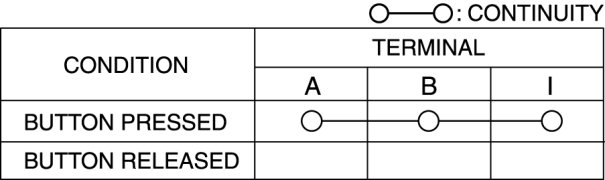

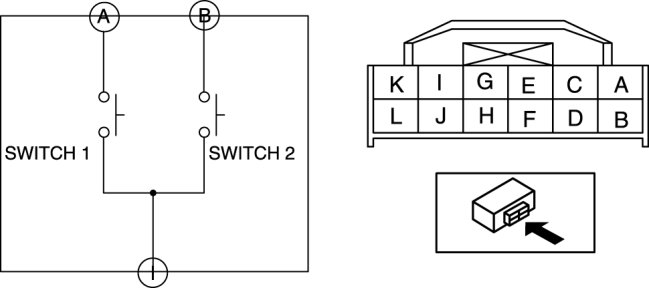

7. Verify that the continuity is as indicated in the table.






- If not as indicated in the table, replace the push button start.

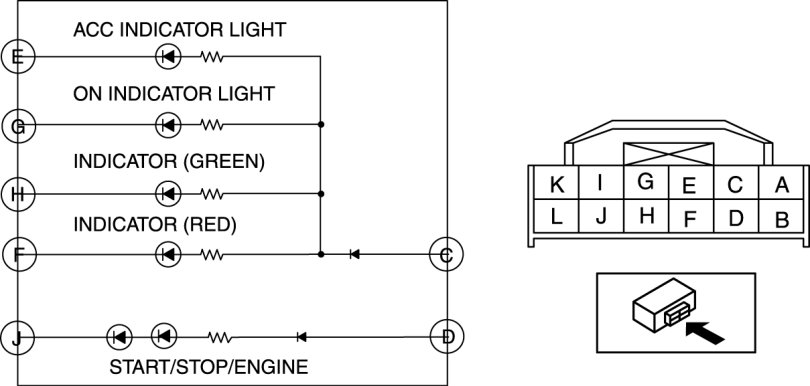

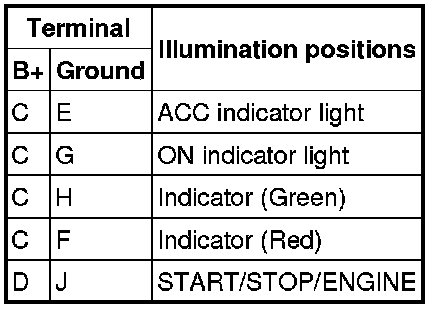

8. Apply battery positive voltage and connect the ground to the push button start terminals and verify that the LED illuminates.

- If the LEDs does not illuminate, replace the push button start.
