Home >> Mazda >> 2012 >> 3 L4-2.0L (MZR) >> Repair and Diagnosis >> Specifications >> Capacity Specifications >> Engine >> System Specifications

System Specifications

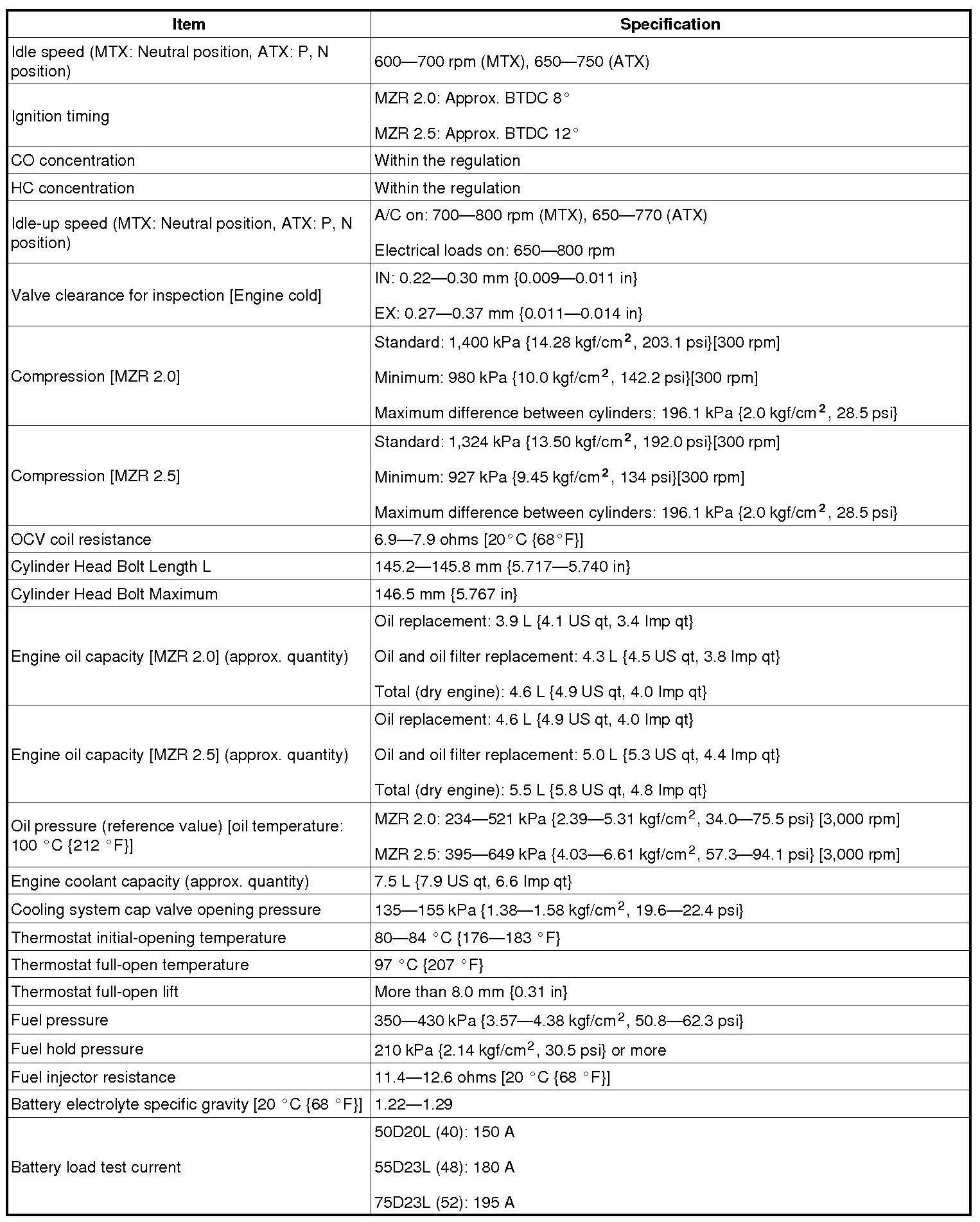

ENGINE TECHNICAL DATA [MZR 2.0, MZR 2.5]

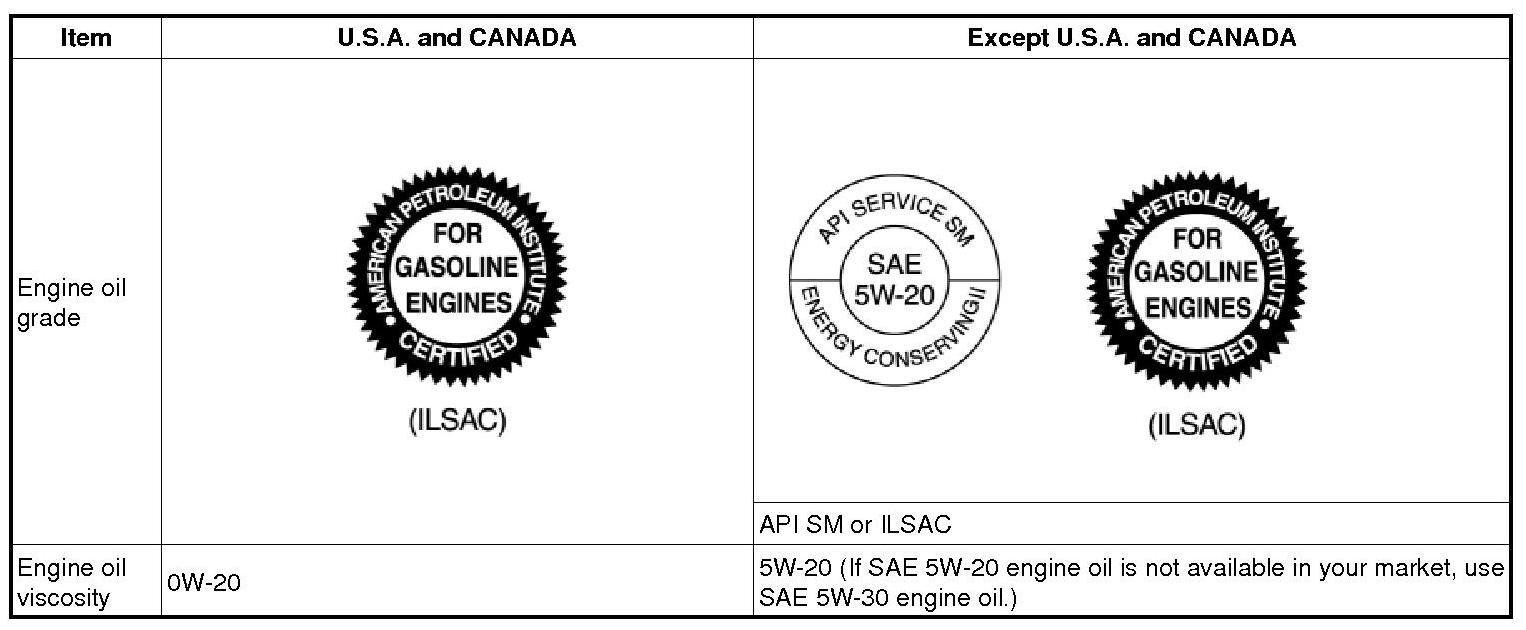

Engine oil specification
