Standard Deployment Control System
Standard Deployment Control System

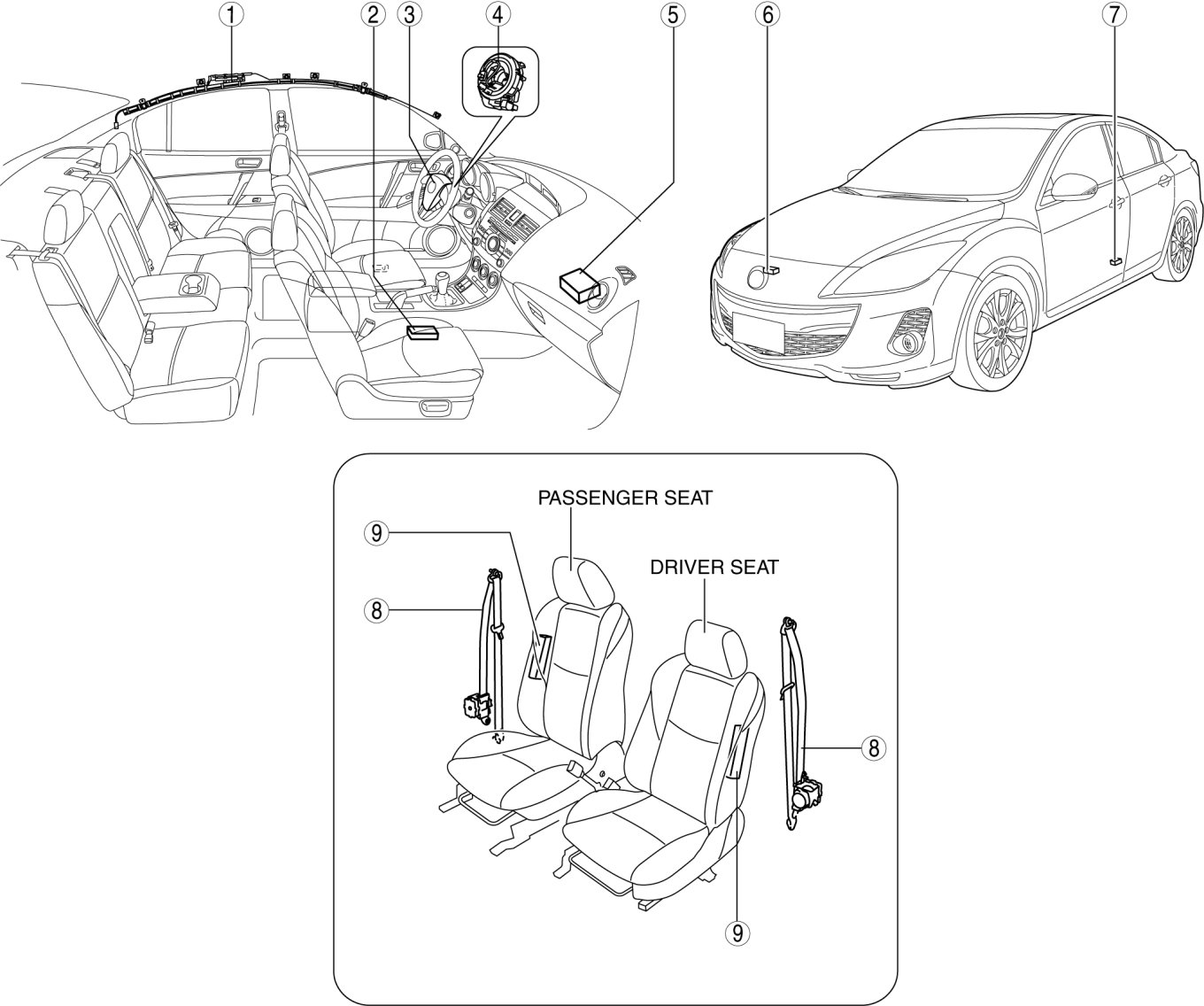

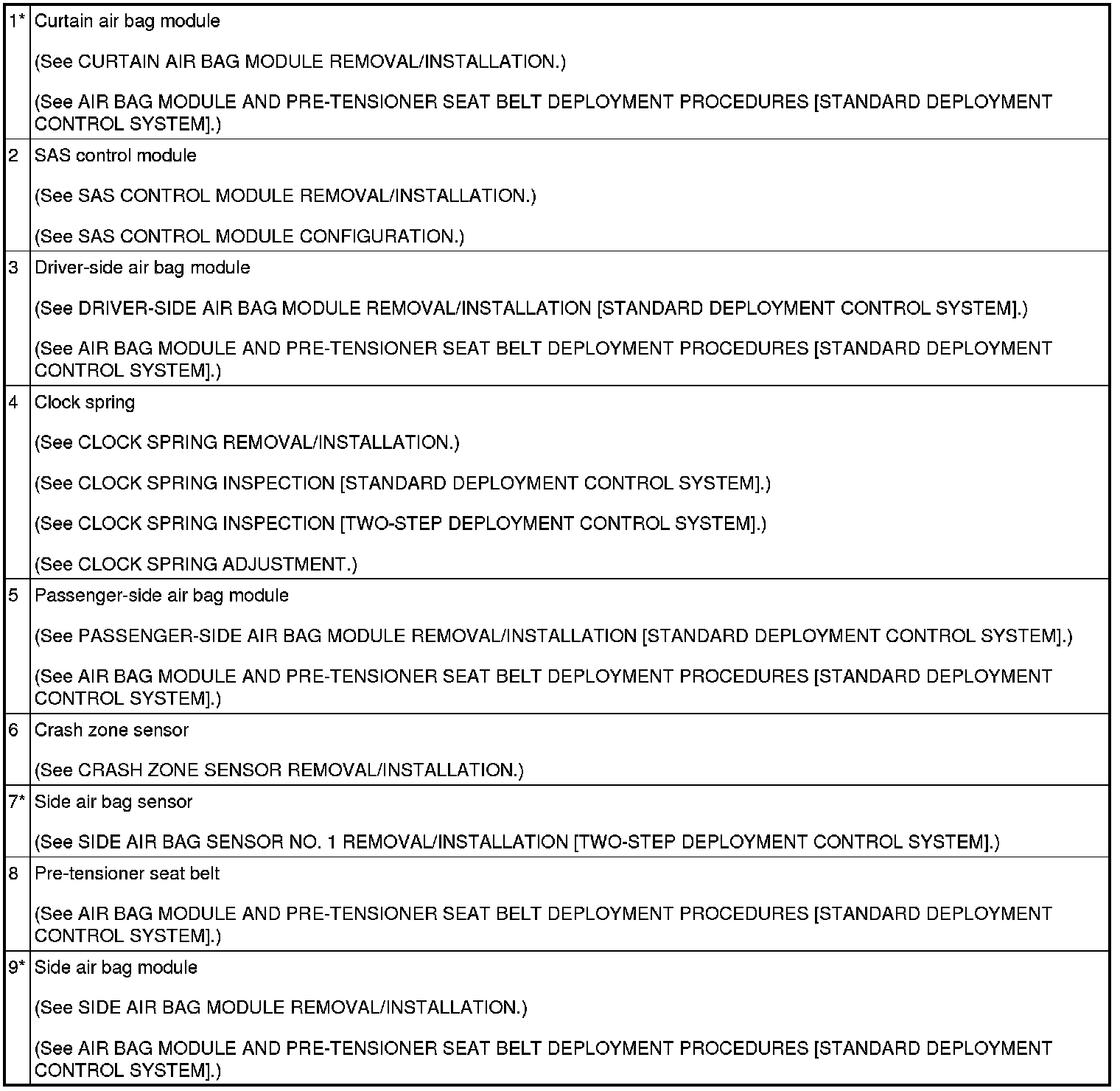

AIR BAG SYSTEM LOCATION INDEX [STANDARD DEPLOYMENT CONTROL SYSTEM]
*
Vehicles with side air bag system
