Transmission Position Sensor/Switch
>>
Locations
>>
Component Locations
Component Locations

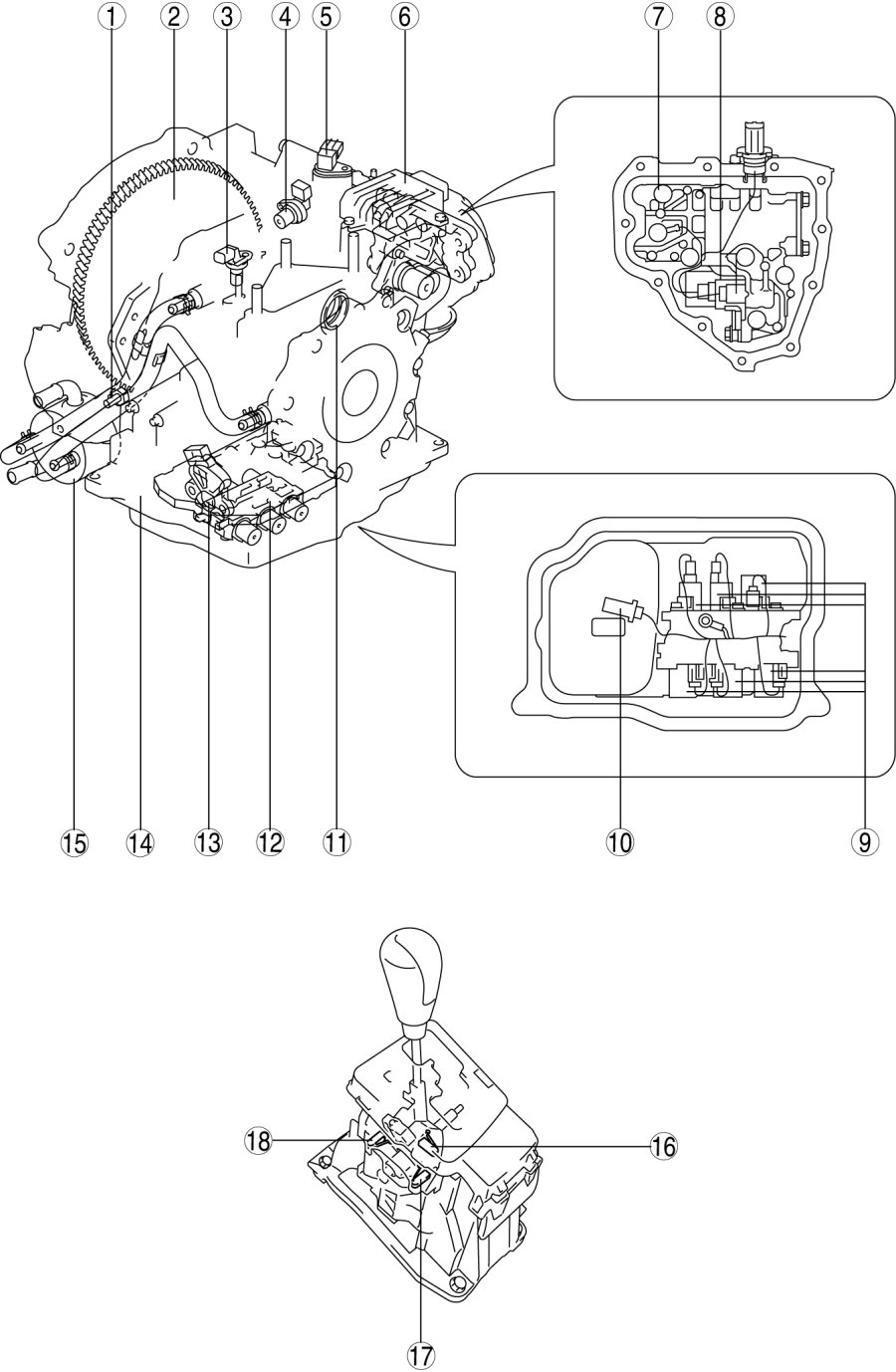

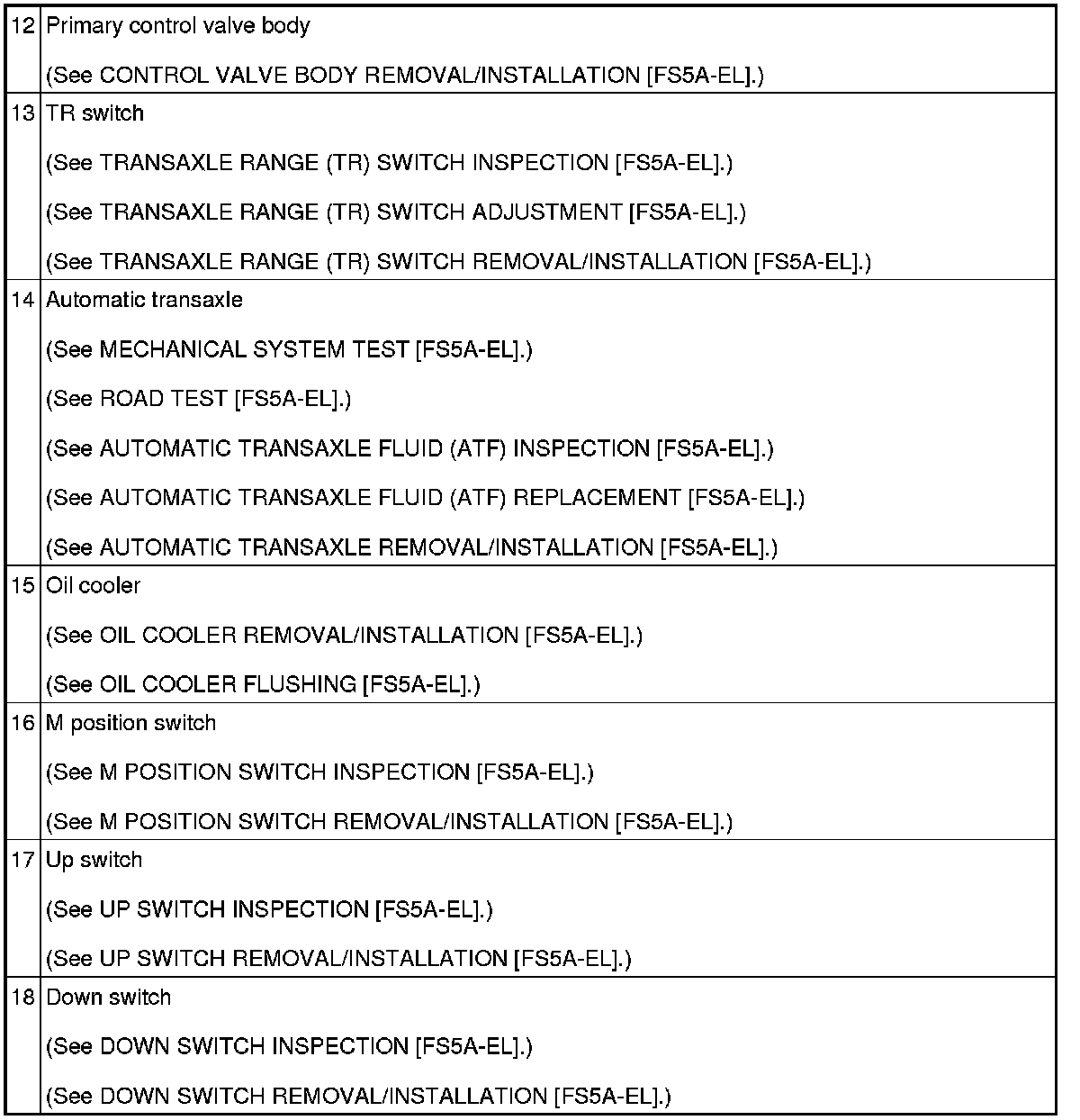

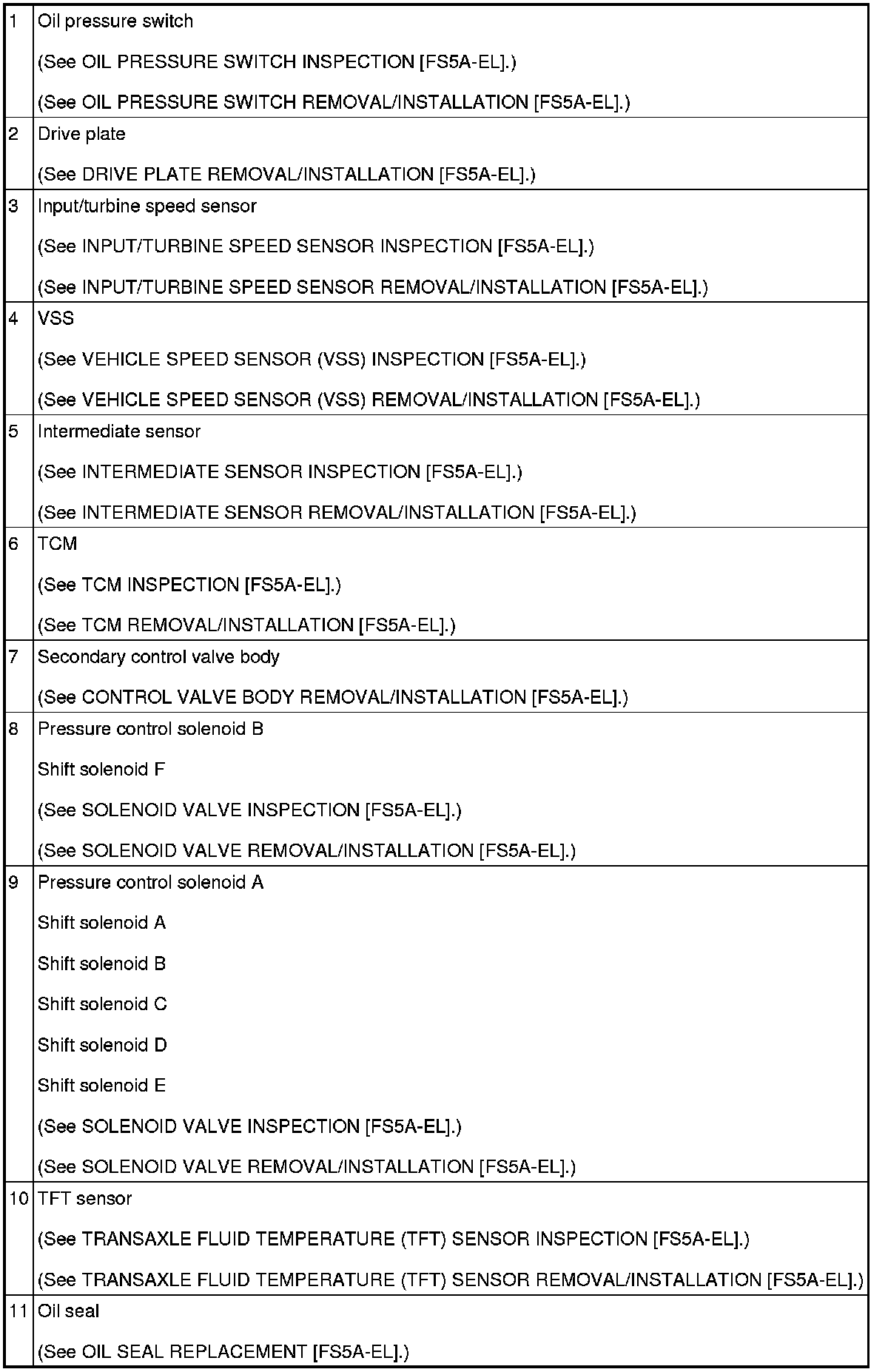

AUTOMATIC TRANSAXLE LOCATION INDEX [FS5A-EL]
