Hazard Warning Switch: Testing and Inspection

HAZARD WARNING SWITCH INSPECTION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the center panel. Center Panel Removal/Installation

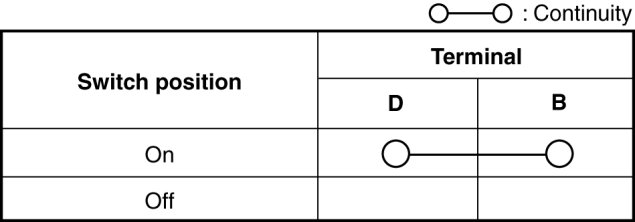

3. Verify that the continuity between the hazard switch terminals is as indicated in the table.






- If not as indicated in the table, replace the hazard warning switch.






4. Apply battery voltage to hazard switch terminal A, and connect terminal F to ground.

5. Verify that the LED illuminates.

- If there is any malfunction, replace the hazard warning switch.
