Key Reminder Switch: Testing and Inspection

KEY REMINDER SWITCH INSPECTION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the column cover. Service and Repair

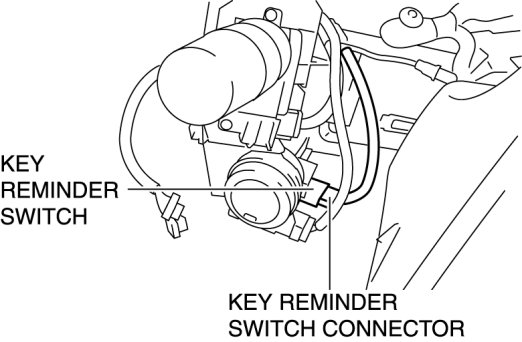

3. Disconnect the key reminder switch connector.

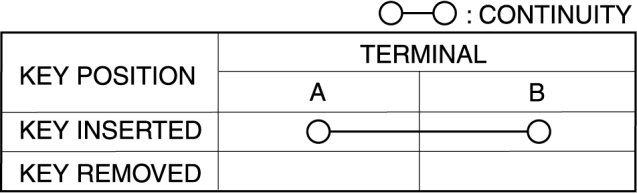

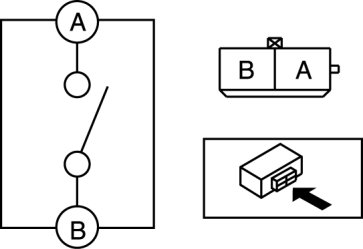

4. Verify that the continuity between the key reminder switch terminals is as indicated in the table.






- If not as indicated in the table, replace the key reminder switch.
