Fuel Gauge Sender: Testing and Inspection

FUEL GAUGE SENDER UNIT INSPECTION

MZR 2.3 DISI Turbo, SKYACTIV-G 2.0

NOTE:
- The fuel gauge sender unit is integrated with the fuel pump unit.

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement

2. Remove the rear seat cushion. Rear Seat Cushion Removal/Installation

3. Remove the fuel pump unit. Overhaul Overhaul

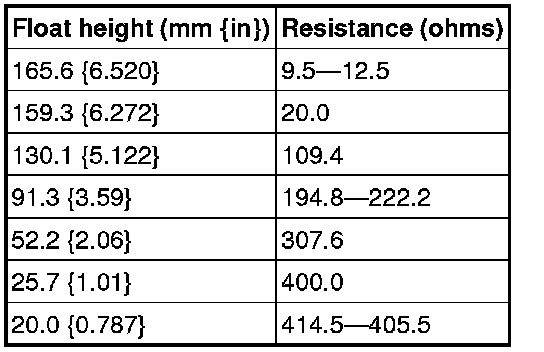

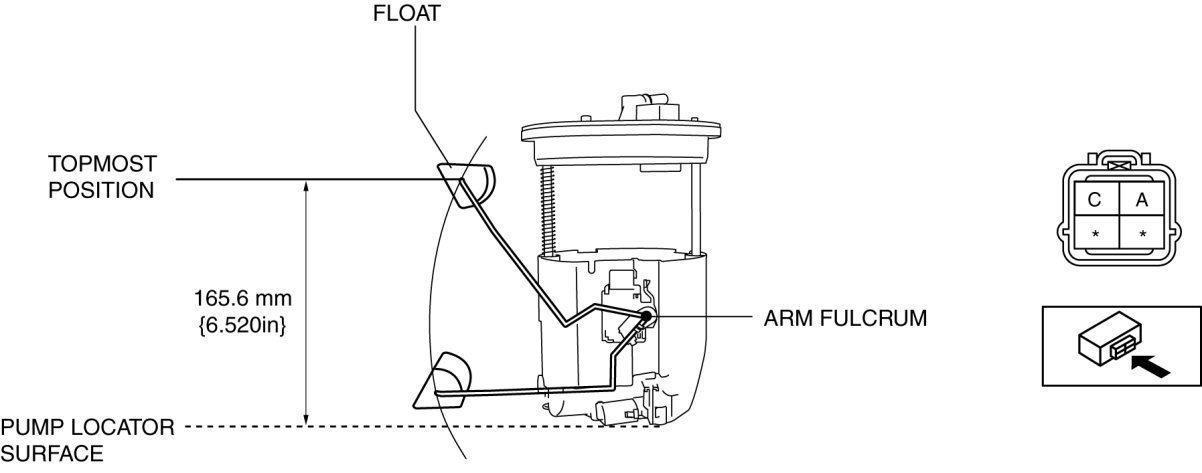

4. Verify that the resistance between terminals A and C of the fuel gauge sender unit based on the height of the float as shown in the figure.






- If they are not as shown in the figure, replace the fuel pump unit.





MZR 2.0, MZR 2.5

NOTE:
- The fuel gauge sender unit is integrated with the fuel pump unit.

1. Disconnect the negative battery cable. Removal and Replacement

2. Remove the rear seat cushion. Rear Seat Cushion Removal/Installation

3. Remove the fuel pump unit. Overhaul Overhaul

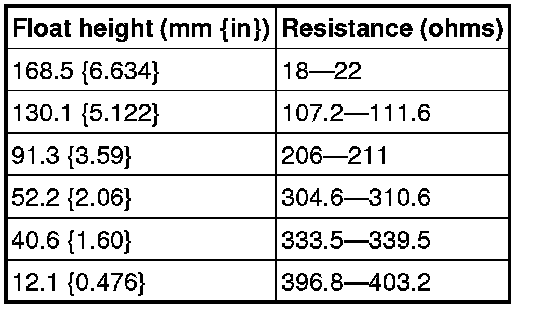

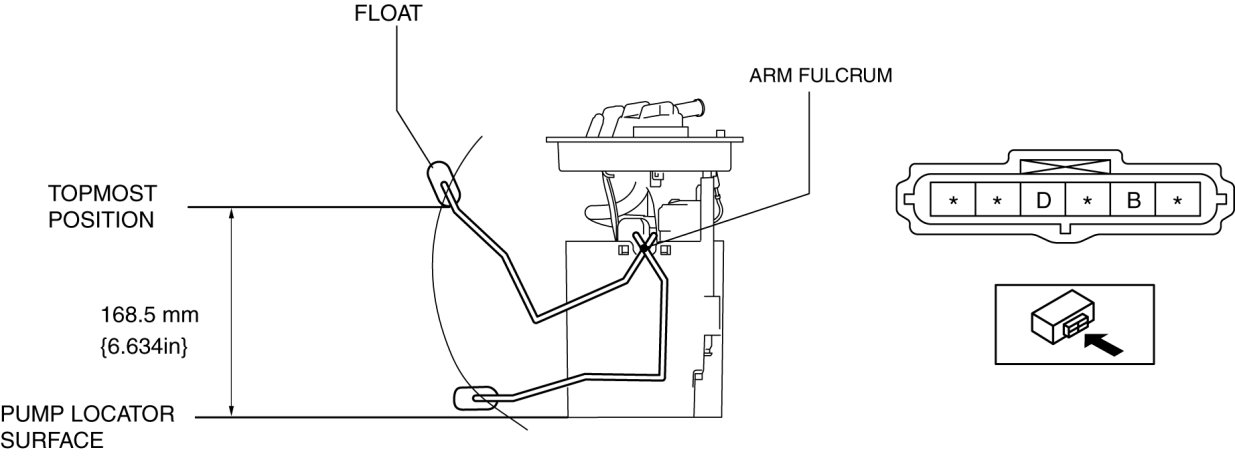

4. Verify that the resistance between terminals B and D of the fuel gauge sender unit based on the height of the float as shown in the figure.






- If they are not as shown in the figure, replace the fuel pump unit.
