Antilock Brake System (ABS)

REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION

1. Remove the under cover. Service and Repair

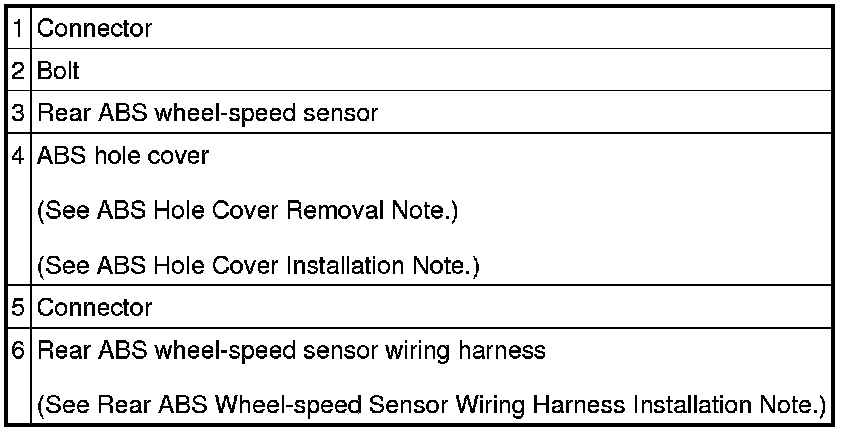

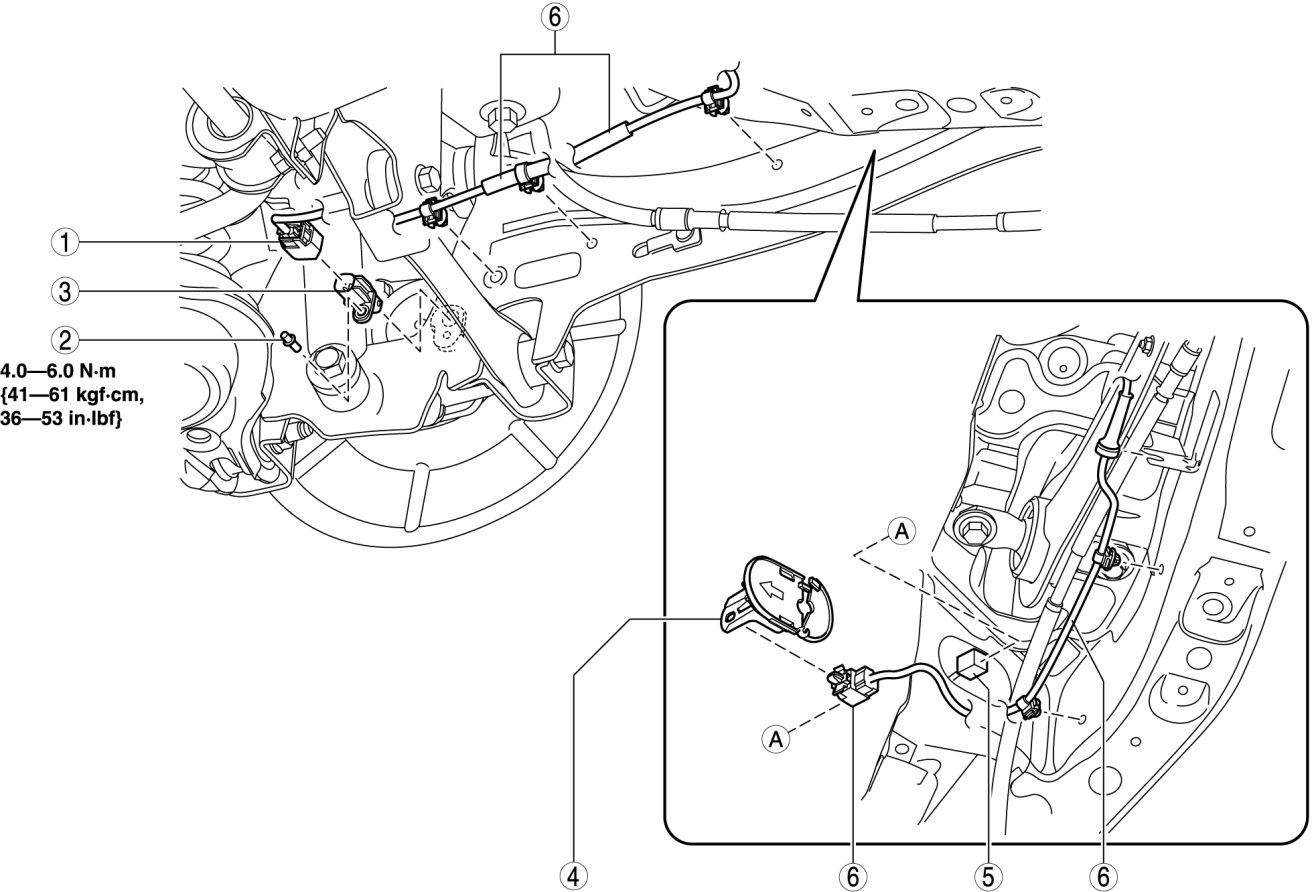

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.









ABS Hole Cover Removal Note

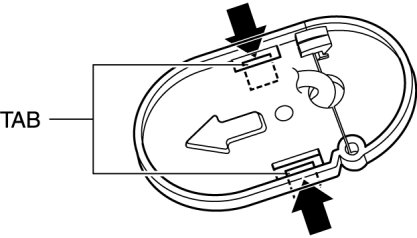

1. Press the tab of the ABS hole cover to separate the ABS hole cover from the body.






2. Remove the ABS hole cover from the body.

Rear ABS Wheel-speed Sensor Wiring Harness Installation Note

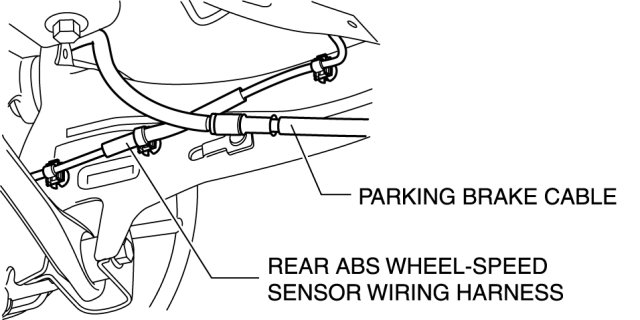

1. Pass the rear ABS wheel-speed sensor wiring harness outside the rear parking brake cable as shown in the figure.






2. Install the rear ABS wheel-speed sensor wiring harness.

ABS Hole Cover Installation Note

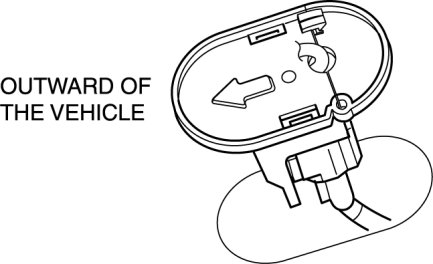

1. Install the ABS hole cover into the body so that the arrow on it is facing toward the outer side of the vehicle.
