Liftgate Opener Switch Removal/Installation

LIFTGATE OPENER SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the following parts:
a. Liftgate upper trim

b. Liftgate side trim

c. Liftgate lower trim

d. Liftgate latch and lock actuator Liftgate Latch And Lock Actuator Removal/Installation

3. Disconnect the connector.

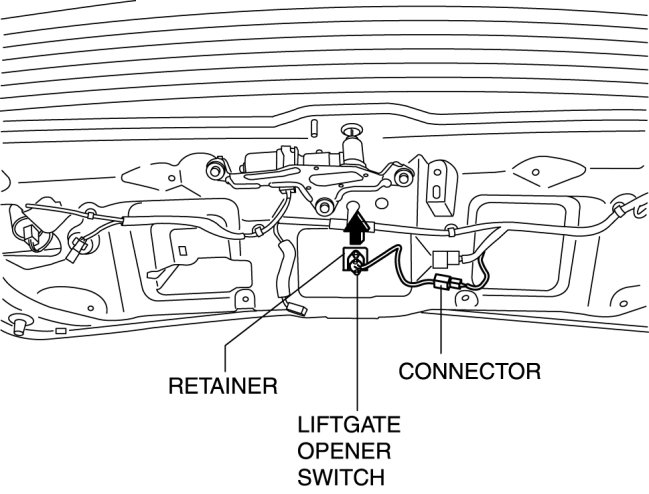

4. Pull out the retainer in the direction of the arrow.

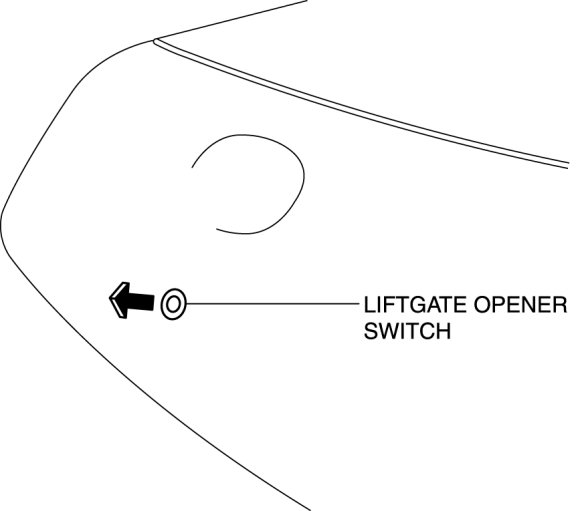

5. Remove the liftgate opener switch.






6. Install in the reverse order of removal.
