Sunroof / Moonroof Switch: Testing and Inspection

SUNROOF SWITCH INSPECTION

NOTE:
- The sunroof switch is together with the front map light.

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the map light from the headliner. Map Light Removal/Installation

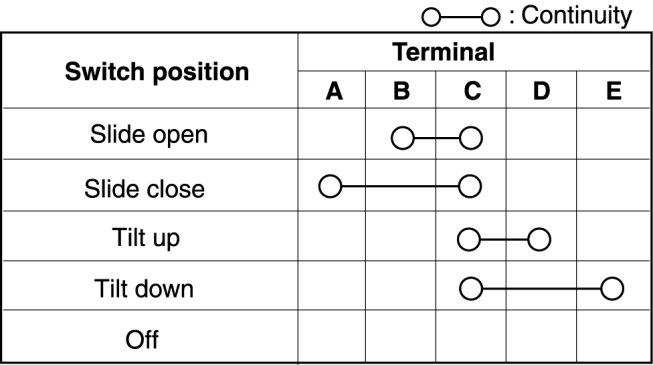

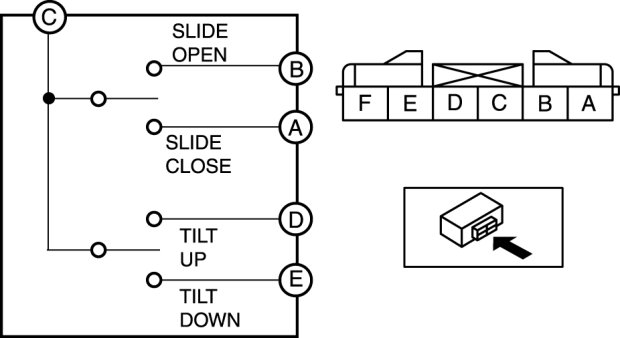

3. Inspect for continuity between the sunroof switch terminals using an ohmmeter.






- If not as specified, replace the sunroof switch.
