Steering Mounted Controls Assembly: Service and Repair

STEERING SWITCH REMOVAL/INSTALLATION

WARNING:
- Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module. Air Bag System Service Warnings Air Bag System Service Cautions

1. Disconnect the negative battery cable and wait for 1 min or more. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the driver-side air bag module. Standard Deployment Control System Two-Step Deployment Control System

3. Remove the steering wheel. Steering Wheel And Column Removal/Installation - Without Advanced Keyless Entry And Push Button Start System Steering Wheel And Column Removal/Installation - With Advanced Keyless Entry And Push Button Start System

4. Remove the screw.

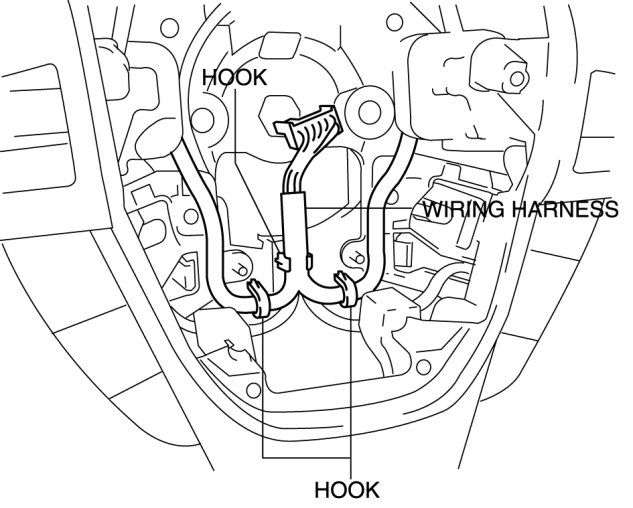

5. Remove the wiring harness from the cover hook.

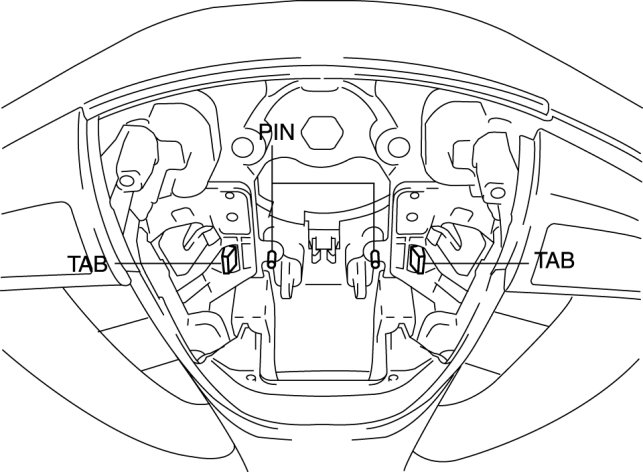

6. Remove the cover tabs and pins from the steering wheel.

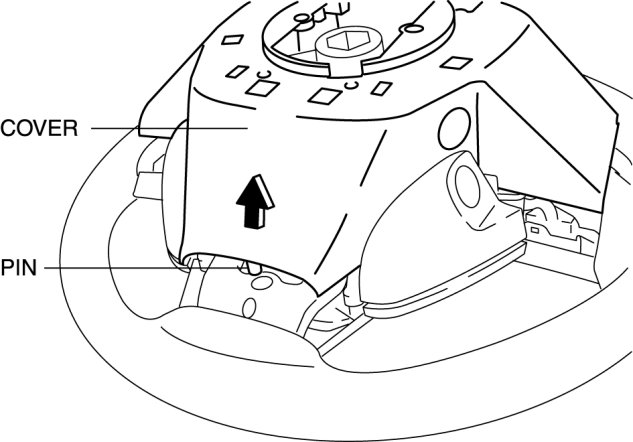

7. Remove the cover.

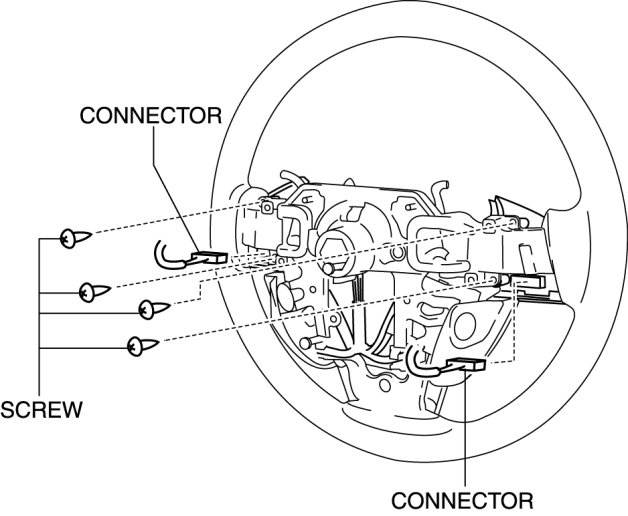

8. Disconnect the connector.

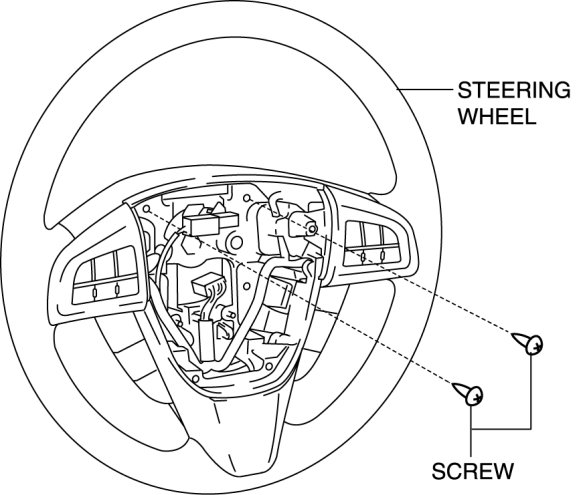

9. Remove the screw.

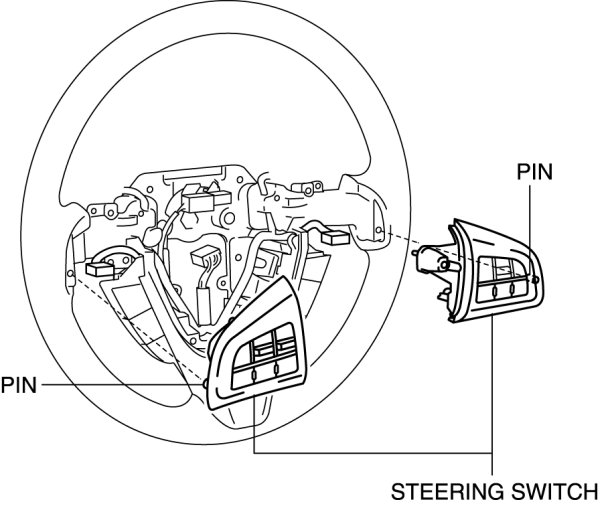

10. Remove the steering switch pins from the steering wheel.






11. Remove the steering switch.

12. Install in the reverse order of removal.
