Two Step Deployment Control System





ON-BOARD DIAGNOSTIC WIRING DIAGRAM [TWO-STEP DEPLOYMENT CONTROL SYSTEM]

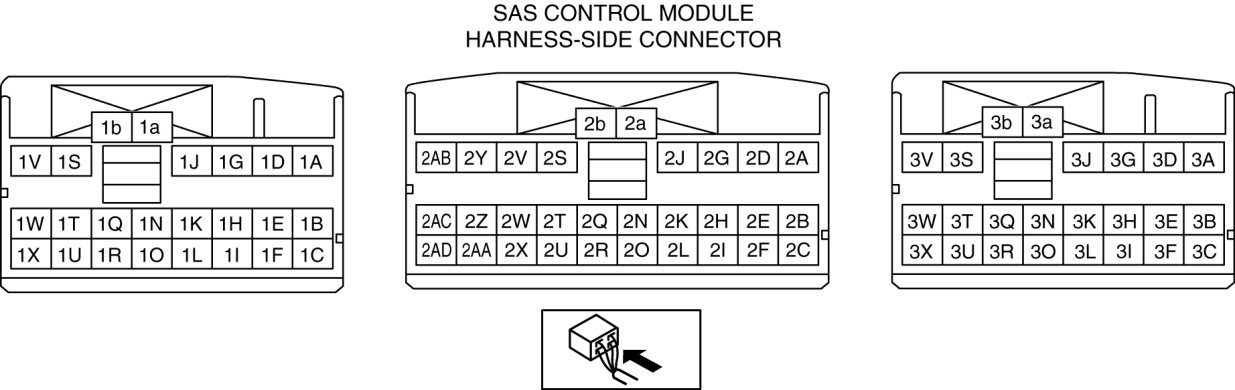

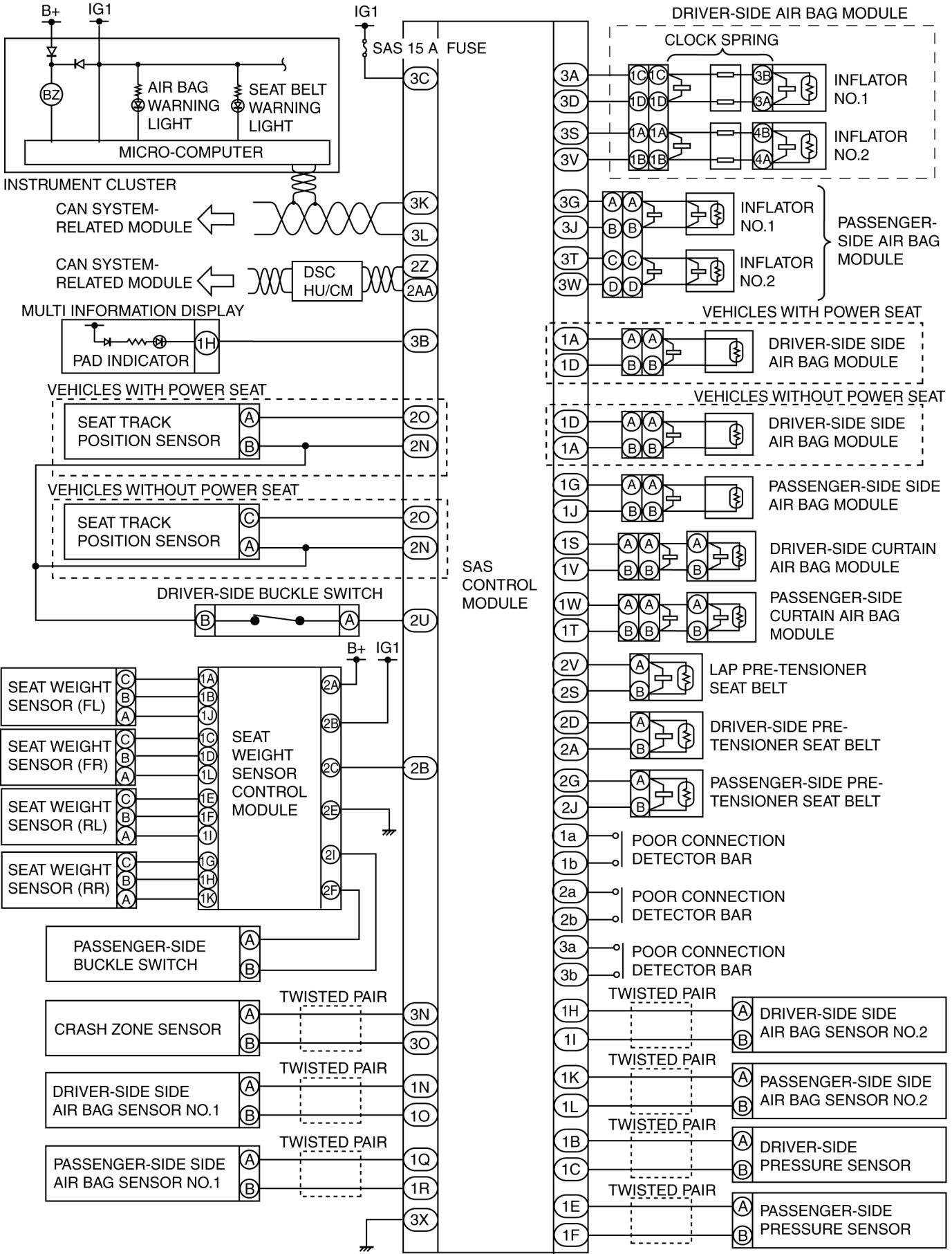

Vehicles With DSC

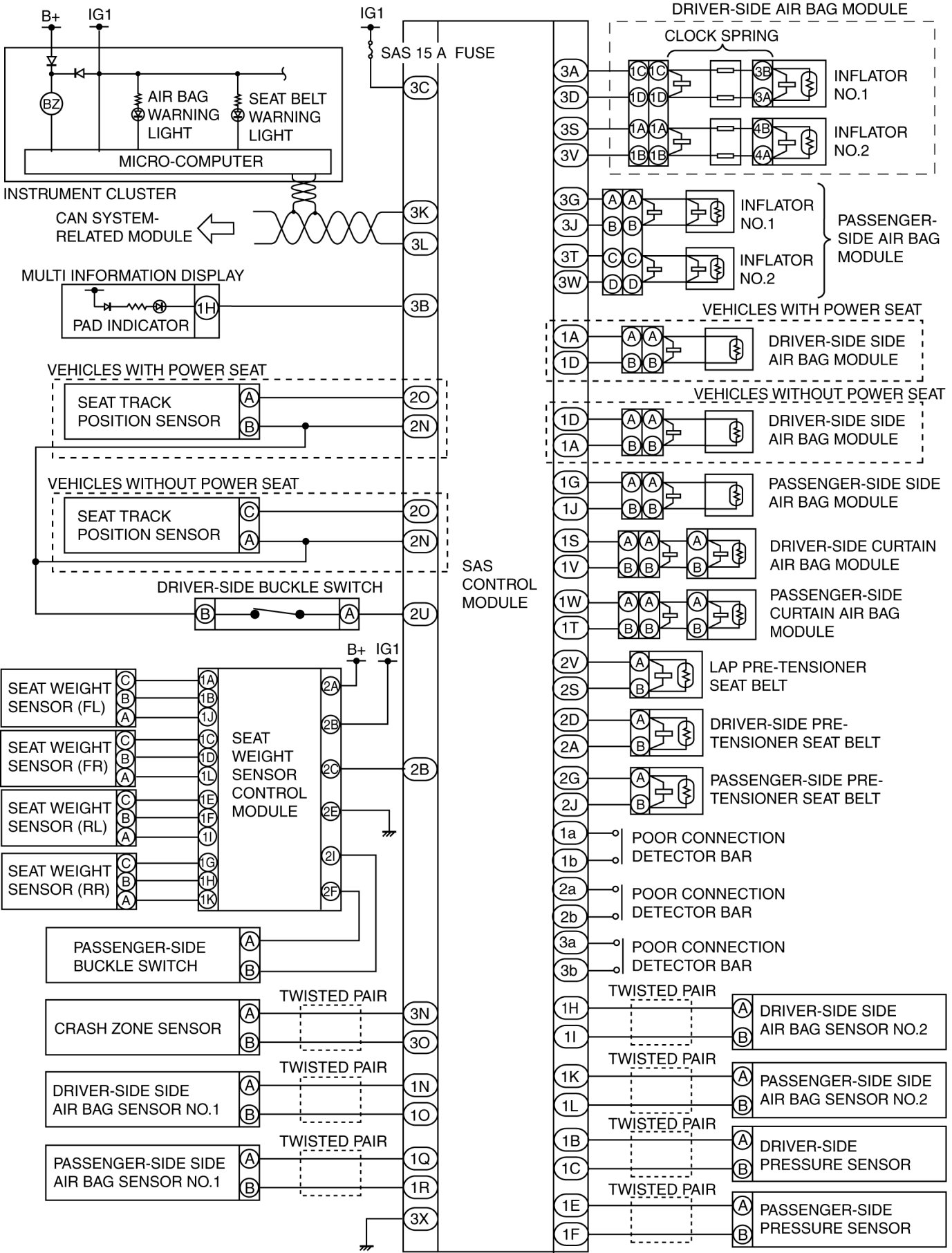

Vehicles Without DSC
