Standard Deployment Control System





ON-BOARD DIAGNOSTIC WIRING DIAGRAM [STANDARD DEPLOYMENT CONTROL SYSTEM]

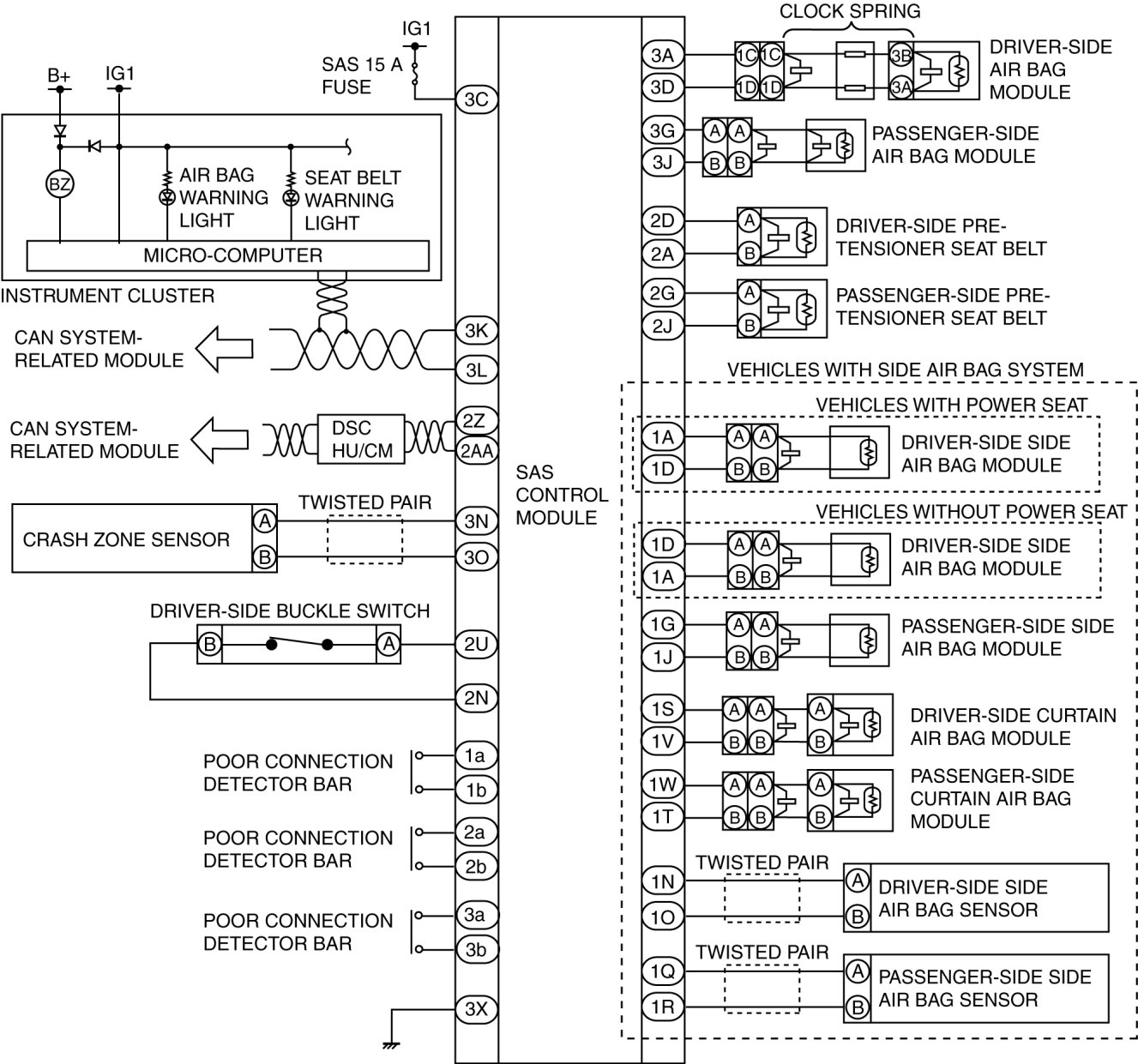

Vehicles With DSC

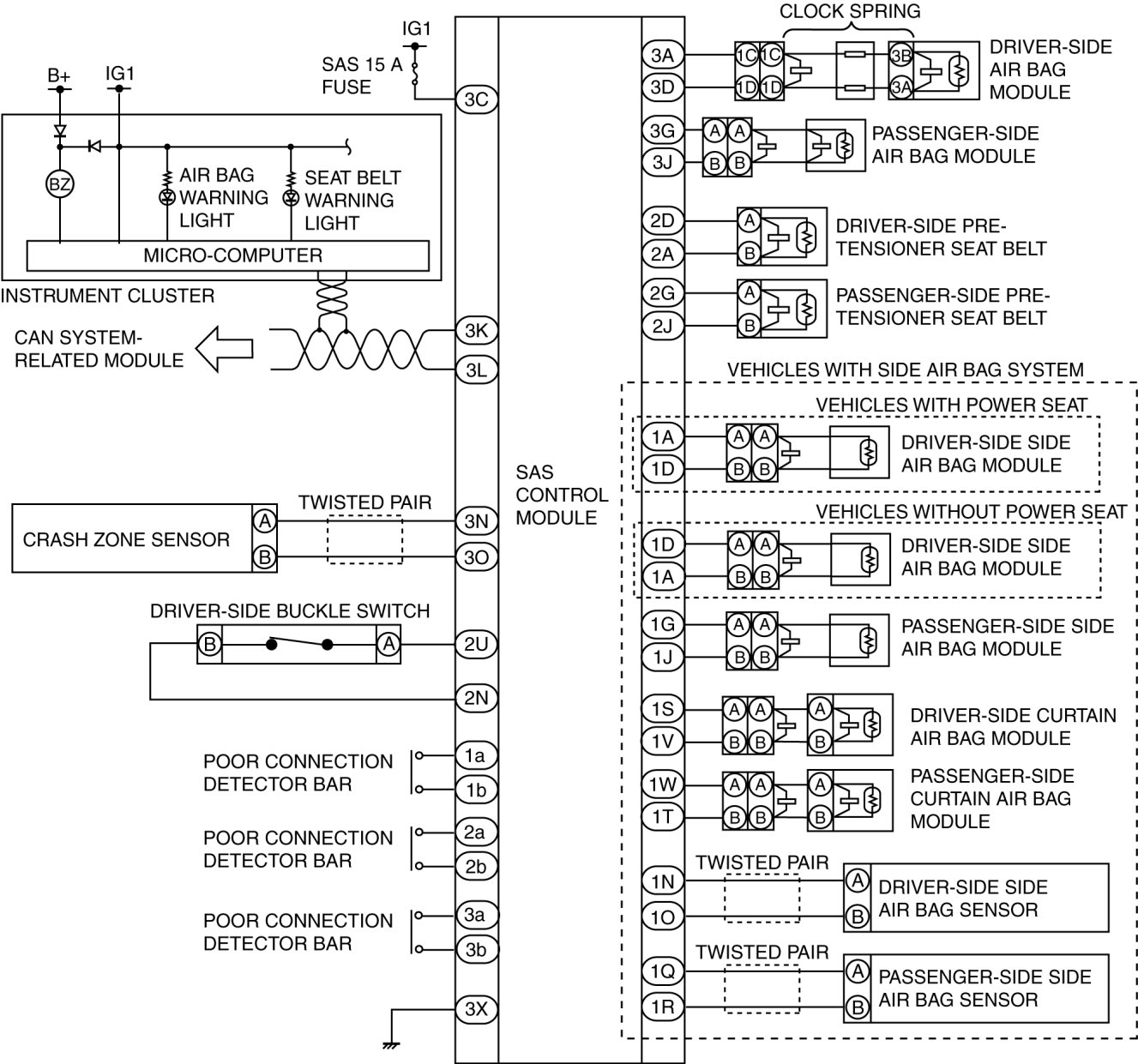

Vehicles Without DSC
