Two-Step Deployment Control System
Two-Step Deployment Control System

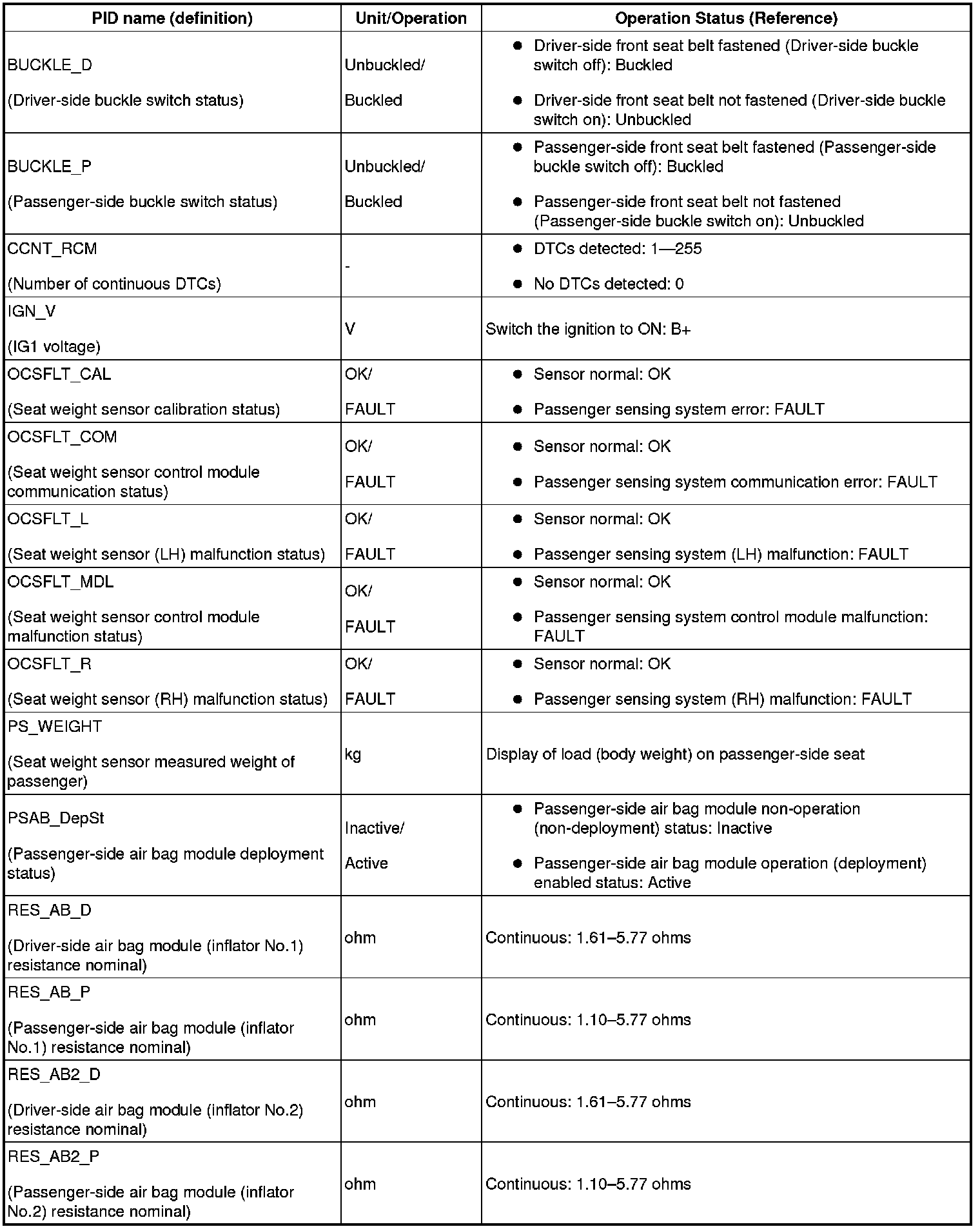

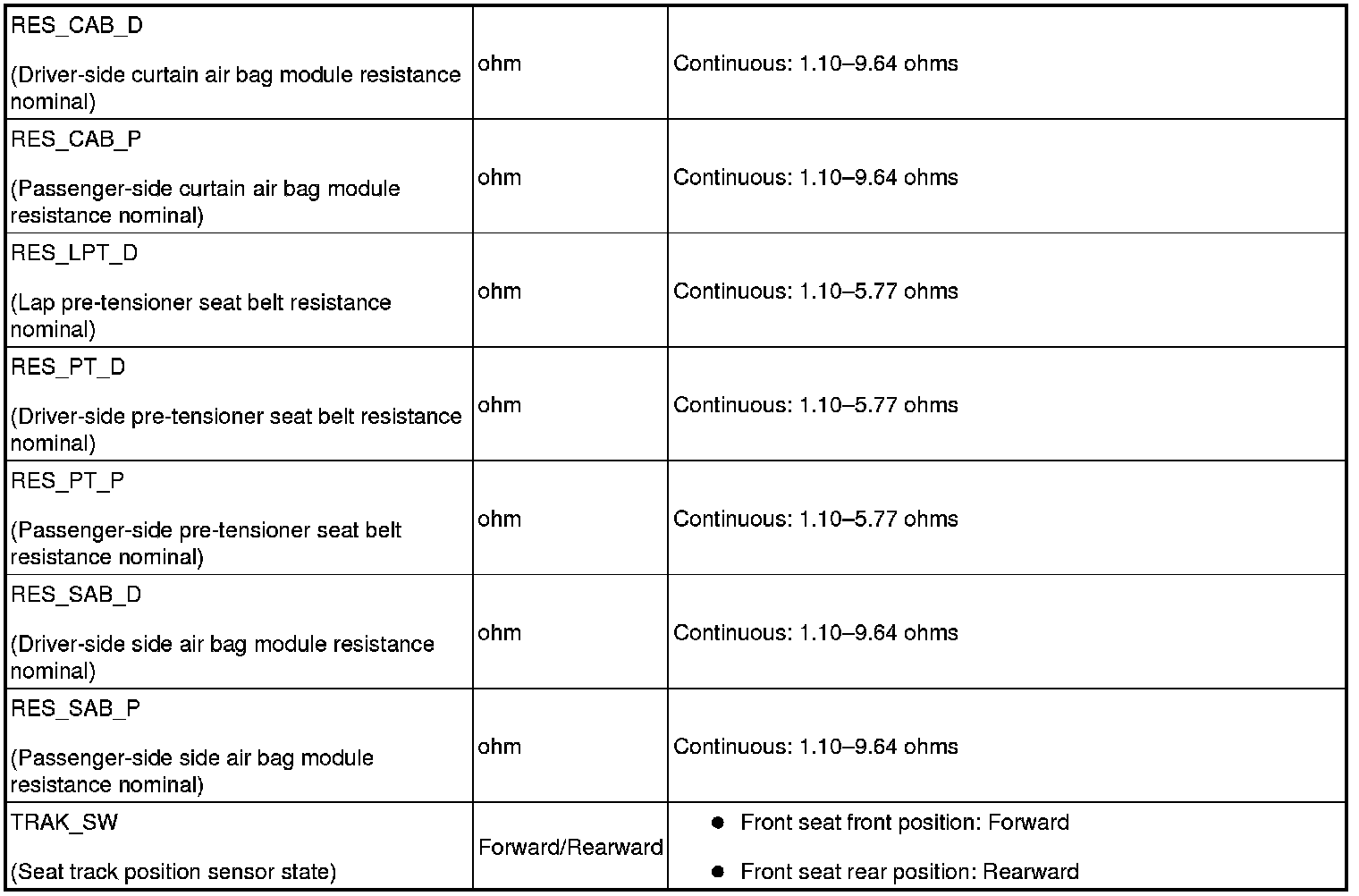

PID/DATA MONITOR TABLE [TWO-STEP DEPLOYMENT CONTROL SYSTEM]
