Standard Deployment Control System
Standard Deployment Control System

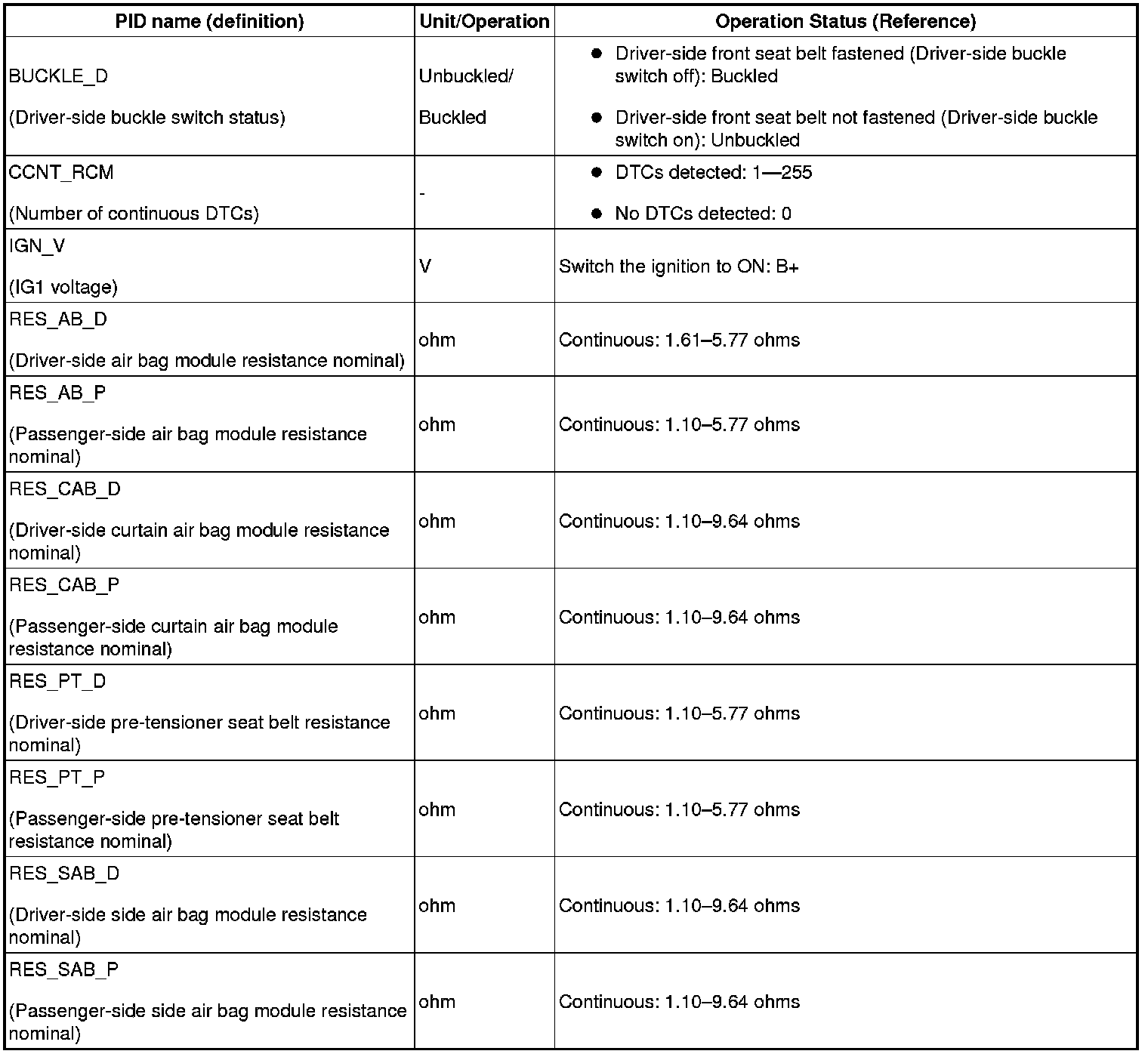

PID/DATA MONITOR TABLE [STANDARD DEPLOYMENT CONTROL SYSTEM]
