No. 2 Air Bag System Warning Light Illuminates Constantly

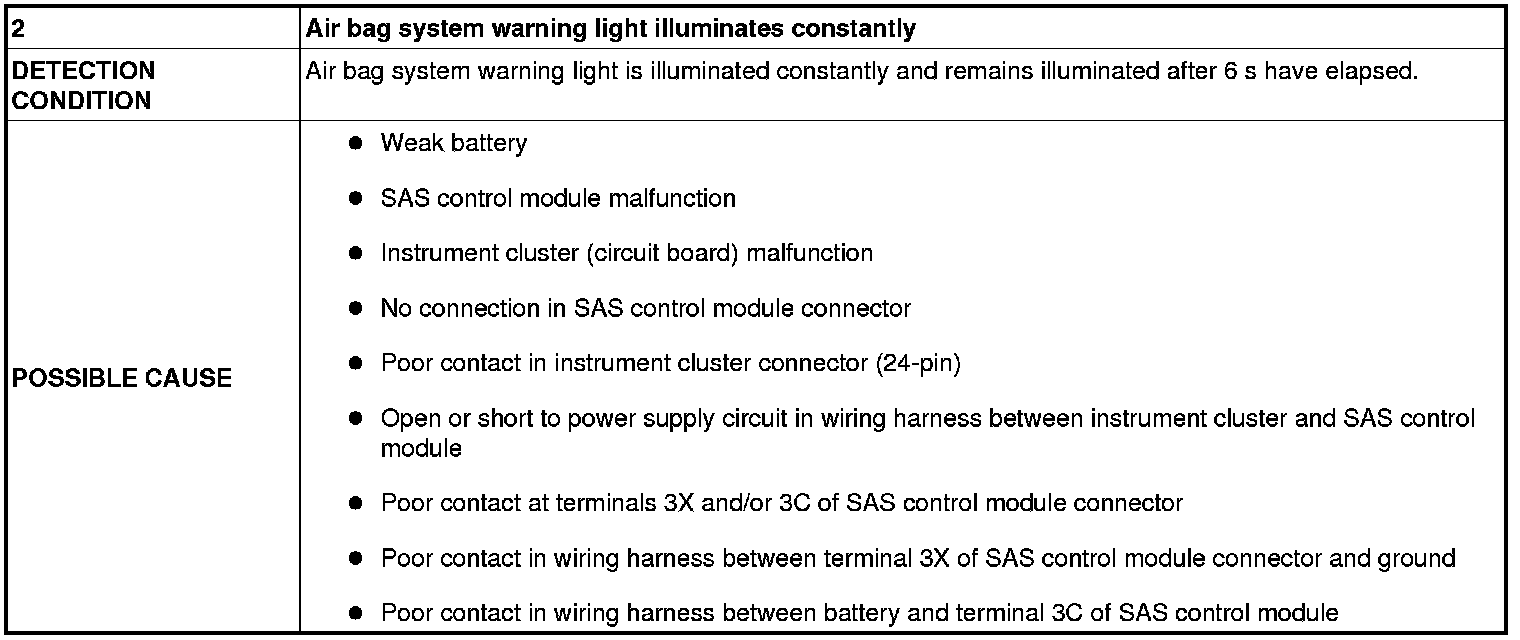

NO.2 AIR BAG SYSTEM WARNING LIGHT ILLUMINATES CONSTANTLY

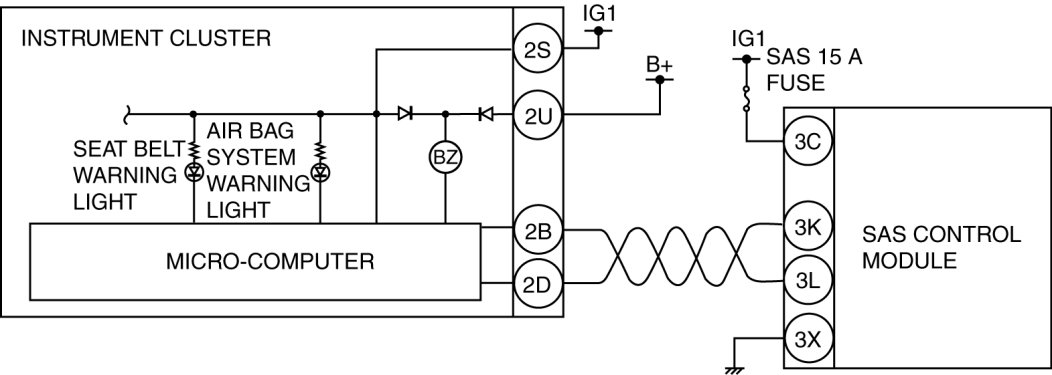

System Wiring Diagram

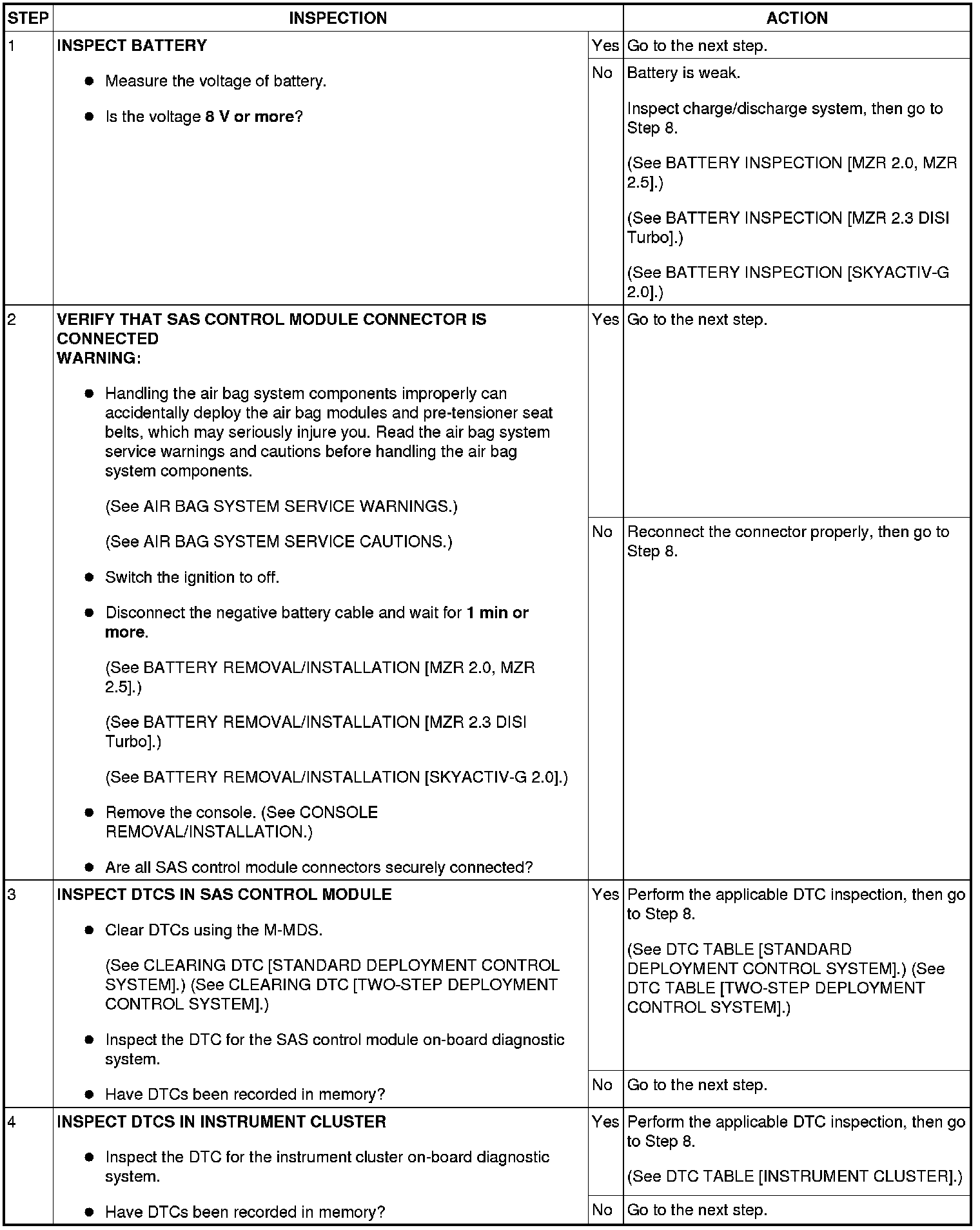

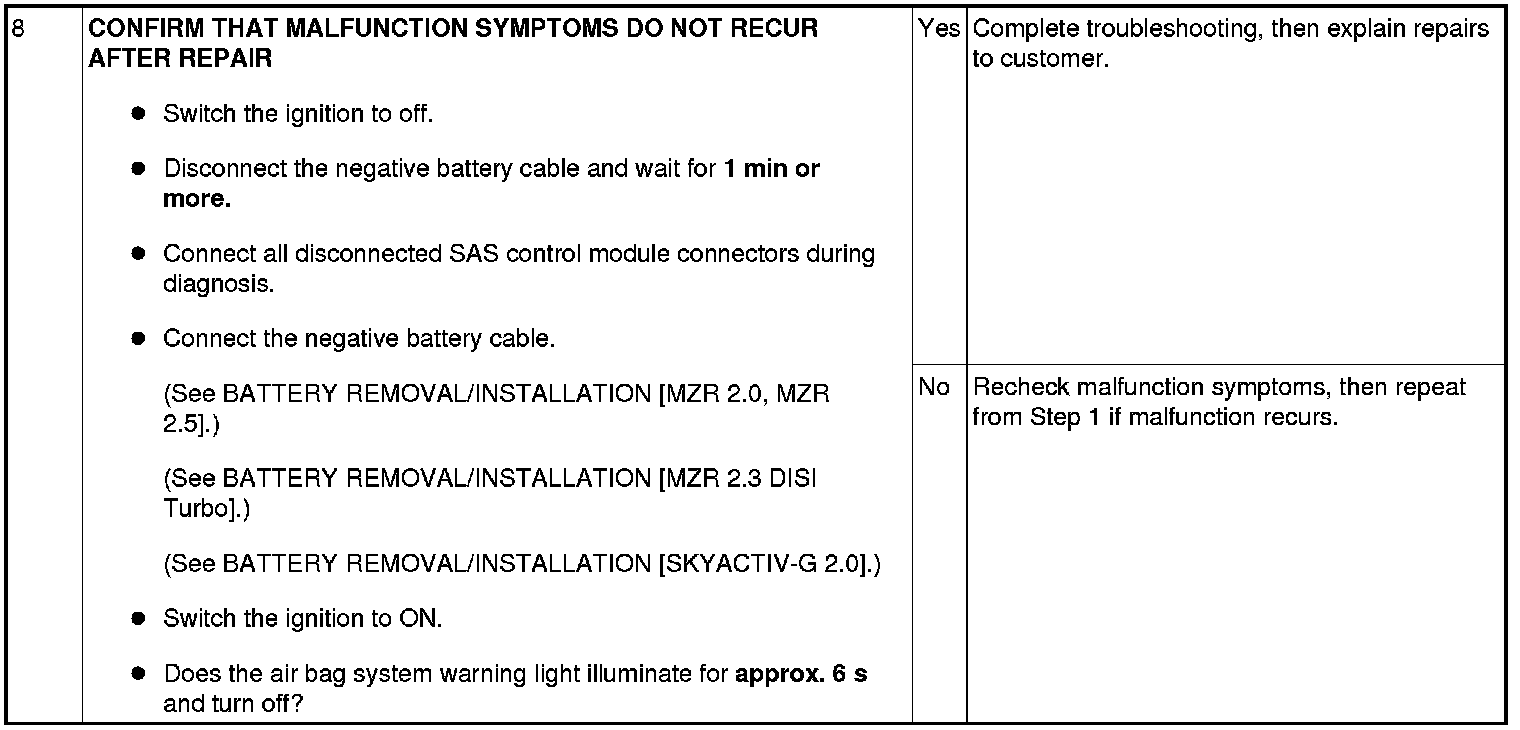

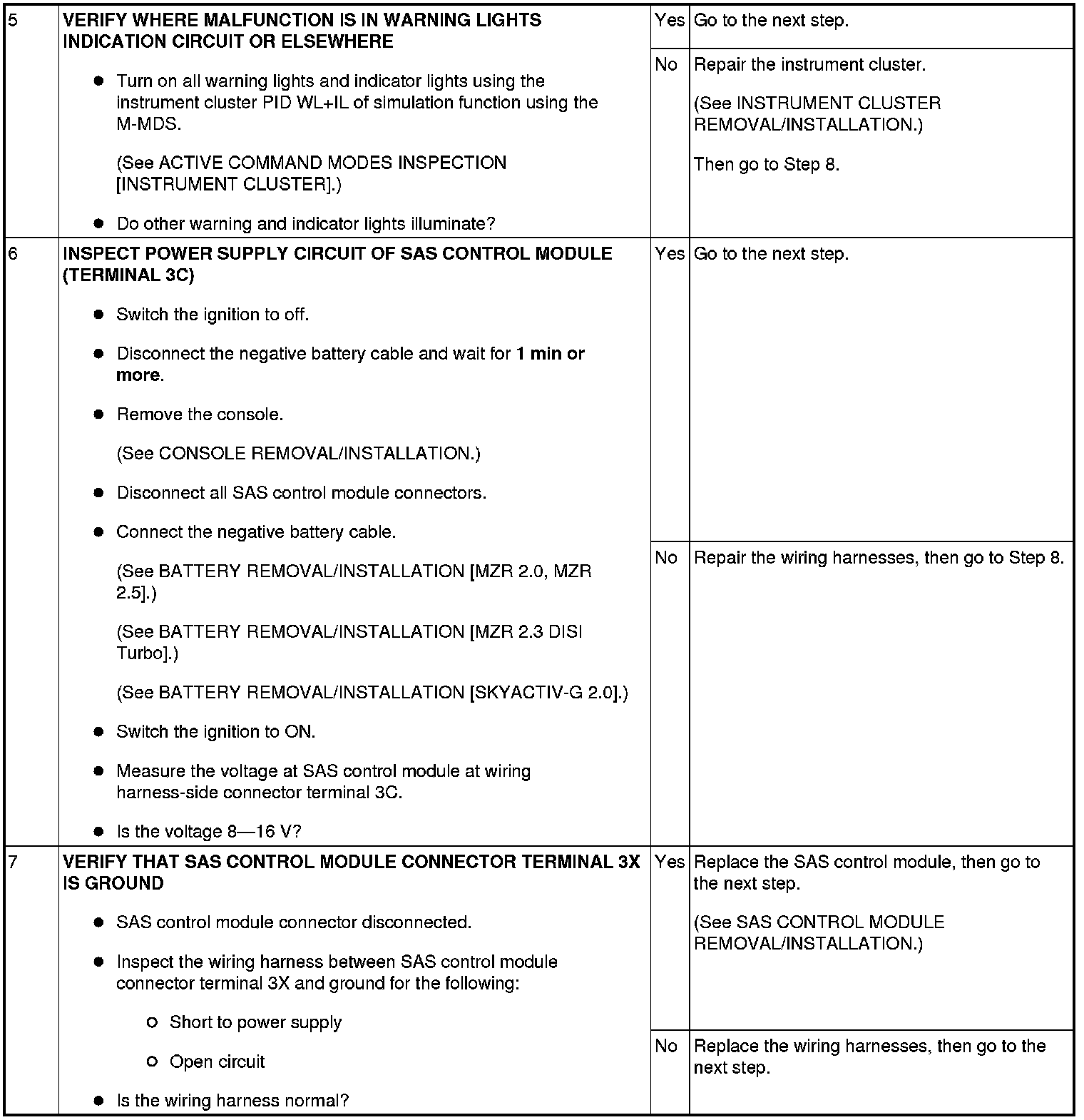

Diagnostic Procedure
