CLOCK SPRING INSPECTION [TWO-STEP DEPLOYMENT CONTROL SYSTEM]

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the driver-side air bag module. Two-Step Deployment Control System

3. Remove the steering wheel. Steering Wheel And Column Removal/Installation - Without Advanced Keyless Entry And Push Button Start System Steering Wheel And Column Removal/Installation - With Advanced Keyless Entry And Push Button Start System

4. Remove the column cover.

5. Remove the clock spring. Service and Repair

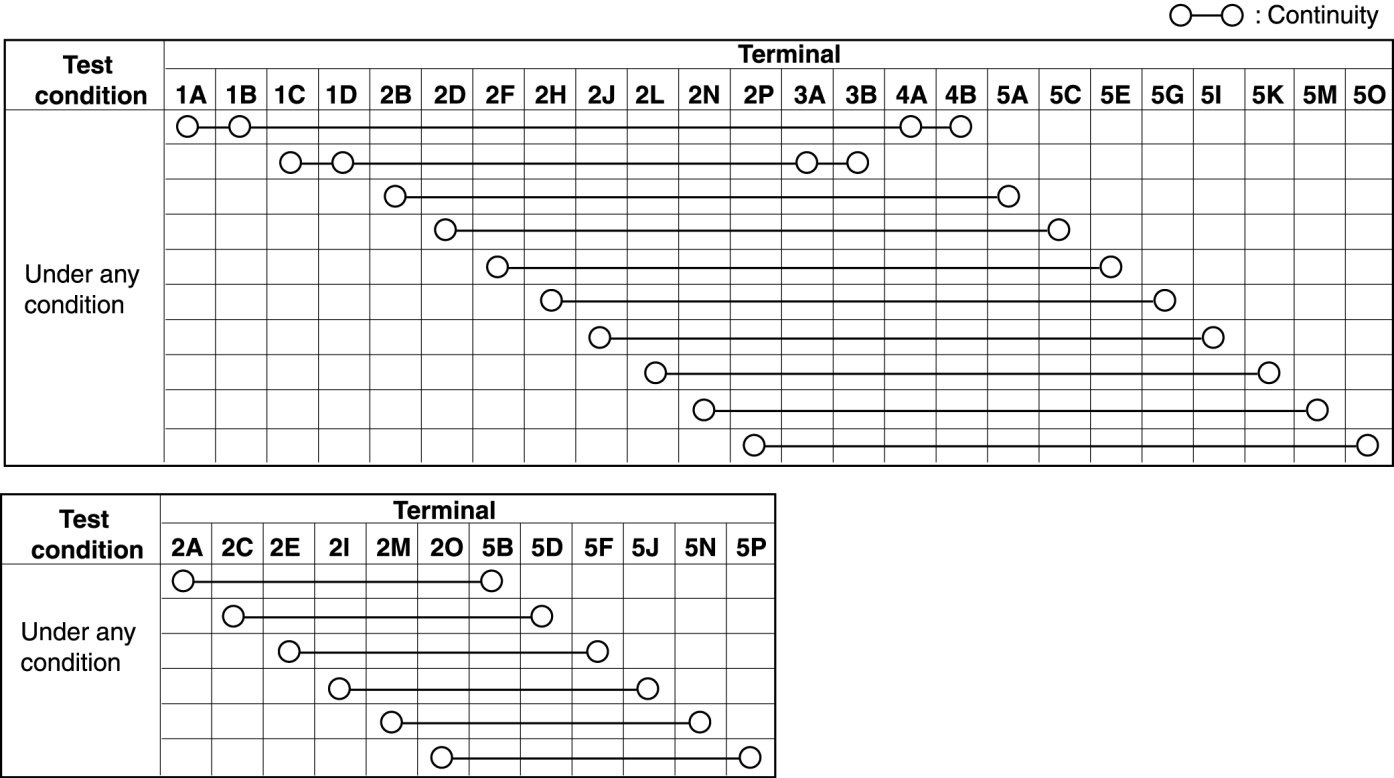

6. Verify that the continuity is as indicated in the table.

- If not as indicated in the table, replace the clock spring.

NOTE:
- When the vehicle-side connector for the clock spring is disconnected, terminals 1A, 1B, 1C and 1D are shorted to prevent unexpected operation (deployment) of the air bag module.

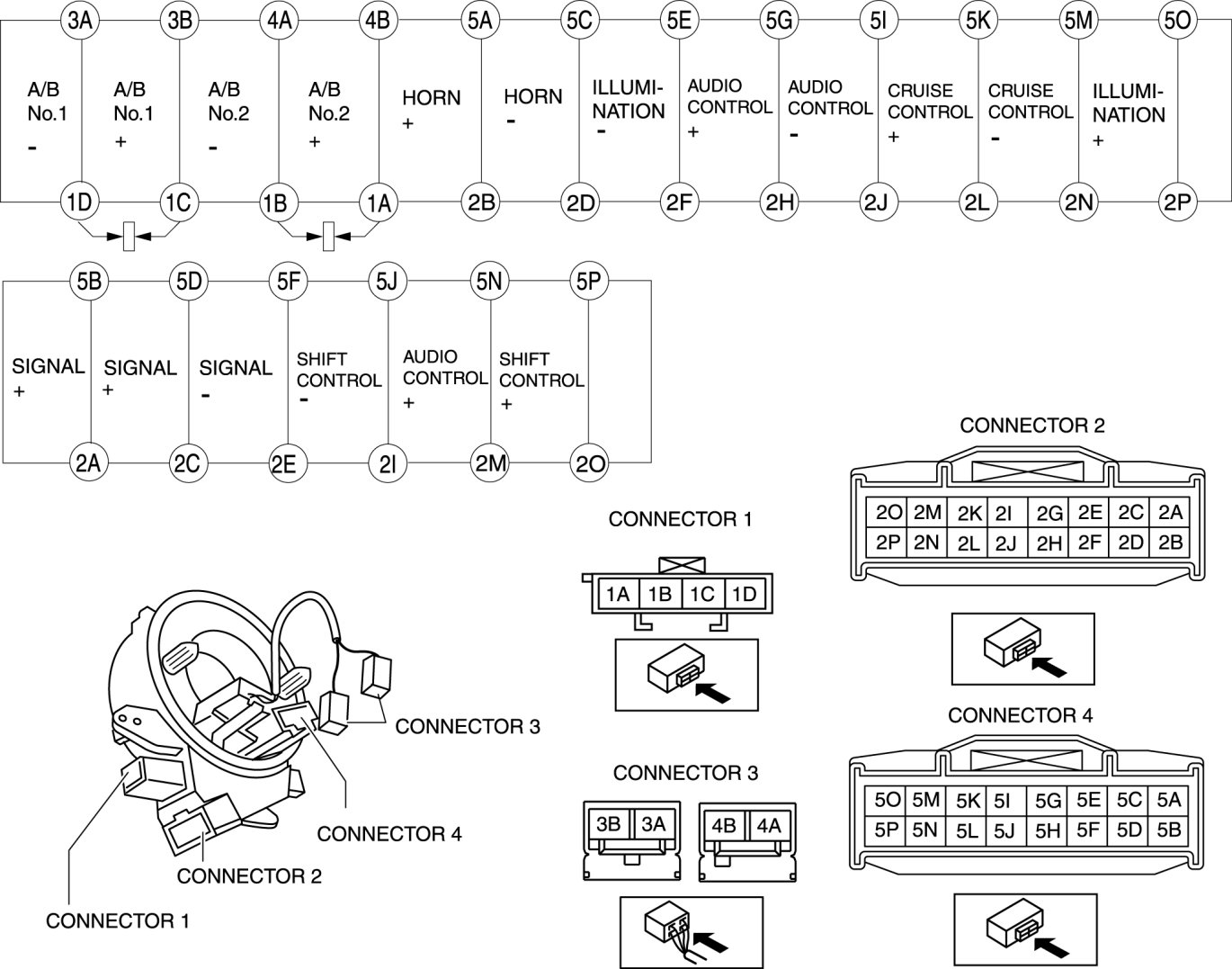

Vehicles with steering switch










Vehicles without steering switch
