PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM]

WARNING:
- Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module. Air Bag System Service Warnings Air Bag System Service Cautions

NOTE:
- When replacing the passenger-side air bag module after the deployment, replace it together with the mid-wiring harness.

- When installing the mid-wiring harness, install it along the vehicle wiring harness using bands or tape.

1. Switch the ignition to off.

2. Disconnect the negative battery cable and wait for 1 min or more. Removal and Replacement

3. Remove the following parts:
a. Passenger-side front scuff plate Front Scuff Plate Removal/Installation

b. Passenger-side front side trim Front Side Trim Removal/Installation

c. Dashboard under cover Dashboard Under Cover Removal/Installation

d. Glove compartment Service and Repair

e. Passenger-side lower panel Lower Panel Removal/Installation

f. SIRIUS satellite radio unit (with SIRIUS satellite radio system) Service and Repair

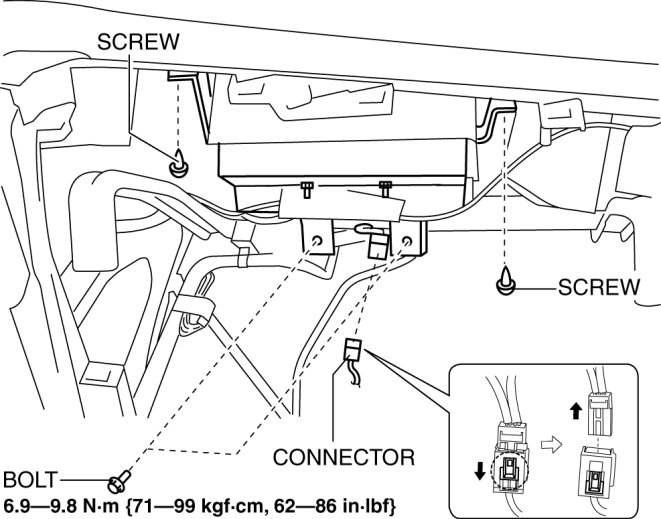

4. Disconnect the connector.






5. Remove the screws.

6. Remove the bolts.

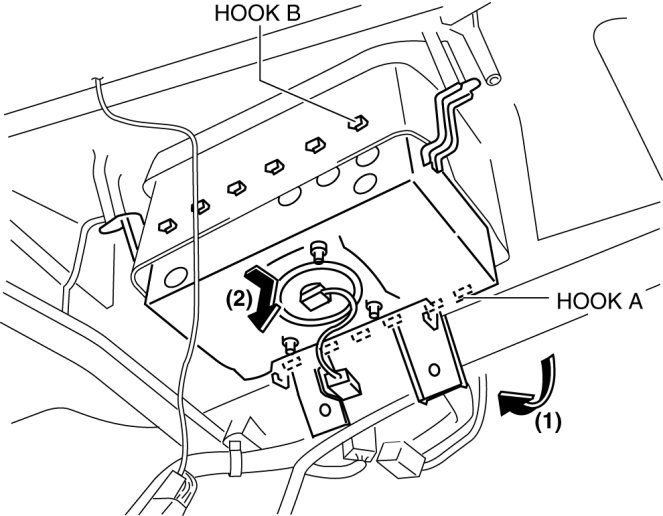

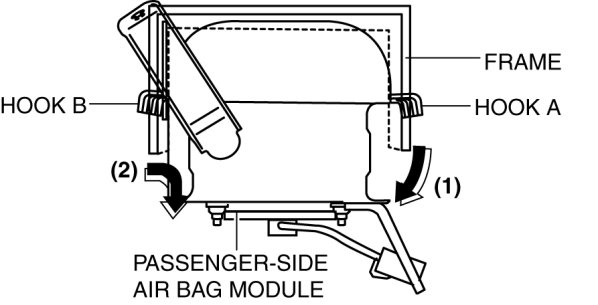

7. Pull the passenger-side air bag module in the direction of arrow (1) and detach the hook A from the instrument panel.











8. Pull the passenger-side air bag module in the direction of arrow (2) and detach the hook B from the instrument panel and remove it.

9. Install in the reverse order of removal.

10. Switch the ignition to ON.

11. Verify that the air bag system warning light illuminates for approx. 6 s and goes out.

- If the air bag system warning light does not operate, refer to the on-board diagnostic system (air bag system) and perform inspection of the system. Standard Deployment Control System
