Component Tests and General Diagnostics

BLIND SPOT MONITORING (BSM) CONTROL MODULE INSPECTION

1. Disconnect the negative battery cable.

2. Remove the rear combination light. Service and Repair

3. Remove the rear bumper. Removal and Replacement

4. Connect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

5. Measure the voltage at each terminal is as indicated in the Terminal Voltage Tables.

- If the voltage or continuity is not as specified in the Terminal Voltage Table, inspect the parts under "Inspection item (s)".

- If the system does not operate normally even though the related wiring harness and short cord are normal, replace the BSM control module.

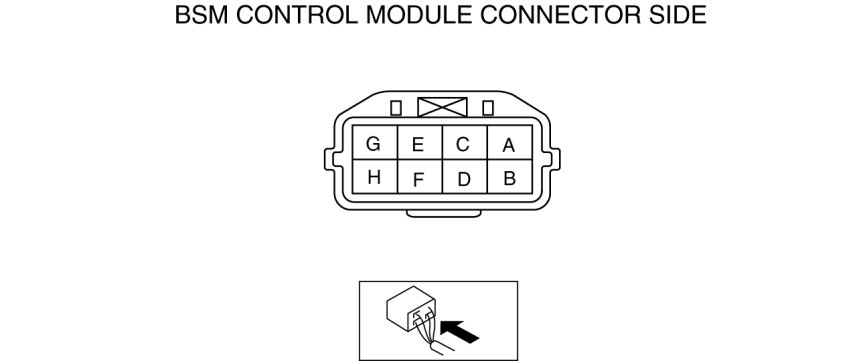

Terminal Voltage Table (Reference)

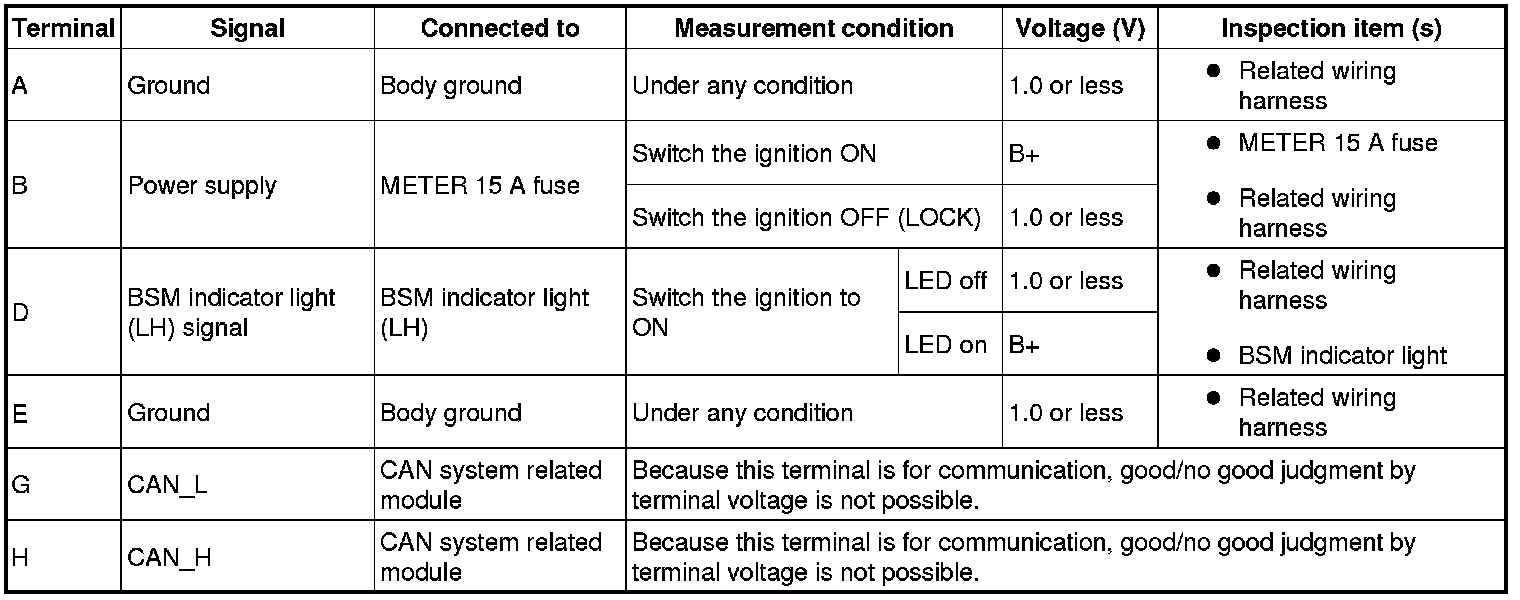

BSM control module (LH)

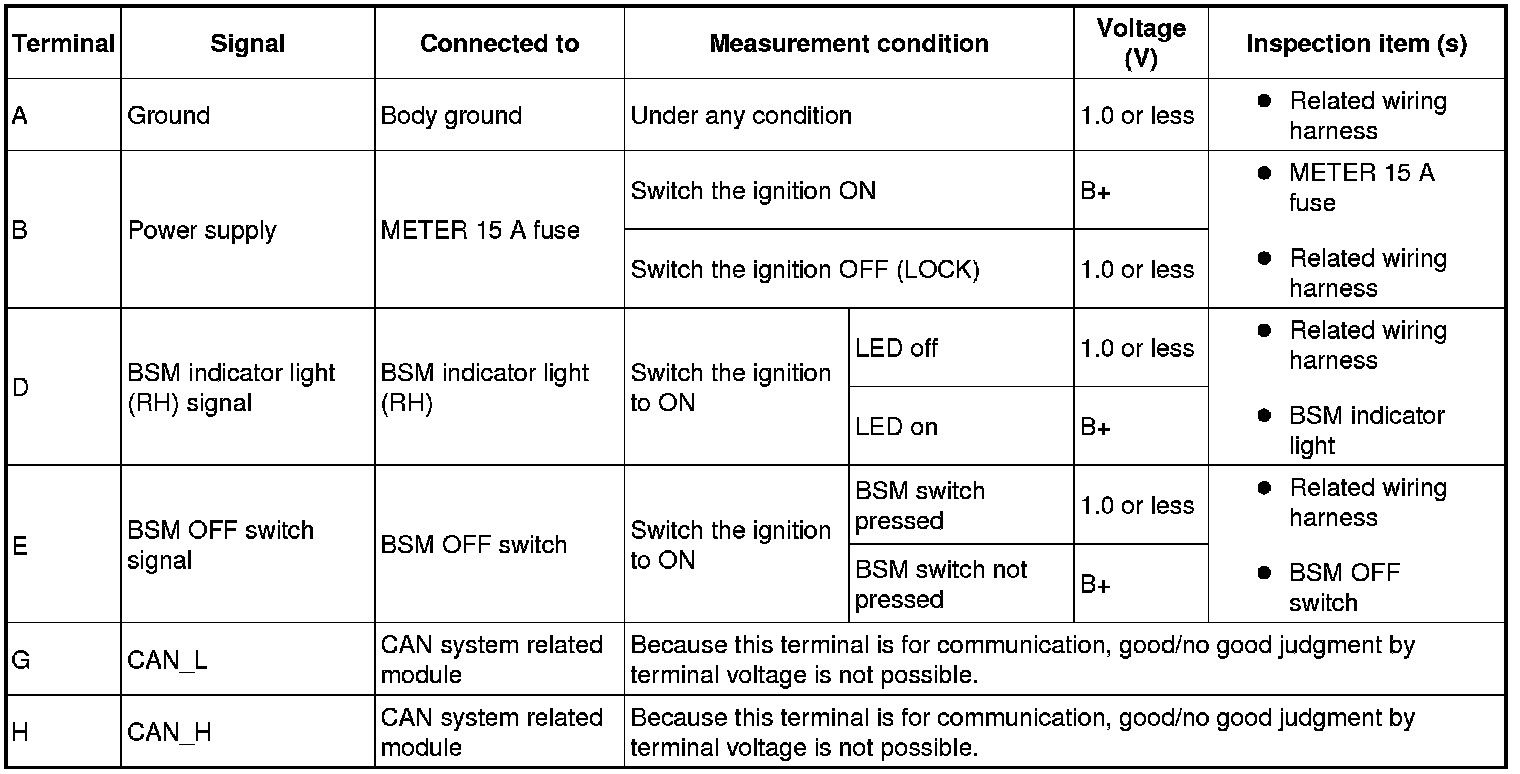

BSM control module (RH)
