Blind Spot Module: Service and Repair

BLIND SPOT MONITORING (BSM) CONTROL MODULE REMOVAL/INSTALLATION

CAUTION:
- If the BSM control modules are installed with the left and right modules reversed, a DTC will be displayed and system will enter the fail-safe function. Therefore, confirm that the left/right BSM control modules are installed correctly.

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the rear combination light. Service and Repair

3. Remove the rear bumper. Removal and Replacement

4. Pull the connector in the direction shown by the arrow (2) in the figure and remove it while pressing the tab in the direction shown by arrow (1).

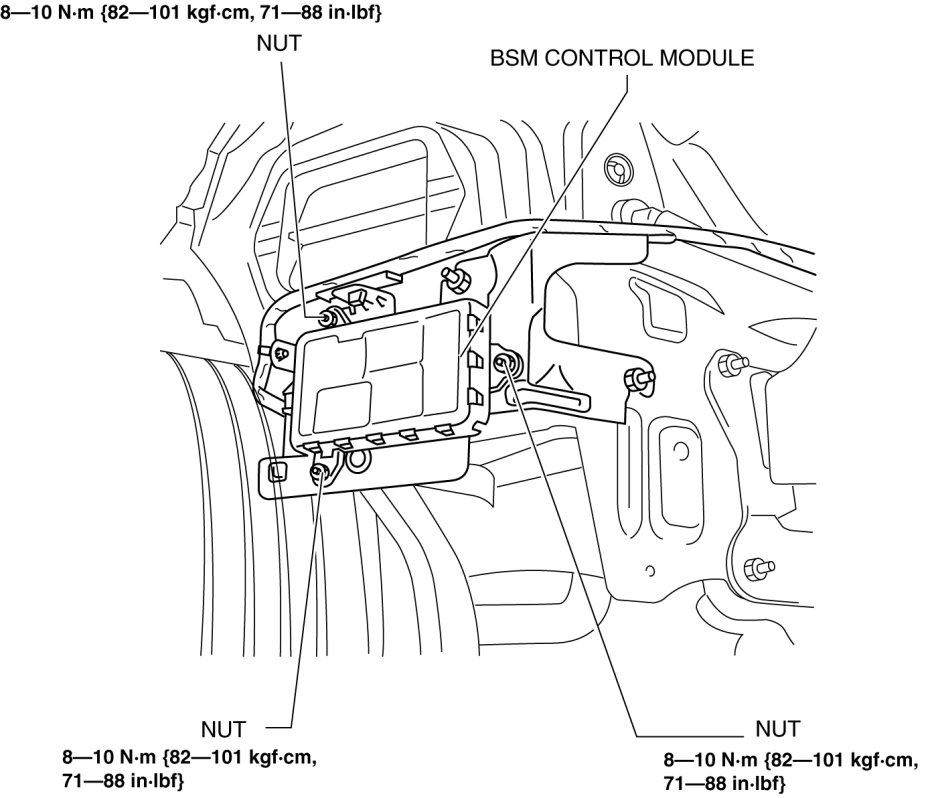

5. Remove the nuts.





6. Remove the BSM control module.

7. Install in the reverse order of removal.

8. Perform the blind spot monitoring radar test. Component Tests and General Diagnostics
