Variable Tumble Solenoid Valve Inspection

VARIABLE TUMBLE SOLENOID VALVE INSPECTION [MZR 2.0, MZR 2.5]

Airflow Inspection

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable. Removal and Replacement

3. Remove the variable tumble solenoid valve. Service and Repair

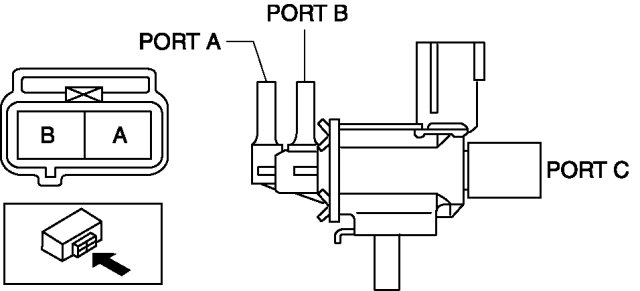

4. Inspect airflow between the ports under the following conditions.

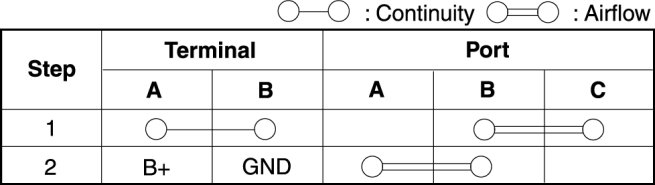

Step 1-Step 2:

- If not as specified, replace the variable tumble solenoid valve. Service and Repair
