Variable Intake Air Solenoid Valve Inspection

VARIABLE INTAKE AIR SOLENOID VALVE INSPECTION [MZR 2.0, MZR 2.5]

Airflow Inspection

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable. Removal and Replacement

3. Remove the variable intake air solenoid valve. Service and Repair

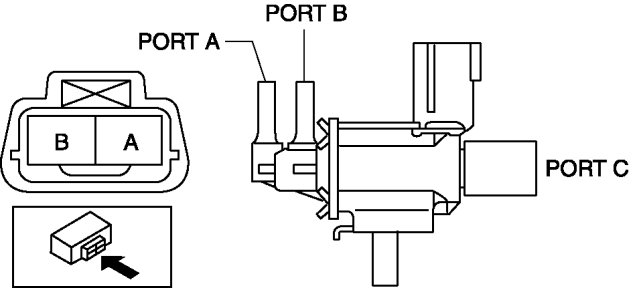

4. Inspect airflow between the ports under the following conditions.

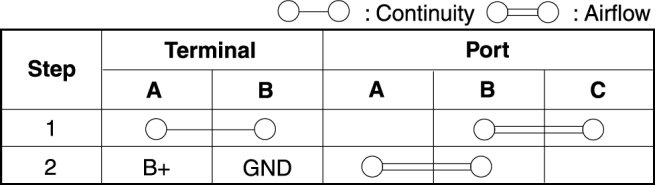

Step 1-Step 2:

- If not as specified, replace the variable intake air solenoid valve. Service and Repair
